Product Model
dpdm-q-6-5-s-pa
Selling Points

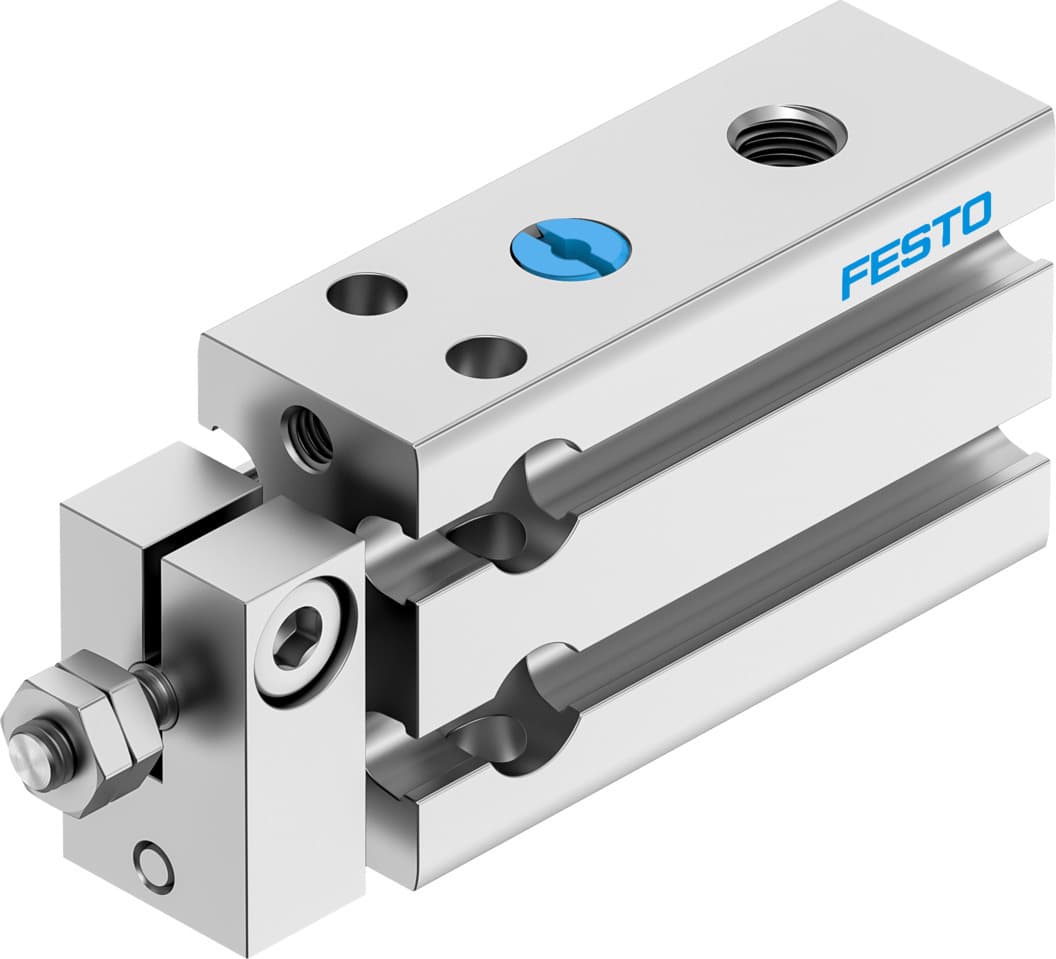

- 1The DPDM-Q-6-5-S-PA is a compact, single-acting pneumatic cylinder designed for precise positioning and control. It features a 6mm piston diameter and a 5mm stroke length, making it suitable for a variety of industrial applications.
- 2This cylinder includes elastic cushioning rings/plates at both ends to ensure smooth operation and reduce noise and vibration. It also offers anti-rotation protection via a guide rod with a yoke, ensuring stable performance.
- 3The DPDM-Q-6-5-S-PA operates with compressed air to ISO 8573-1:2010 standards and can be lubricated for enhanced performance. It is compatible with ambient temperatures ranging from -10°C to 80°C, making it versatile for different environments.
- 4The cylinder is constructed with high-quality materials, including an anodized wrought aluminum alloy housing, NBR/TPE-U(PU) static seals, and a high-alloy stainless steel piston rod. This ensures durability and resistance to corrosion.
- 5The DPDM-Q-6-5-S-PA supports position sensing via proximity switches, allowing for precise control and monitoring of the cylinder's movement. It is also RoHS compliant, meeting environmental standards for hazardous substances.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 5mm | Piston diameter | 6 mm |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Mode of operation | Pushing Single-acting | Structural design | Piston Piston rod Profile barrel |
Position sensing | For proximity sensor | Symbol | 00991732 |
Variants | Piston rod at one end | Protection against torsion/guide | Guide rod with yoke |
Operating pressure | 2.5bar 8bar | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B2-L | Cleanroom class | Class 6 according to ISO 14644-1 |
Ambient temperature | -10°C 80°C | Theoretical force at 6 bar | 13N |
Theoretical force at 6 bar, advancing | 13N | Moving mass at 0?mm stroke | 7.5g |
Additional moving mass per 10?mm stroke | 0.9g | Basic weight with 0?mm stroke | 25.5g |
Additional weight per 10?mm stroke | 6.3g | Type of mounting | Optionally: With through-hole With internal thread |
Pneumatic connection | M5 | Note on materials | RoHS-compliant |
Cover material | Wrought aluminum alloy | Seals material | NBR TPE-U(PU) |
Housing material | Wrought aluminum alloy, anodized | Piston rod material | High-alloy stainless steel |
Manufacturer ID | 4830970 |
Specifications may be subject to change without notice
