Product Model
dsbc-125-50-d3-ppva-n3
Selling Points

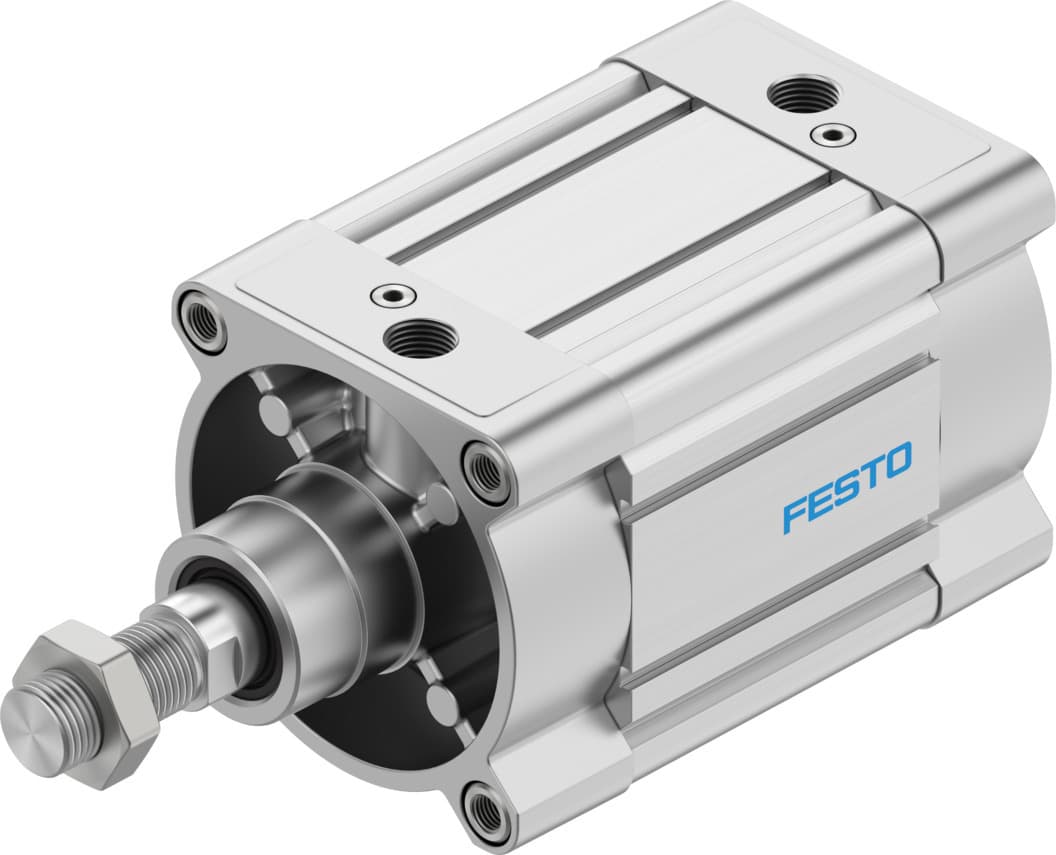

- 1The Festo DSBC-50-125-D3-PPVA-N3 is a double-acting ISO cylinder with a stroke of 125 mm and a piston diameter of 50 mm, ensuring precise and reliable operation in various industrial applications.
- 2This cylinder features pneumatic cushioning, adjustable at both ends, providing smooth and controlled movement, reducing wear and tear on the system.
- 3With a corrosion resistance class of 2 (moderate corrosion stress), the DSBC-50-125-D3-PPVA-N3 is suitable for use in environments where moderate corrosion is a concern, ensuring long-lasting performance.
- 4The cylinder operates within a wide temperature range of -20°C to 80°C and can be used with compressed air as per ISO 8573-1:2010 [7:4:4], making it versatile for different industrial settings.
- 5Designed to conform to the ISO 15552 standard, the DSBC-50-125-D3-PPVA-N3 offers standardized dimensions and mounting interfaces, ensuring easy integration into existing systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 50mm | Piston diameter | 125 mm |
Piston rod thread | M27x2 | Cushioning | Pneumatic cushioning, adjustable at both ends |
Mounting position | Any | Conforms to standard | ISO 15552 |
Piston rod end | External thread | Structural design | Piston Piston rod Profile barrel |
Position sensing | For proximity sensor | Symbol | 00991235 |
Variants | Piston rod at one end | Operating pressure | 0.2bar 10bar |
Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -20°C 80°C |
Impact energy in the end positions | 3.3J | Cushioning length | 45mm |
Theoretical force at 6 bar, retracting | 6881N | Theoretical force at 6 bar, advancing | 7363N |
Moving mass at 0?mm stroke | 2245g | Additional moving mass per 10?mm stroke | 63g |
Basic weight with 0?mm stroke | 6768g | Additional weight per 10?mm stroke | 247g |
Type of mounting | Optionally: With internal thread With accessories | Pneumatic connection | G1/2 |
Note on materials | RoHS-compliant | Cover material | Die-cast aluminum, coated |
Piston seal material | TPE-U(PU) | Material of piston | Wrought aluminum alloy |
Piston rod material | High-alloy steel | Piston rod wiper material | TPE-U(PU) |
Buffer seal material | TPE-U(PU) | Cushion piston material | POM |
Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized | Nut material | Steel, galvanized |
Rod wiper material | TPE-E | Material of bearing | Metal polymer compound |
Flange screws material | Steel, galvanized | Manufacturer ID | 8165680 |
Specifications may be subject to change without notice
