Product Model
dsbc-32-70-d3-ppsa-n3
Selling Points

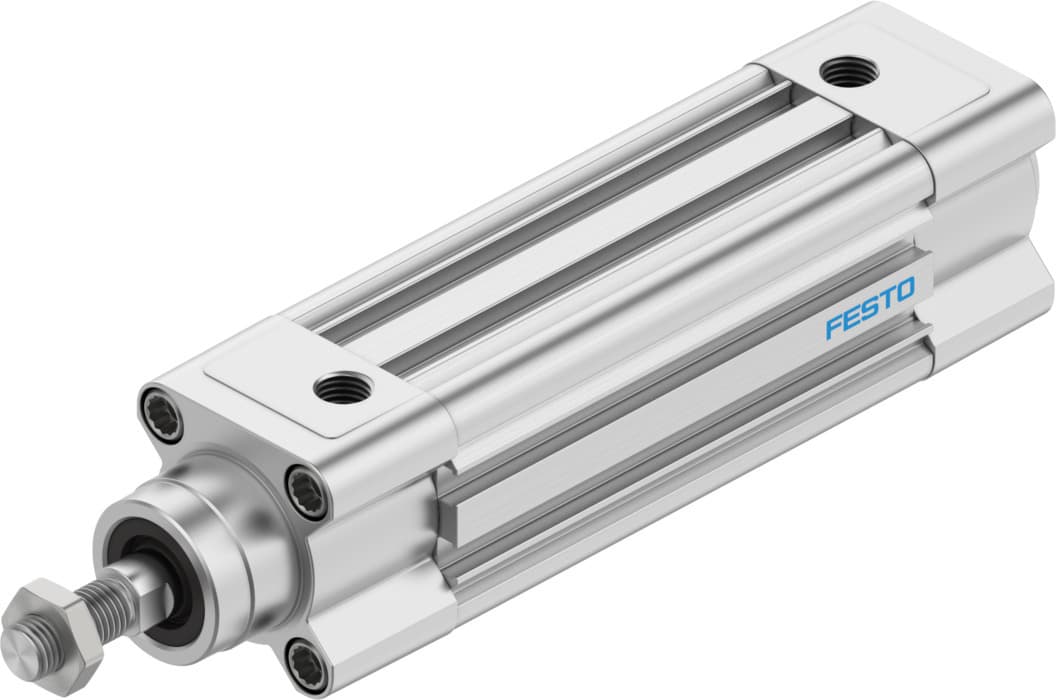

- 1The DSBC-32-70-D3-PPSA-N3 pneumatic cylinder from Festo offers self-adjusting pneumatic end-position cushioning, ensuring smooth and precise movements in various industrial applications.
- 2With a stroke length of 70 mm and a piston diameter of 32 mm, this cylinder is designed for high-precision operations, making it suitable for applications requiring precise control and movement.
- 3The cylinder conforms to the ISO 15552 standard, ensuring compatibility and reliability in a wide range of industrial settings. Its male thread piston rod allows for easy integration into complex systems.
- 4The DSBC-32-70-D3-PPSA-N3 supports double-acting operation and can be used with compressed air in accordance with ISO8573-1:2010, making it versatile for various pneumatic applications.
- 5This cylinder features sensor slots on three sides (D3 variant), enabling position sensing and force control through proximity sensors, enhancing the overall control and monitoring of the system.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 70mm | Piston diameter | 32 mm |
Piston rod thread | M10x1.25 | Cushioning | Self-adjusting pneumatic end-position cushioning |
Mounting position | Any | Conforms to standard | ISO 15552 |
Piston rod end | External thread | Structural design | Piston Piston rod Profile barrel |
Position sensing | For proximity sensor | Symbol | 00992970 |
Variants | Piston rod at one end | Operating pressure | 0.8bar 12bar |
Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -20°C 80°C |
Impact energy in the end positions | 0.4J | Cushioning length | 17mm |
Theoretical force at 6 bar, retracting | 415N | Theoretical force at 6 bar, advancing | 483N |
Moving mass at 0?mm stroke | 110g | Additional moving mass per 10?mm stroke | 9g |
Basic weight with 0?mm stroke | 480g | Additional weight per 10?mm stroke | 31g |
Type of mounting | Optionally: With internal thread With accessories | Pneumatic connection | G1/8 |
Note on materials | RoHS-compliant | Cover material | Die-cast aluminum, coated |
Piston seal material | TPE-U(PU) | Material of piston | Wrought aluminum alloy |
Piston rod material | High-alloy steel | Piston rod wiper material | TPE-U(PU) |
Buffer seal material | TPE-U(PU) | Cushion piston material | POM |
Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized | Nut material | Steel, galvanized |
Rod wiper material | TPE-E | Material of bearing | Metal polymer compound |
Flange screws material | Steel, galvanized | Manufacturer ID | 3659380 |
Specifications may be subject to change without notice
