Product Model
dsbc-40-150-d3-ppsa-n3
Selling Points

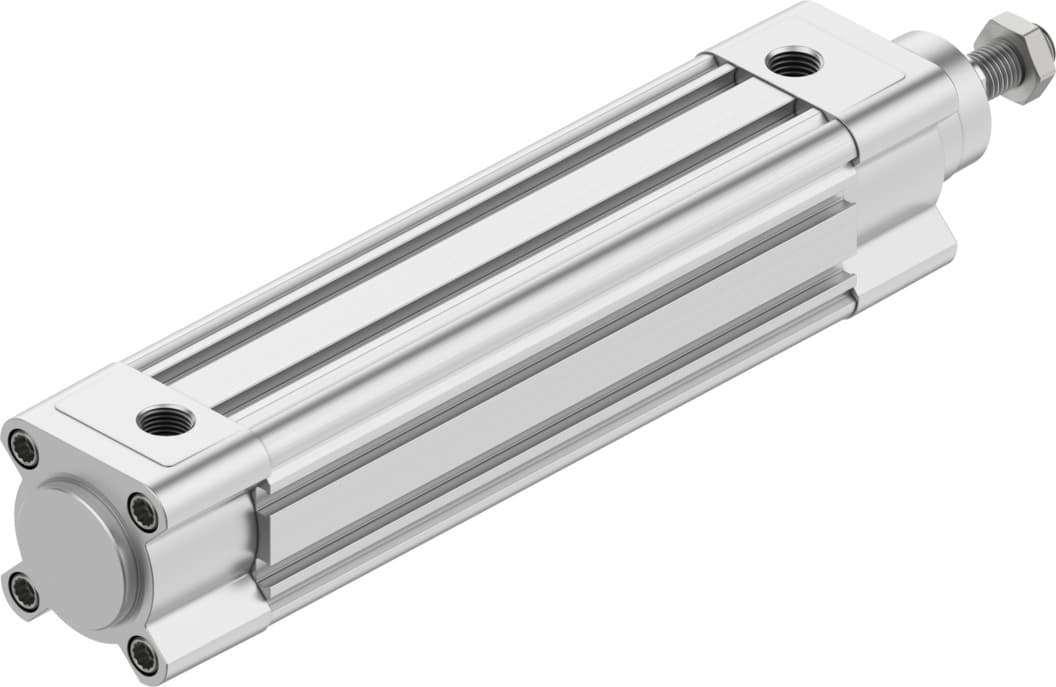

- 1The DSBC-40-150-D3-PPSA-N3 is a double-acting pneumatic cylinder with a stroke length of 150 mm and a piston diameter of 40 mm, designed for precise and reliable operation in various automation applications.
- 2This cylinder features self-adjusting pneumatic end-position cushioning, ensuring smooth and controlled movements, and is compatible with proximity sensors for position sensing.
- 3The DSBC-40-150-D3-PPSA-N3 operates within a moderate corrosion stress class (CRC 2) and can handle compressed air as per ISO 8573-1:2010 [7:4:4], making it suitable for a wide range of industrial environments.
- 4With a basic weight of 740 g and an additional moving mass of 16 g per 10 mm stroke, this cylinder offers efficient and balanced performance in various mounting positions, including any orientation.
- 5The DSBC-40-150-D3-PPSA-N3 is part of Festo's extensive range of standardized pneumatic cylinders, ensuring compatibility and ease of integration into existing automation systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 150mm | Piston diameter | 40 mm |
Piston rod thread | M12x1.25 | Cushioning | Self-adjusting pneumatic end-position cushioning |
Mounting position | Any | Conforms to standard | ISO 15552 |
Piston rod end | External thread | Structural design | Piston Piston rod Profile barrel |
Position sensing | For proximity sensor | Symbol | 00992970 |
Variants | Piston rod at one end | Operating pressure | 0.6bar 12bar |
Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -20°C 80°C |
Impact energy in the end positions | 0.7J | Cushioning length | 19mm |
Theoretical force at 6 bar, retracting | 633N | Theoretical force at 6 bar, advancing | 754N |
Moving mass at 0?mm stroke | 205g | Additional moving mass per 10?mm stroke | 16g |
Basic weight with 0?mm stroke | 768g | Additional weight per 10?mm stroke | 49g |
Type of mounting | Optionally: With internal thread With accessories | Pneumatic connection | G1/4 |
Note on materials | RoHS-compliant | Cover material | Die-cast aluminum, coated |
Piston seal material | TPE-U(PU) | Material of piston | Wrought aluminum alloy |
Piston rod material | High-alloy steel | Piston rod wiper material | TPE-U(PU) |
Buffer seal material | TPE-U(PU) | Cushion piston material | POM |
Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized | Nut material | Steel, galvanized |
Rod wiper material | TPE-E | Material of bearing | Metal polymer compound |
Flange screws material | Steel, galvanized | Manufacturer ID | 3660769 |
Specifications may be subject to change without notice
