Product Model
dsbc-40-250-d3-ppva-n3
Selling Points

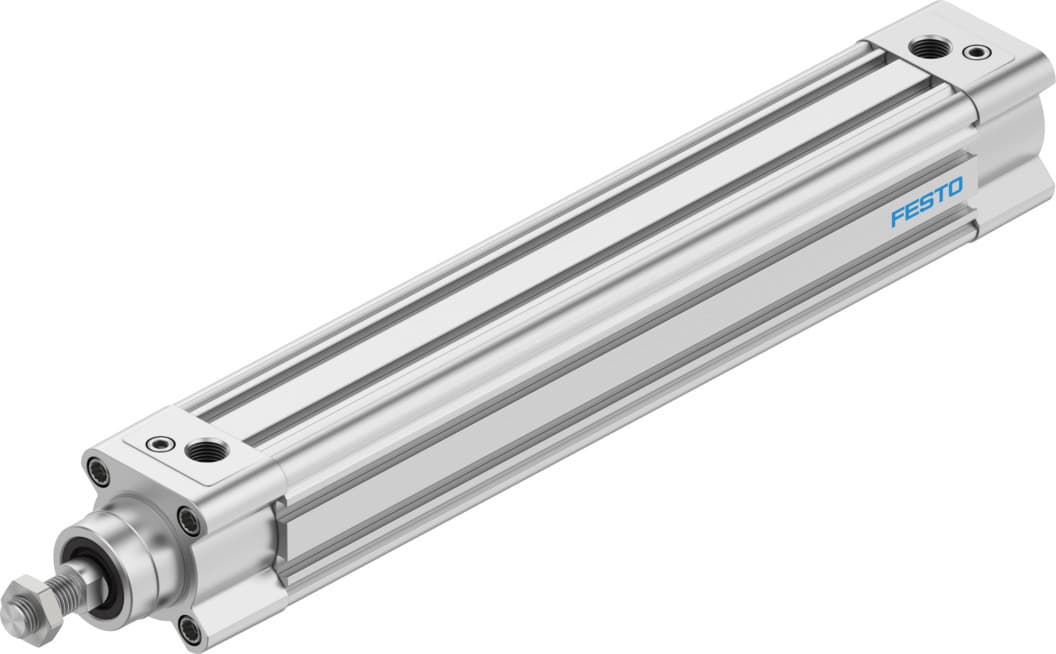

- 1The Festo DSBC-40-25-D3-PPVA-N3 is a double-acting pneumatic cylinder designed for high-performance applications, featuring a piston diameter of 40 mm and a stroke length of 25 mm.
- 2This cylinder is constructed from high-quality materials, including die-cast aluminum for the cover, high-alloy steel for the piston rod, and wrought aluminum alloy for the piston.
- 3The DSBC-40-25-D3-PPVA-N3 offers adjustable pneumatic cushioning at both ends, ensuring smooth operation and extended lifespan.
- 4With a maximum operating pressure of 0.06 to 1.2 MPa, this cylinder is suitable for a wide range of industrial automation tasks, including gripping and positioning.
- 5The Festo DSBC-40-25-D3-PPVA-N3 is part of the DSBC series, known for its standardized dimensions and mounting interfaces, making it easy to integrate into various systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 250mm | Piston diameter | 40 mm |
Piston rod thread | M12x1.25 | Cushioning | Pneumatic cushioning, adjustable at both ends |
Mounting position | Any | Conforms to standard | ISO 15552 |
Piston rod end | External thread | Structural design | Piston Piston rod Profile barrel |
Position sensing | For proximity sensor | Symbol | 00991235 |
Variants | Piston rod at one end | Operating pressure | 0.6bar 12bar |
Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -20°C 80°C |
Impact energy in the end positions | 0.7J | Cushioning length | 19mm |
Theoretical force at 6 bar, retracting | 633N | Theoretical force at 6 bar, advancing | 754N |
Moving mass at 0?mm stroke | 205g | Additional moving mass per 10?mm stroke | 16g |
Basic weight with 0?mm stroke | 768g | Additional weight per 10?mm stroke | 49g |
Type of mounting | Optionally: With internal thread With accessories | Pneumatic connection | G1/4 |
Note on materials | RoHS-compliant | Cover material | Die-cast aluminum, coated |
Piston seal material | TPE-U(PU) | Material of piston | Wrought aluminum alloy |
Piston rod material | High-alloy steel | Piston rod wiper material | TPE-U(PU) |
Buffer seal material | TPE-U(PU) | Cushion piston material | POM |
Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized | Nut material | Steel, galvanized |
Rod wiper material | TPE-E | Material of bearing | Metal polymer compound |
Flange screws material | Steel, galvanized | Manufacturer ID | 3660628 |
Specifications may be subject to change without notice
