Product Model

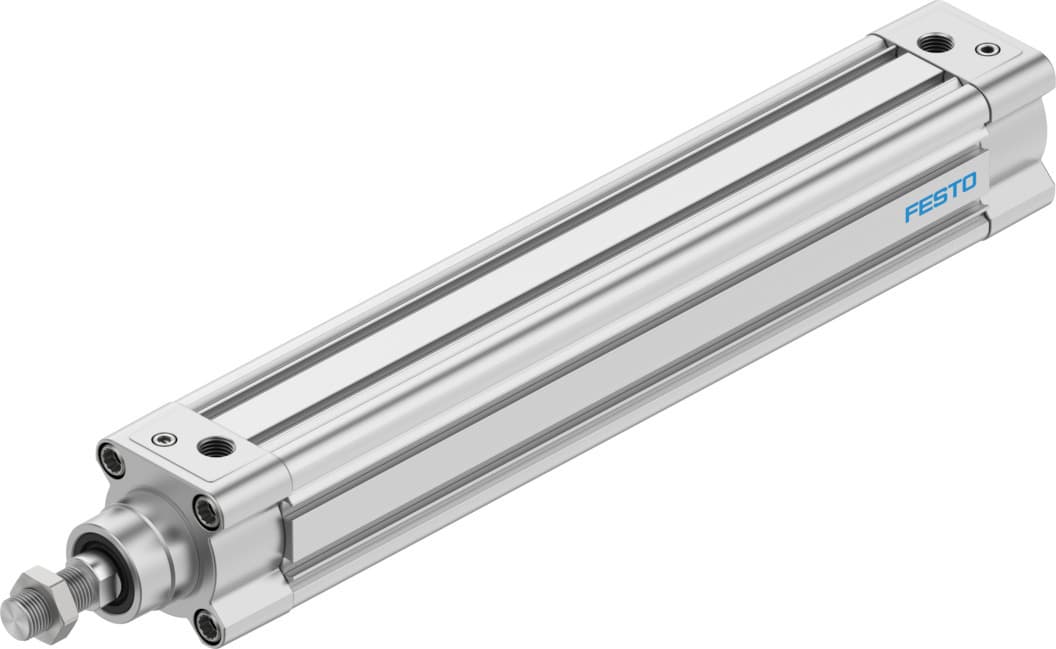

dsbc-50-300-d3-ppva-n3
Selling Points
- 1The DSBC-50-300-D3-PPVA-N3 offers pneumatic cushioning that is adjustable at both ends, ensuring smooth and controlled movements in your industrial applications.
- 2This cylinder operates double-acting, allowing for both extension and retraction strokes, making it versatile for a wide range of industrial tasks.
- 3The DSBC-50-300-D3-PPVA-N3 conforms to the ISO 15552 standard, ensuring compatibility and reliability in your pneumatic systems.
- 4With an operating pressure range of 0.04 MPa to 1.2 MPa (0.4 bar to 12 bar), this cylinder is designed to handle high-pressure applications with ease.
- 5The cylinder can be mounted via a female thread or with accessories, providing flexibility in installation and integration into your existing systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 300mm | Piston diameter | 50 mm |
Piston rod thread | M16x1.5 | Cushioning | Pneumatic cushioning, adjustable at both ends |
Mounting position | Any | Conforms to standard | ISO 15552 |
Piston rod end | External thread | Structural design | Piston Piston rod Profile barrel |
Position sensing | For proximity sensor | Symbol | 00991235 |
Variants | Piston rod at one end | Operating pressure | 0.4bar 12bar |
Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -20°C 80°C |
Impact energy in the end positions | 1J | Cushioning length | 22mm |
Theoretical force at 6 bar, retracting | 990N | Theoretical force at 6 bar, advancing | 1178N |
Moving mass at 0?mm stroke | 365g | Additional moving mass per 10?mm stroke | 25g |
Basic weight with 0?mm stroke | 1216g | Additional weight per 10?mm stroke | 78g |
Type of mounting | Optionally: With internal thread With accessories | Pneumatic connection | G1/4 |
Note on materials | RoHS-compliant | Cover material | Die-cast aluminum, coated |
Piston seal material | TPE-U(PU) | Material of piston | Wrought aluminum alloy |
Piston rod material | High-alloy steel | Piston rod wiper material | TPE-U(PU) |
Buffer seal material | TPE-U(PU) | Cushion piston material | POM |
Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized | Nut material | Steel, galvanized |
Rod wiper material | TPE-E | Material of bearing | Metal polymer compound |
Flange screws material | Steel, galvanized | Manufacturer ID | 3659481 |
Specifications may be subject to change without notice
