Product Model
dsbc-63-70-d3-ppva-n3
Selling Points

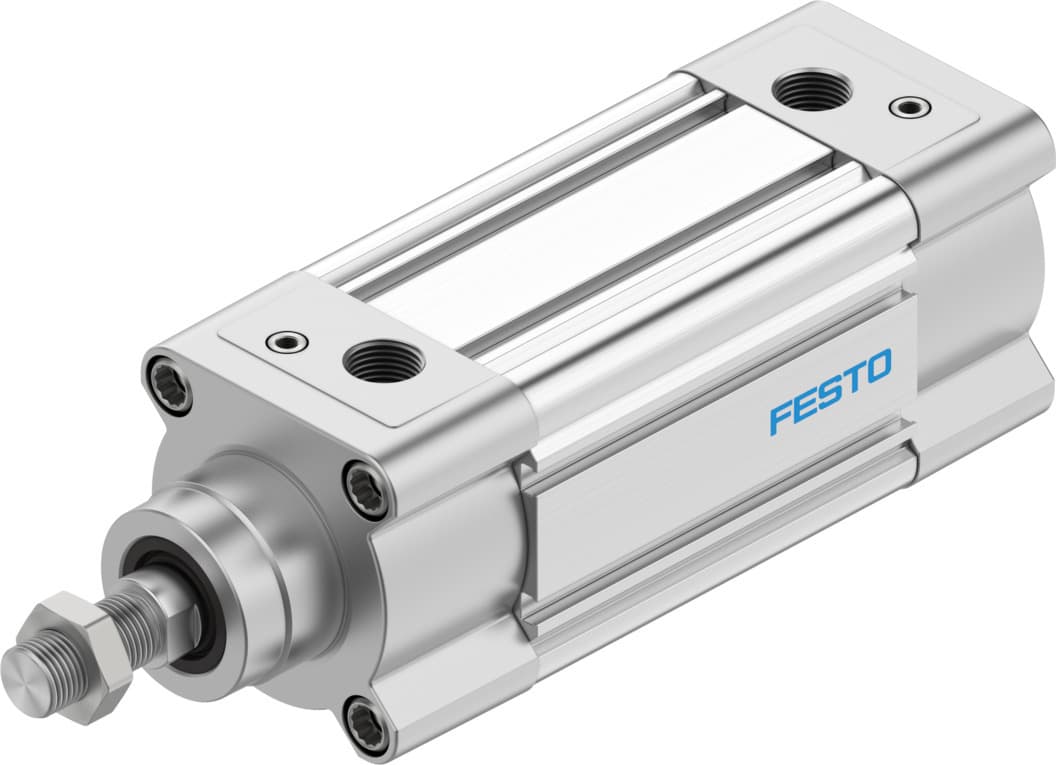

- 1The Festo DSBC-63-70-D3-PPVA-N3 ISO cylinder comes with self-adjusting pneumatic end-position cushioning, ensuring optimal performance in various load and speed conditions.
- 2This cylinder conforms to the ISO 15552 standard, providing a standardized profile with two sensor slots for precise position sensing.
- 3The DSBC-63-70-D3-PPVA-N3 offers optional mounting positions, allowing for flexible installation in various industrial settings.
- 4Constructed with high-quality materials, this cylinder ensures durability and reliability in demanding applications, such as manufacturing lithium-ion batteries.
- 5With a double-acting mode of operation and an operating pressure range of 0.04 MPa to 1.2 MPa, this cylinder provides efficient performance in compressed air environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 70mm | Piston diameter | 63 mm |
Piston rod thread | M16x1.5 | Cushioning | Pneumatic cushioning, adjustable at both ends |
Mounting position | Any | Conforms to standard | ISO 15552 |
Piston rod end | External thread | Structural design | Piston Piston rod Profile barrel |
Position sensing | For proximity sensor | Symbol | 00991235 |
Variants | Piston rod at one end | Operating pressure | 0.4bar 12bar |
Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -20°C 80°C |
Impact energy in the end positions | 1.3J | Cushioning length | 22mm |
Theoretical force at 6 bar, retracting | 1682N | Theoretical force at 6 bar, advancing | 1870N |
Moving mass at 0?mm stroke | 430g | Additional moving mass per 10?mm stroke | 25g |
Basic weight with 0?mm stroke | 1774g | Additional weight per 10?mm stroke | 92g |
Type of mounting | Optionally: With internal thread With accessories | Pneumatic connection | G3/8 |
Note on materials | RoHS-compliant | Cover material | Die-cast aluminum, coated |
Piston seal material | TPE-U(PU) | Material of piston | Wrought aluminum alloy |
Piston rod material | High-alloy steel | Piston rod wiper material | TPE-U(PU) |
Buffer seal material | TPE-U(PU) | Cushion piston material | POM |
Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized | Nut material | Steel, galvanized |
Rod wiper material | TPE-E | Material of bearing | Metal polymer compound |
Flange screws material | Steel, galvanized | Manufacturer ID | 3657865 |
Specifications may be subject to change without notice
