Product Model
dsbc-80-100-d3-ppva-n3
Selling Points

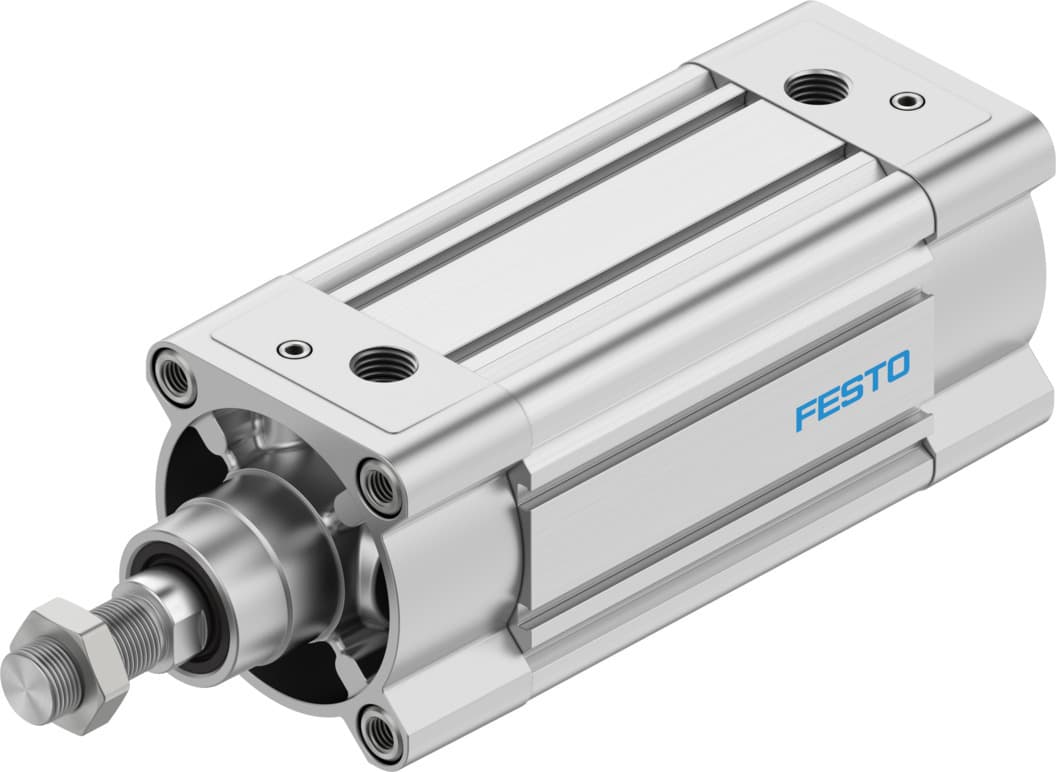

- 1The Festo DSBC-80-100-PPVA-N3 pneumatic cylinder is built with high-alloy steel for the piston rod and smooth-anodized wrought aluminum alloy for the cylinder barrel, ensuring durability and reliability.
- 2This cylinder conforms to the ISO 15552 standard, providing standardized dimensions and mounting interfaces that simplify integration into your existing systems.
- 3The cylinder features pneumatic cushioning that is adjustable at both ends, allowing for precise control over the movement and reducing wear and tear.
- 4With a stroke of 100 mm and a piston diameter of 80 mm, this cylinder is suitable for a wide range of industrial applications, including linear drives and multi-position movements.
- 5The DSBC-80-100-PPVA-N3 cylinder is designed with a male thread on the piston rod end and supports double-acting operation with compressed air to ISO 8573-1:2010 standards, ensuring reliable performance in various environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 100mm | Piston diameter | 80 mm |
Piston rod thread | M20x1.5 | Cushioning | Pneumatic cushioning, adjustable at both ends |
Mounting position | Any | Conforms to standard | ISO 15552 |
Piston rod end | External thread | Structural design | Piston Piston rod Profile barrel |
Position sensing | For proximity sensor | Symbol | 00991235 |
Variants | Piston rod at one end | Operating pressure | 0.4bar 12bar |
Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -20°C 80°C |
Impact energy in the end positions | 1.8J | Cushioning length | 31mm |
Theoretical force at 6 bar, retracting | 2721N | Theoretical force at 6 bar, advancing | 3016N |
Moving mass at 0?mm stroke | 810g | Additional moving mass per 10?mm stroke | 39g |
Basic weight with 0?mm stroke | 2720g | Additional weight per 10?mm stroke | 143g |
Type of mounting | Optionally: With internal thread With accessories | Pneumatic connection | G3/8 |
Note on materials | RoHS-compliant | Cover material | Die-cast aluminum, coated |
Piston seal material | TPE-U(PU) | Material of piston | Wrought aluminum alloy |
Piston rod material | High-alloy steel | Piston rod wiper material | TPE-U(PU) |
Buffer seal material | TPE-U(PU) | Cushion piston material | POM |
Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized | Nut material | Steel, galvanized |
Rod wiper material | TPE-E | Material of bearing | Metal polymer compound |
Flange screws material | Steel, galvanized | Manufacturer ID | 3656639 |
Specifications may be subject to change without notice
