Product Model
dsbc-80-160-d3-ppva-n3
Selling Points

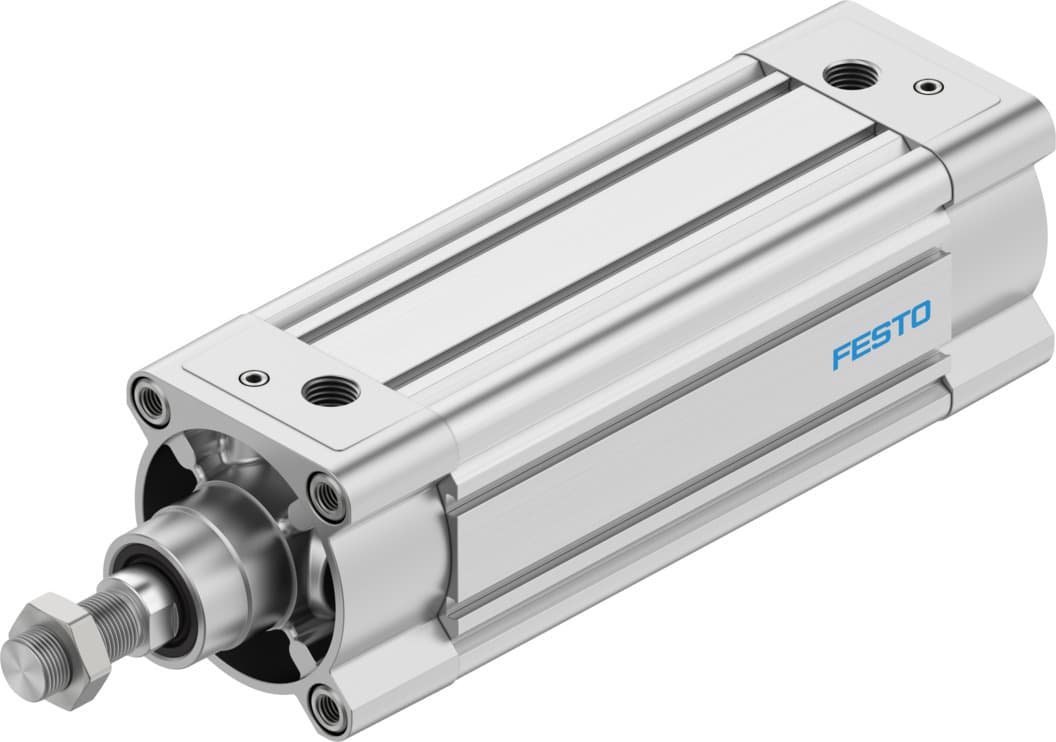

- 1The Festo DSBC-80-160-D3-PPVA-N3 cylinder conforms to ISO 15552 standards, ensuring compatibility and reliability in industrial automation systems.
- 2This cylinder operates in double-acting mode, allowing for both extension and retraction, enhancing versatility in various applications.
- 3The DSBC series offers a wide range of mounting accessories, making it easy to install in various types of installations.
- 4The cylinder features adjustable pneumatic cushioning at both ends, providing smooth operation and reducing wear and tear.
- 5Equipped with sensor slots on three profile sides, this cylinder supports position sensing via proximity switch, enhancing precision and control in automation processes.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 160mm | Piston diameter | 80 mm |
Piston rod thread | M20x1.5 | Cushioning | Pneumatic cushioning, adjustable at both ends |
Mounting position | Any | Conforms to standard | ISO 15552 |
Piston rod end | External thread | Structural design | Piston Piston rod Profile barrel |
Position sensing | For proximity sensor | Symbol | 00991235 |
Variants | Piston rod at one end | Operating pressure | 0.4bar 12bar |
Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -20°C 80°C |
Impact energy in the end positions | 1.8J | Cushioning length | 31mm |
Theoretical force at 6 bar, retracting | 2721N | Theoretical force at 6 bar, advancing | 3016N |
Moving mass at 0?mm stroke | 810g | Additional moving mass per 10?mm stroke | 39g |
Basic weight with 0?mm stroke | 2720g | Additional weight per 10?mm stroke | 143g |
Type of mounting | Optionally: With internal thread With accessories | Pneumatic connection | G3/8 |
Note on materials | RoHS-compliant | Cover material | Die-cast aluminum, coated |
Piston seal material | TPE-U(PU) | Material of piston | Wrought aluminum alloy |
Piston rod material | High-alloy steel | Piston rod wiper material | TPE-U(PU) |
Buffer seal material | TPE-U(PU) | Cushion piston material | POM |
Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized | Nut material | Steel, galvanized |
Rod wiper material | TPE-E | Material of bearing | Metal polymer compound |
Flange screws material | Steel, galvanized | Manufacturer ID | 3656642 |
Specifications may be subject to change without notice
