Product Model

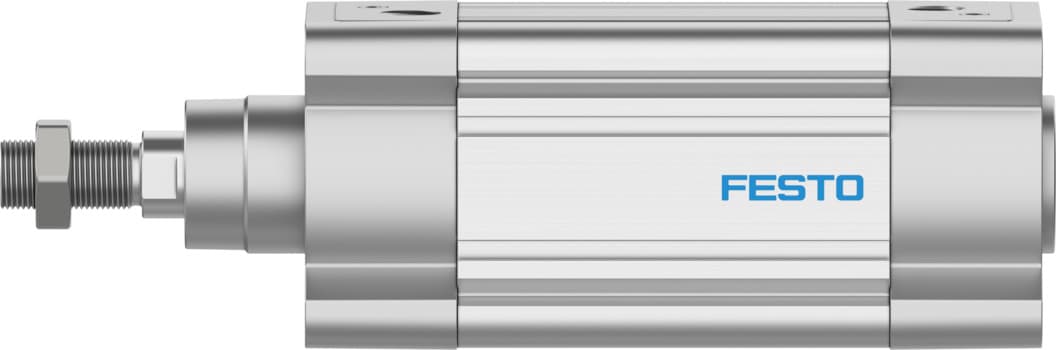

dsbc-80-80-d3-ppva-n3
Selling Points
- 1The Festo DSBC-80-300-D3-PPVA-N3 pneumatic cylinder offers a stroke length of 300 mm, making it ideal for various industrial automation applications. Its double-acting operation ensures efficient movement in both directions.
- 2With a piston diameter of 80 mm and a piston rod thread of M20x1.5, this cylinder provides robust and reliable performance. It is designed to operate within a pressure range of 0.04 MPa to 1.2 MPa.
- 3The DSBC-80-300-D3-PPVA-N3 features adjustable pneumatic cushioning at both ends, ensuring smooth operation and reducing wear and tear on the cylinder. This enhances its durability and longevity.
- 4Conforming to the ISO 15552 standard, this cylinder offers standardized dimensions and mounting interfaces, making it easy to integrate into existing systems. It also supports position detection via proximity switches.
- 5The Festo DSBC-80-300-D3-PPVA-N3 is constructed from high-quality materials, including die-cast aluminum for the cover, wrought aluminum alloy for the piston, and high-alloy steel for the piston rod. This ensures excellent corrosion resistance and reliability in various environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 80mm | Piston diameter | 80 mm |
Piston rod thread | M20x1.5 | Cushioning | Pneumatic cushioning, adjustable at both ends |
Mounting position | Any | Conforms to standard | ISO 15552 |
Piston rod end | External thread | Structural design | Piston Piston rod Profile barrel |
Position sensing | For proximity sensor | Symbol | 00991235 |
Variants | Piston rod at one end | Operating pressure | 0.4bar 12bar |
Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -20°C 80°C |
Impact energy in the end positions | 1.8J | Cushioning length | 31mm |
Theoretical force at 6 bar, retracting | 2721N | Theoretical force at 6 bar, advancing | 3016N |
Moving mass at 0?mm stroke | 810g | Additional moving mass per 10?mm stroke | 39g |
Basic weight with 0?mm stroke | 2720g | Additional weight per 10?mm stroke | 143g |
Type of mounting | Optionally: With internal thread With accessories | Pneumatic connection | G3/8 |
Note on materials | RoHS-compliant | Cover material | Die-cast aluminum, coated |
Piston seal material | TPE-U(PU) | Material of piston | Wrought aluminum alloy |
Piston rod material | High-alloy steel | Piston rod wiper material | TPE-U(PU) |
Buffer seal material | TPE-U(PU) | Cushion piston material | POM |
Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized | Nut material | Steel, galvanized |
Rod wiper material | TPE-E | Material of bearing | Metal polymer compound |
Flange screws material | Steel, galvanized | Manufacturer ID | 3656638 |
Specifications may be subject to change without notice
