Product Model
dsl-16- -270-p-a-s20-b
Selling Points

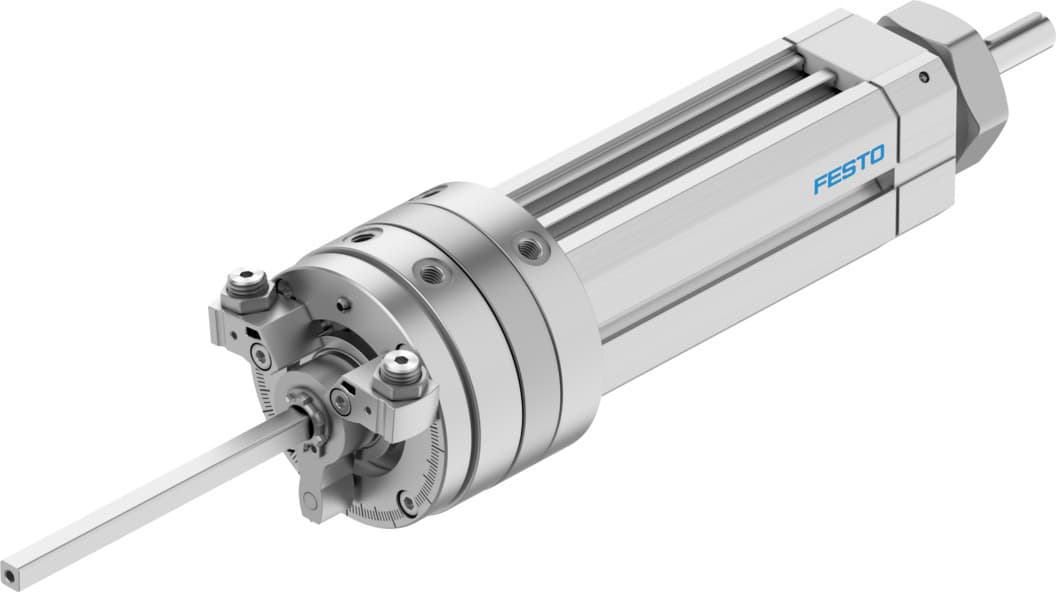

- 1The Festo DSL-16-25-270-P-A-S20-B is a high-performance swivel/linear actuator designed for precise motion control in pneumatic systems. It features a 16x25mm stroke and a 270° swivel angle, ensuring versatile and reliable operation.
- 2Equipped with elastic cushioning components at both ends, this actuator provides smooth and durable performance, reducing wear and tear on the system.
- 3The DSL-16-25-270-P-A-S20-B supports double-acting mode of operation, allowing for both forward and reverse motion, making it suitable for a wide range of applications.
- 4With a maximum impact speed of 0.5 mm/s and a maximum swivel frequency of 2 Hz at 6 bar pressure, this actuator ensures efficient and controlled movement in various industrial settings.
- 5The Festo DSL-16-25-270-P-A-S20-B is built with high-quality materials, including wrought aluminum alloy housing, tempered steel piston rod, and TPE-U(PU) material seals, ensuring durability and reliability in harsh environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Adjustment range of swivel angle | 0deg 270deg | Stroke | 10mm 160mm |
Piston diameter | 16 mm | Swivel angle | 0deg 272deg |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Precision adjustment | -6deg | Mode of operation | Double-acting |
Structural design | Rotary vane | Position sensing | For proximity sensor |
Symbol | 00991269 | Variants | Through, hollow piston rod |
Protection against torsion/guide | With plain-bearing guide | Operating pressure | 2.5bar 8bar |
Max. impact velocity | 0.5m/s | Max. swivel frequency at 6?bar | 2Hz |
Swivel angle backlash | 2deg | Repetition accuracy | 1deg |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
Ambient temperature | -10°C 60°C | Dynamic load torque | 0.1Nm |
Theoretical force at 6 bar, retracting | 73.5N | Theoretical force at 6 bar, advancing | 102.5N |
Theoretical torque at 6 bar | 1.25Nm | Permissible mass moment of inertia | 3.5E-5kgm2 |
Product weight | 650g | Basic weight with 0?mm stroke | 650g |
Additional weight per 10?mm stroke | 33g | Type of mounting | Optionally: Clamped in T slot With external thread |
Pneumatic connection | M5 | Cover material | Wrought aluminum alloy Anodized |
Seals material | TPE-U(PU) | Housing material | Wrought aluminum alloy Smooth anodized |
Piston rod material | Tempered steel | Manufacturer ID | 556423 |
Specifications may be subject to change without notice
