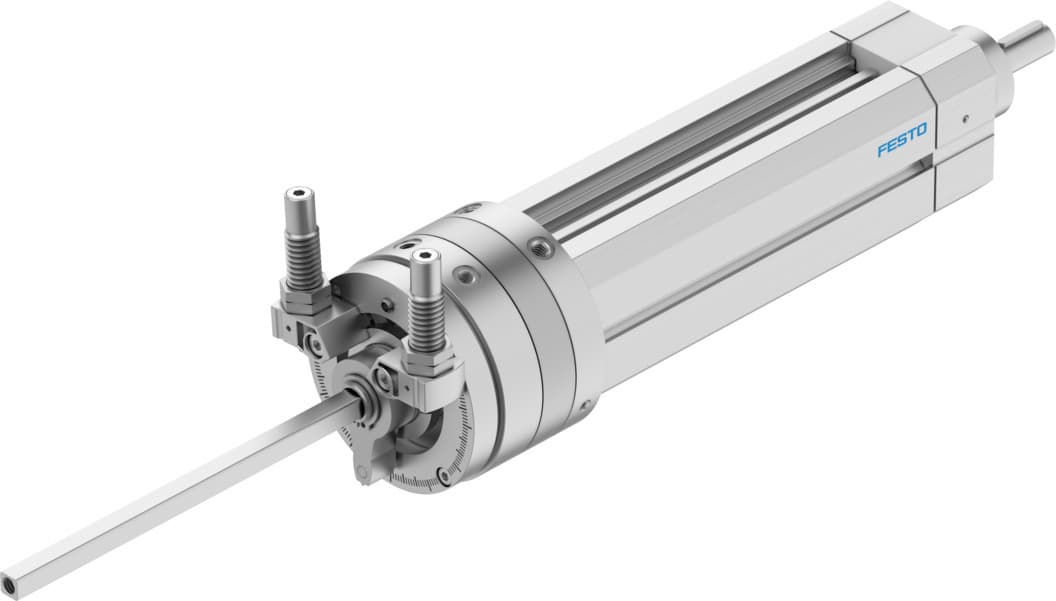

Festo DSL-20-270-CC-A-S20-B Swivel/Linear Unit - High Precision Pneumatic Actuator

Selling Points

1High Precision Motion Control: The Festo DSL-20-270-CC-A-S20-B offers a 20mm piston diameter and 100mm stroke, ensuring precise motion control in a variety of industrial applications.
2Wide Swivel Angle: With a swivel angle of 270°, this unit provides extensive flexibility for positioning and maneuvering in complex systems.
3Double-Acting Operation: Designed for double-acting mode of operation, it can move in both directions, enhancing versatility and efficiency.
4Advanced Cushioning: Equipped with shock absorbers at both ends and elastic cushioning rings/plates, it ensures smooth operation and reduces wear and tear.
5Versatile Mounting Options: Available in clamped-in T-slot and via male thread mounting options, it offers flexibility in installation and integration into various systems.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Cushioning angle	12deg	Adjustment range of swivel angle	0deg 246deg
Stroke	10mm 160mm	Piston diameter	20 mm
Swivel angle	0deg 246deg	Cushioning	Pneumatic shock absorber at both ends Elastic cushioning rings/pads at both ends
Mounting position	Any	Precision adjustment	-3deg
Mode of operation	Double-acting	Structural design	Rotary vane
Position sensing	For proximity sensor	Symbol	00991269
Variants	Through, hollow piston rod	Protection against torsion/guide	With plain-bearing guide
Operating pressure	2.5bar 8bar	Max. impact velocity	0.5m/s
Max. swivel frequency at 6?bar	1Hz	Swivel angle backlash	2deg
Repetition accuracy	0.1deg	Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media	Operation with oil lubrication possible (required for further use)	Corrosion resistance class (CRC)	1 - Low corrosion stress
LABS (PWIS) conformity	VDMA24364-B2-L	Ambient temperature	-10°C 60°C
Dynamic load torque	0.2Nm	Theoretical force at 6 bar, retracting	120.5N
Theoretical force at 6 bar, advancing	159N	Theoretical torque at 6 bar	2.5Nm
Permissible mass moment of inertia	0.0012kgm2	Product weight	1130g
Basic weight with 0?mm stroke	1130g	Additional weight per 10?mm stroke	52g
Type of mounting	Optionally: Clamped in T slot With external thread	Pneumatic connection	M5
Cover material	Wrought aluminum alloy Anodized	Seals material	TPE-U(PU)
Housing material	Wrought aluminum alloy Smooth anodized	Piston rod material	Tempered steel
Manufacturer ID	556460

Specifications may be subject to change without notice
