Product Model

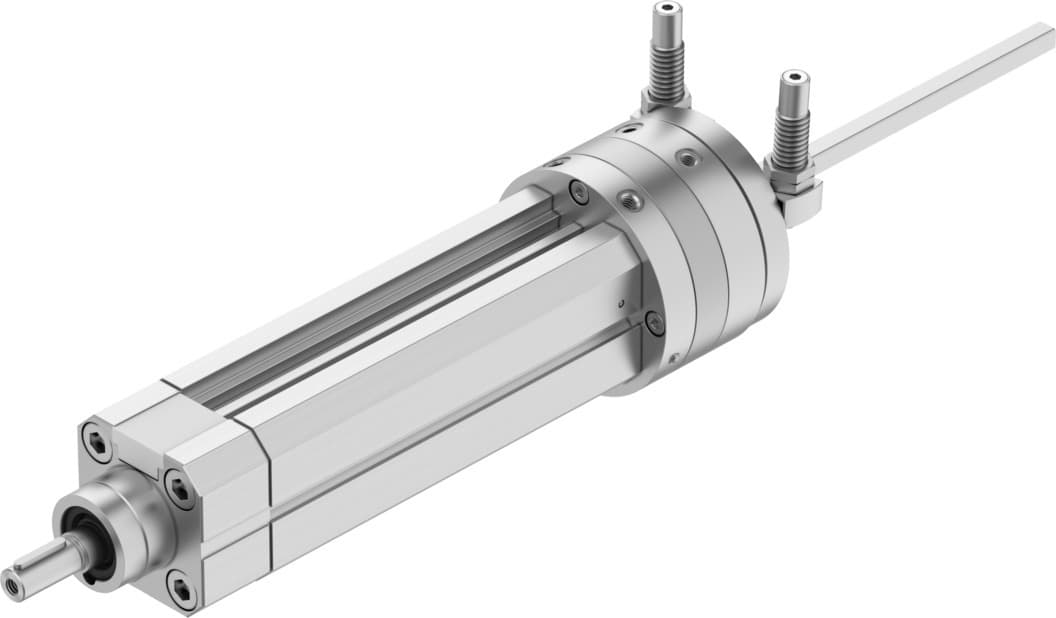

dsl-20-80-270-cc-a-s2-b
Selling Points
- 1Double-acting motion: The Festo DSL-20-80-270-CC-A-S2-B swivel/linear unit provides double-acting motion, ensuring smooth and reliable operation in both directions.
- 2Precision control: With a 20mm piston diameter and 80mm stroke, this unit offers precise control over linear movements, making it suitable for various industrial applications.
- 3Wide swivel angle: The unit features a 270° swivel angle, allowing for versatile positioning and flexibility in your motion control systems.
- 4Shock absorption: Equipped with shock absorbers at both ends, this unit ensures smooth operation and reduces the impact of sudden movements, enhancing overall system stability.
- 5Durable construction: The plain-bearing guide provides protection against torque and guide wear, ensuring the longevity of the unit and minimizing maintenance needs.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Cushioning angle | 12deg | Adjustment range of swivel angle | 0deg 246deg |
Stroke | 80mm | Piston diameter | 20 mm |
Swivel angle | 0deg 246deg | Cushioning | Pneumatic shock absorber at both ends Elastic cushioning rings/pads at both ends |
Mounting position | Any | Precision adjustment | -3deg |
Mode of operation | Double-acting | Structural design | Rotary vane |
Position sensing | For proximity sensor | Symbol | 00991268 |
Variants | Through piston rod | Protection against torsion/guide | With plain-bearing guide |
Operating pressure | 2.5bar 8bar | Max. impact velocity | 0.5m/s |
Max. swivel frequency at 6?bar | 1Hz | Swivel angle backlash | 2deg |
Repetition accuracy | 0.1deg | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | -10°C 60°C |
Dynamic load torque | 0.2Nm | Theoretical force at 6 bar, retracting | 120.5N |
Theoretical force at 6 bar, advancing | 159N | Theoretical torque at 6 bar | 2.5Nm |
Permissible mass moment of inertia | 0.0012kgm2 | Product weight | 1130g |
Basic weight with 0?mm stroke | 1130g | Additional weight per 10?mm stroke | 52g |
Type of mounting | Optionally: Clamped in T slot With external thread | Pneumatic connection | M5 |
Cover material | Wrought aluminum alloy Anodized | Seals material | TPE-U(PU) |
Housing material | Wrought aluminum alloy Smooth anodized | Piston rod material | Tempered steel |
Manufacturer ID | 556445 |
Specifications may be subject to change without notice
