Product Model

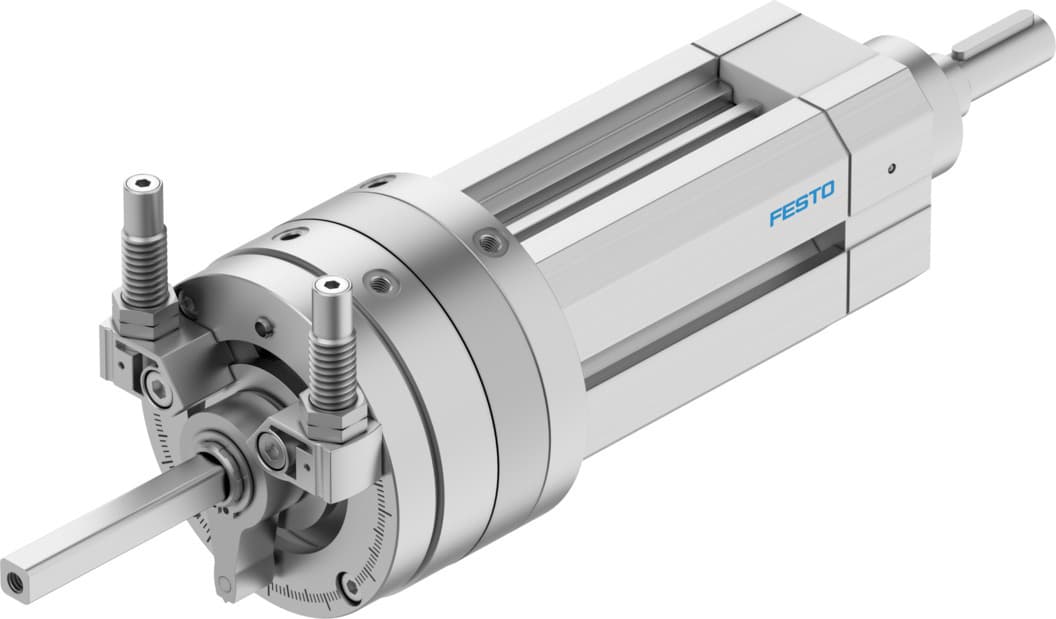

dsl-25- -270-cc-a-s20-b
Selling Points
- 1The Festo DSL-25- -270-CC-A-S20-B offers a precise adjustment range of 0 to 246 degrees, ensuring accurate positioning in your automation system.
- 2This swivel linear unit operates double-acting, providing smooth and reliable motion in both directions, enhancing the efficiency of your applications.
- 3Equipped with shock absorbers at both ends, this unit reduces impact and vibration, ensuring a stable and consistent performance over time.
- 4The DSL-25- -270-CC-A-S20-B can be mounted in any position, offering flexibility in system design and integration.
- 5With a repetition accuracy of 0.1 degrees, this unit ensures precise and repeatable movements, making it ideal for applications requiring high precision.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Cushioning angle | 10deg | Adjustment range of swivel angle | 0deg 246deg |
Stroke | 10mm 160mm | Piston diameter | 25 mm |
Swivel angle | 0deg 246deg | Cushioning | Pneumatic shock absorber at both ends Elastic cushioning rings/pads at both ends |
Mounting position | Any | Precision adjustment | -3deg |
Mode of operation | Double-acting | Structural design | Rotary vane |
Position sensing | For proximity sensor | Symbol | 00991269 |
Variants | Through, hollow piston rod | Protection against torsion/guide | With plain-bearing guide |
Operating pressure | 2.5bar 8bar | Max. impact velocity | 0.5m/s |
Max. swivel frequency at 6?bar | 1Hz | Swivel angle backlash | 2deg |
Repetition accuracy | 0.1deg | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | -10°C 60°C |
Dynamic load torque | 0.45Nm | Theoretical force at 6 bar, retracting | 173.5N |
Theoretical force at 6 bar, advancing | 246N | Theoretical torque at 6 bar | 5Nm |
Permissible mass moment of inertia | 0.0016kgm2 | Product weight | 1610g |
Basic weight with 0?mm stroke | 1610g | Additional weight per 10?mm stroke | 67g |
Type of mounting | Optionally: Clamped in T slot With external thread | Pneumatic connection | M5 |
Cover material | Wrought aluminum alloy Anodized | Seals material | TPE-U(PU) |
Housing material | Wrought aluminum alloy Smooth anodized | Piston rod material | Tempered steel |
Manufacturer ID | 556496 |
Specifications may be subject to change without notice
