Product Model
dsl-25- -270-p-a-s2-b
Selling Points

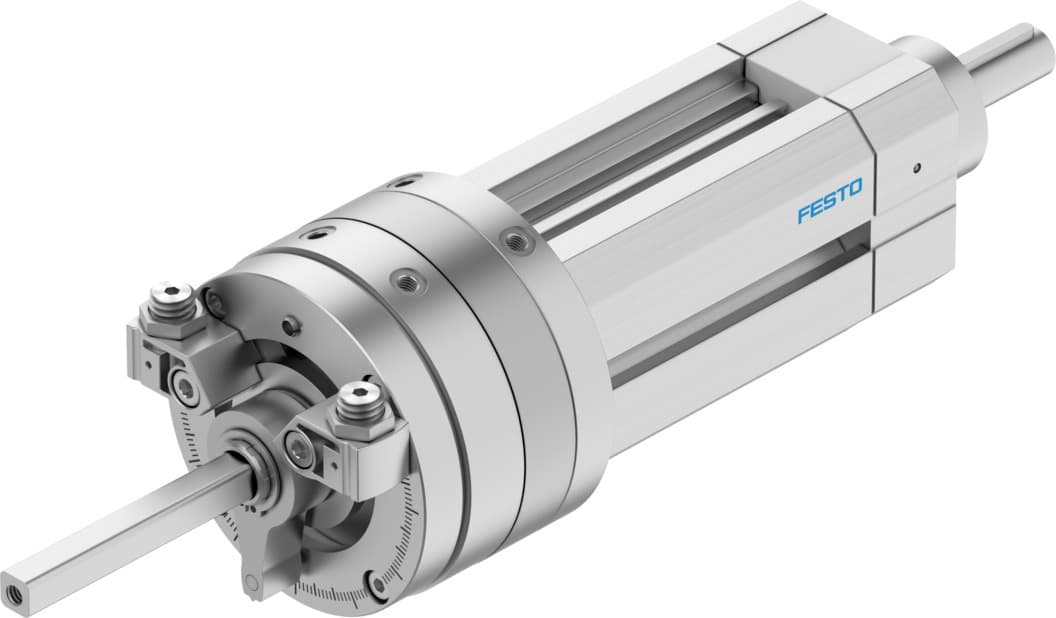

- 1The Festo DSL-25-80-270-P-A-S2-B offers precise movement with a 25mm piston diameter and 80mm stroke, ensuring accurate positioning in various applications.
- 2With a 270° swivel angle, this unit provides extensive rotational capability, making it versatile for diverse industrial needs.
- 3Equipped with elastic cushioning components at both ends, this unit reduces impact and enhances durability, ensuring smooth operation.
- 4The plain-bearing guide provides protection against torque and guide wear, extending the lifespan of the unit and ensuring consistent performance.
- 5Designed for double-acting mode of operation, this unit can move in both directions, offering flexibility and efficiency in various industrial applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Adjustment range of swivel angle | 0deg 270deg | Stroke | 10mm 160mm |
Piston diameter | 25 mm | Swivel angle | 0deg 272deg |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Precision adjustment | -6deg | Mode of operation | Double-acting |
Structural design | Rotary vane | Position sensing | For proximity sensor |
Symbol | 00991268 | Variants | Through piston rod |
Protection against torsion/guide | With plain-bearing guide | Operating pressure | 2.5bar 8bar |
Max. impact velocity | 0.5m/s | Max. swivel frequency at 6?bar | 2Hz |
Swivel angle backlash | 2deg | Repetition accuracy | 1deg |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
Ambient temperature | -10°C 60°C | Dynamic load torque | 0.45Nm |
Theoretical force at 6 bar, retracting | 173.5N | Theoretical force at 6 bar, advancing | 246N |
Theoretical torque at 6 bar | 5Nm | Permissible mass moment of inertia | 1.1E-4kgm2 |
Product weight | 1500g | Basic weight with 0?mm stroke | 1500g |
Additional weight per 10?mm stroke | 67g | Type of mounting | Optionally: Clamped in T slot With external thread |
Pneumatic connection | M5 | Cover material | Wrought aluminum alloy Anodized |
Seals material | TPE-U(PU) | Housing material | Wrought aluminum alloy Smooth anodized |
Piston rod material | Tempered steel | Manufacturer ID | 556492 |
Specifications may be subject to change without notice
