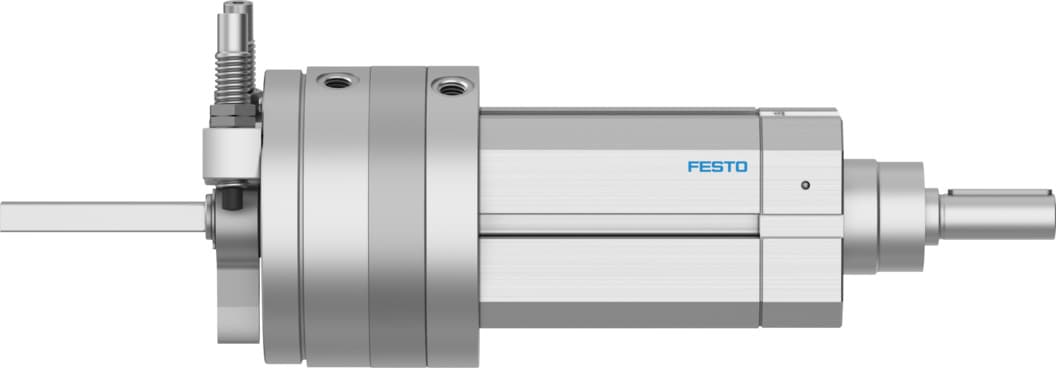

Festo DSL-32-25-270-CC-A-S2-B Swivel/Linear Unit

Selling Points

1High Precision Motion Control: The Festo DSL-32-25-270-CC-A-S2-B offers precise swivel and linear movement with a 270° swivel angle, making it ideal for demanding industrial applications.
2Flexible Cushioning: Equipped with flexible cushioning rings/plates at both ends, this unit ensures smooth operation and reduces wear and tear on the system.
3Double-Acting Design: The double-acting design allows for both extension and retraction, providing versatility in various motion control scenarios.
4Robust Construction: Built with durable materials and a plain-bearing guide, this unit ensures reliable performance under high operating pressures.
5Easy Integration: Designed for easy integration into existing systems, the Festo DSL-32-25-270-CC-A-S2-B supports standardized interfaces and connections, simplifying setup and maintenance.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Cushioning angle	12deg	Adjustment range of swivel angle	0deg 246deg
Stroke	25mm	Piston diameter	32 mm
Swivel angle	0deg 246deg	Cushioning	Pneumatic shock absorber at both ends Elastic cushioning rings/pads at both ends
Mounting position	Any	Precision adjustment	-3deg
Mode of operation	Double-acting	Structural design	Rotary vane
Position sensing	For proximity sensor	Symbol	00991268
Variants	Through piston rod	Protection against torsion/guide	With plain-bearing guide
Operating pressure	2.5bar 8bar	Max. impact velocity	0.5m/s
Max. swivel frequency at 6?bar	0.7Hz	Swivel angle backlash	2deg
Repetition accuracy	0.1deg	Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media	Operation with oil lubrication possible (required for further use)	Corrosion resistance class (CRC)	1 - Low corrosion stress
LABS (PWIS) conformity	VDMA24364-B2-L	Ambient temperature	-10°C 60°C
Dynamic load torque	0.8Nm	Theoretical force at 6 bar, retracting	294N
Theoretical force at 6 bar, advancing	422.5N	Theoretical torque at 6 bar	10Nm
Permissible mass moment of inertia	0.0021kgm2	Product weight	3000g
Basic weight with 0?mm stroke	3000g	Additional weight per 10?mm stroke	109g
Type of mounting	Optionally: Clamped in T slot With external thread	Pneumatic connection	G1/8
Cover material	Wrought aluminum alloy Anodized	Seals material	TPE-U(PU)
Housing material	Wrought aluminum alloy Smooth anodized	Piston rod material	Tempered steel
Manufacturer ID	556499
