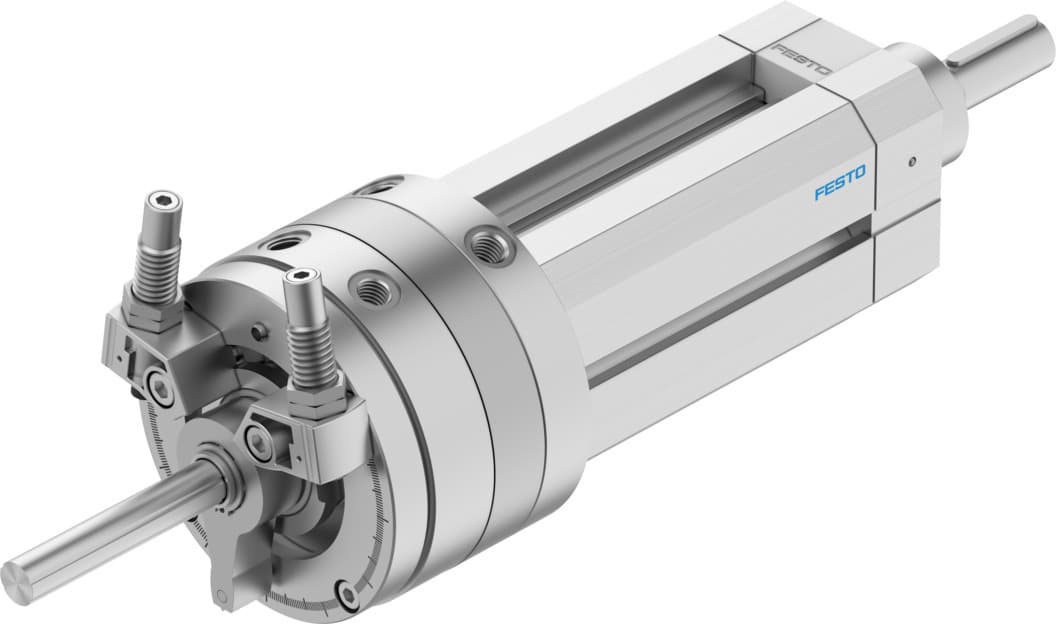

Product Model
dsl-32- -270-cc-a-s2-kf-b
Selling Points
- 1High Precision Motion Control: Designed for precise rotary and linear movements with a 270° swivel angle.
- 2Double-Acting Operation: Enables smooth and efficient operation in both directions.
- 3Robust Construction: Equipped with shock absorbers at both ends for enhanced durability.
- 4Versatile Mounting Options: Compatible with clamped T-slot or male thread mounting for flexible installation.
- 5Advanced Sensors Compatibility: Supports proximity switch position detection for precise control and monitoring.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Cushioning angle | 12deg | Adjustment range of swivel angle | 0deg 246deg |
Stroke | 10mm 100mm | Piston diameter | 32 mm |
Swivel angle | 0deg 246deg | Cushioning | Pneumatic shock absorber at both ends Elastic cushioning rings/pads at both ends |
Mounting position | Any | Precision adjustment | -3deg |
Mode of operation | Double-acting | Structural design | Rotary vane |
Position sensing | For proximity sensor | Symbol | 00991268 |
Variants | Through piston rod | Protection against torsion/guide | Guided on ball bearings |
Operating pressure | 2.5bar 8bar | Max. impact velocity | 0.5m/s |
Max. swivel frequency at 6?bar | 0.7Hz | Swivel angle backlash | 0.05deg |
Repetition accuracy | 0.1deg | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | -10°C 60°C |
Dynamic load torque | 1Nm | Theoretical force at 6 bar, retracting | 294N |
Theoretical force at 6 bar, advancing | 403.5N | Theoretical torque at 6 bar | 10Nm |
Permissible mass moment of inertia | 1.7E-4kgm2 | Product weight | 3280g |
Basic weight with 0?mm stroke | 3280g | Additional weight per 10?mm stroke | 109g |
Type of mounting | Optionally: Clamped in T slot With external thread | Pneumatic connection | G1/8 |
Cover material | Wrought aluminum alloy Anodized | Seals material | TPE-U(PU) |
Housing material | Wrought aluminum alloy Smooth anodized | Piston rod material | Tempered steel |
Manufacturer ID | 556721 |
Specifications may be subject to change without notice
