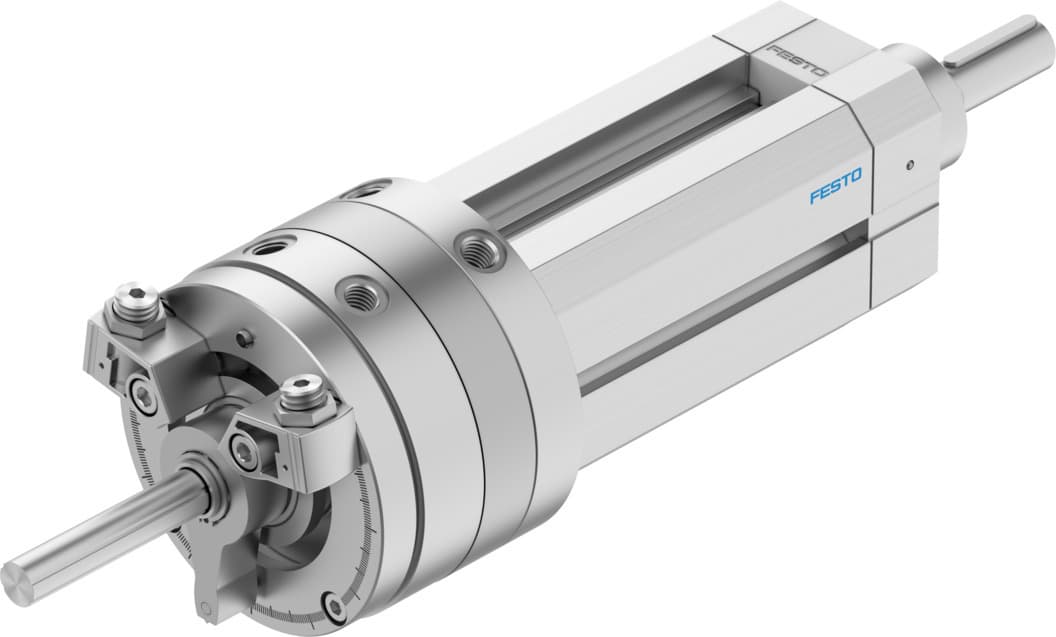

Product Model
dsl-32- -270-p-a-s20-kf-b
Selling Points
- 1Precision Motion Control: Offers a 270° swivel angle and 32mm piston diameter for precise motion control.
- 2Elastic Cushioning: Equipped with elastic cushioning rings/plates at both ends for smooth operation.
- 3Double-Acting Design: Designed for double-acting mode of operation, ensuring reliable performance.
- 4Compressed Air Operation: Compatible with compressed air to ISO 8573-1:2010 [7:4:4] for efficient operation.
- 5Low Corrosion Stress: Features a low corrosion stress corrosion resistance class CRC 1 for durability in various environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Adjustment range of swivel angle | 0deg 270deg | Stroke | 10mm 100mm |
Piston diameter | 32 mm | Swivel angle | 0deg 272deg |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Precision adjustment | -6deg | Mode of operation | Double-acting |
Structural design | Rotary vane | Position sensing | For proximity sensor |
Symbol | 00991269 | Variants | Through, hollow piston rod |
Protection against torsion/guide | Guided on ball bearings | Operating pressure | 2.5bar 8bar |
Max. impact velocity | 0.5m/s | Max. swivel frequency at 6?bar | 2Hz |
Swivel angle backlash | 0.05deg | Repetition accuracy | 1deg |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
Ambient temperature | -10°C 60°C | Dynamic load torque | 1Nm |
Theoretical force at 6 bar, retracting | 294N | Theoretical force at 6 bar, advancing | 403.5N |
Theoretical torque at 6 bar | 10Nm | Permissible mass moment of inertia | 0.0021kgm2 |
Product weight | 3120g | Basic weight with 0?mm stroke | 3120g |
Additional weight per 10?mm stroke | 109g | Type of mounting | Optionally: Clamped in T slot With external thread |
Pneumatic connection | G1/8 | Cover material | Wrought aluminum alloy Anodized |
Seals material | TPE-U(PU) | Housing material | Wrought aluminum alloy Smooth anodized |
Piston rod material | Tempered steel | Manufacturer ID | 556723 |
Specifications may be subject to change without notice
