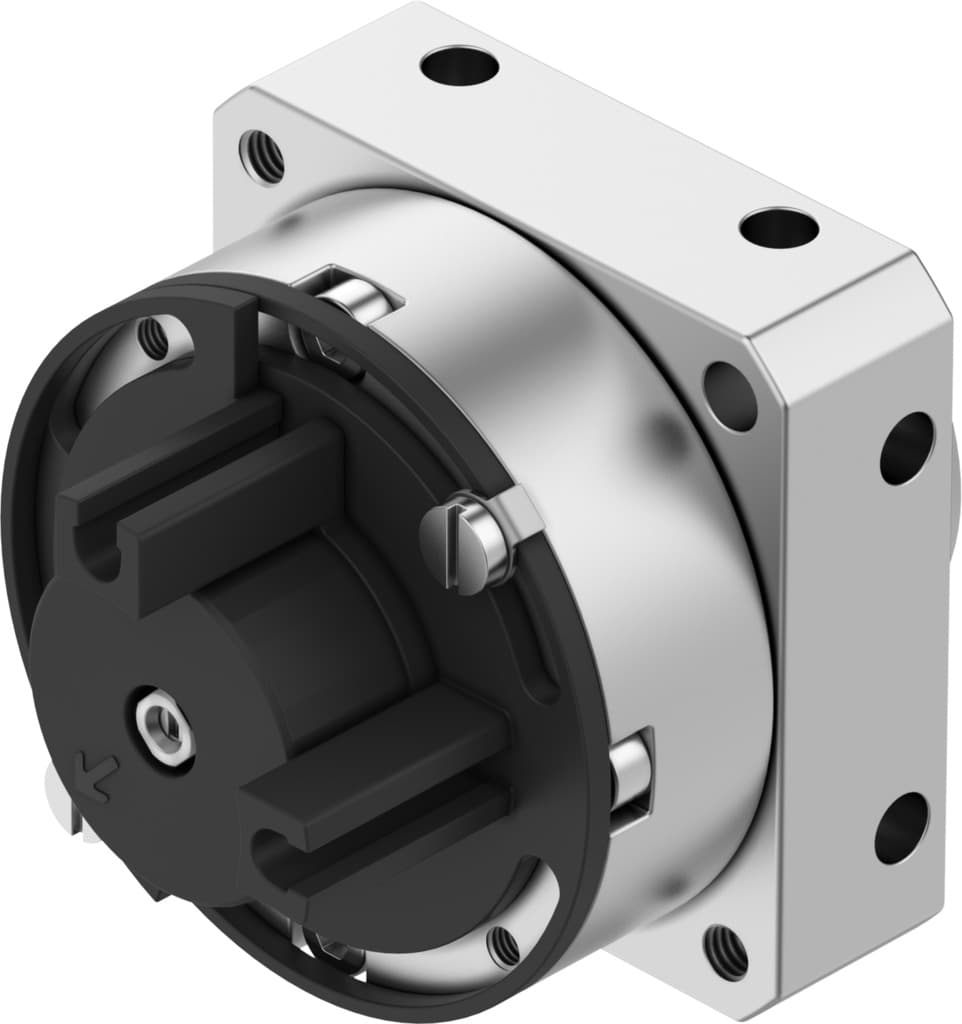

Festo DSM-10-240-P-A-FW Pneumatic Rotary Actuator

Selling Points

1High Precision Rotation: The Festo DSM-10-240-P-A-FW offers a precise 240° rotation angle, ensuring accurate and reliable operation in various industrial applications.
2Double-Acting Design: This semi-rotary drive is designed for double-acting operation, providing efficient and controlled movement in both directions.
3Versatile Mounting Options: The actuator can be mounted in any position, offering flexibility and ease of integration into different systems.
4Position Sensing Capability: Equipped with position sensing, this actuator ensures precise control and monitoring of its movement, enhancing overall system reliability.
5Wide Operating Pressure Range: The DSM-10-240-P-A-FW operates effectively within a wide pressure range of 2.5 to 8 bar, making it suitable for various industrial environments.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Size	10	Cushioning angle	0.5deg
Swivel angle	0deg 240deg	Cushioning	Elastic cushioning rings/pads at both ends
Mounting position	Any	Mode of operation	Double-acting
Structural design	Rotary vane	Position sensing	For proximity sensor
Symbol	00991265	Operating pressure	2.5bar 8bar
Max. swivel frequency at 6?bar	2Hz	Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media	Operation with oil lubrication possible (required for further use)	LABS (PWIS) conformity	VDMA24364-B1/B2-L
Cleanroom class	Class 6 according to ISO 14644-1	Ambient temperature	0°C 60°C
Theoretical torque at 6 bar	0.85Nm	Permissible mass moment of inertia	0.0026kgm2
Product weight	159g	Type of mounting	With internal thread
Pneumatic connection	M3	Note on materials	RoHS-compliant
Drive shaft material	High-alloy stainless steel	Seals material	TPE-U(PU)
Housing material	Aluminum Anodized	Manufacturer ID	185945
