Product Model

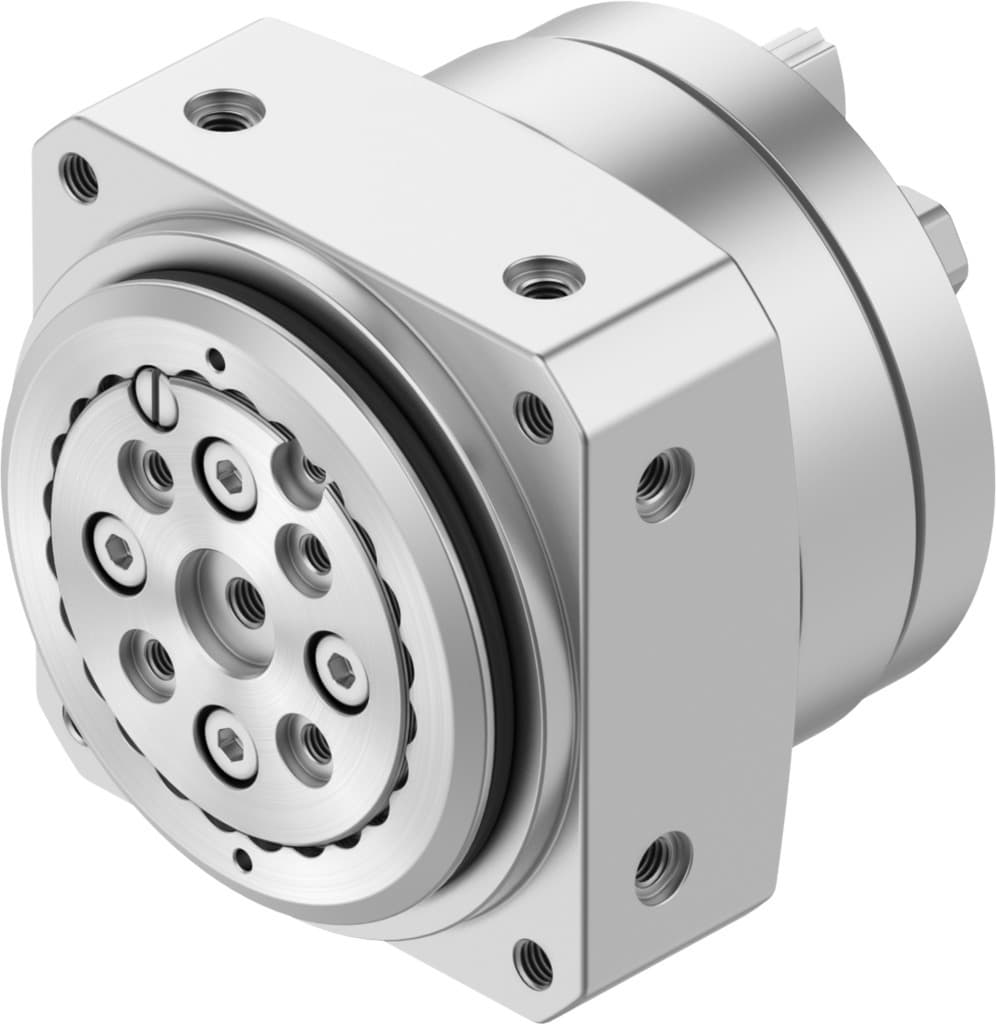

dsm-16-270-hd-a-b
Selling Points
- 1The Festo DSM-16-270-HD-A-B features a swivel angle of 0 to 246 degrees, providing extensive rotation range for versatile applications.
- 2Equipped with elastic cushioning rings/pads at both ends, this semi-rotary drive ensures smooth operation and reduces shock loads.
- 3The DSM-16-270-HD-A-B supports double-acting operation, allowing for precise control in both directions, and is compatible with compressed air up to 10 bar.
- 4With a maximum swivel frequency of 1.5 Hz at 6 bar, this drive offers high-speed operation suitable for demanding industrial environments.
- 5Constructed from RoHS-compliant materials, including nickel-plated steel drive shafts and TPE-U(PU) seals, ensuring durability and environmental compliance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 16 | Swivel angle | 0deg 270deg |
Mounting position | Any | Mode of operation | Double-acting |
Structural design | Rotary vane | Position sensing | For proximity sensor |
Symbol | 00991265 | Operating pressure | 3bar 10bar |
Max. swivel frequency at 6?bar | 1.5Hz | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -10°C 60°C | Max. axial force | 290N |
Max. radial force | 300N | Theoretical torque at 6 bar | 2.5Nm |
Product weight | 625g | Type of mounting | With internal thread |
Pneumatic connection | M5 | Note on materials | RoHS-compliant |
Drive shaft material | Steel Nickel-plated | Seals material | TPE-U(PU) |
Housing material | Wrought aluminum alloy | Manufacturer ID | 1369111 |
Specifications may be subject to change without notice
