Product Model

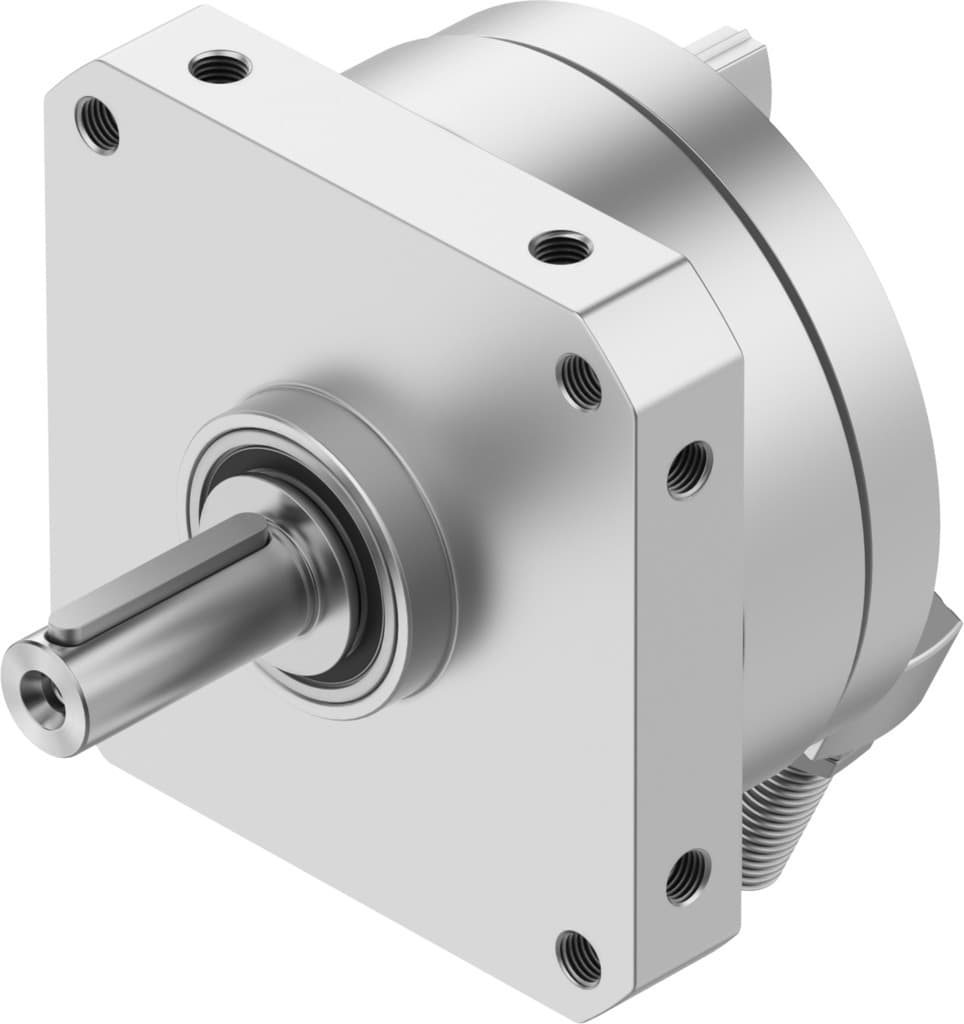

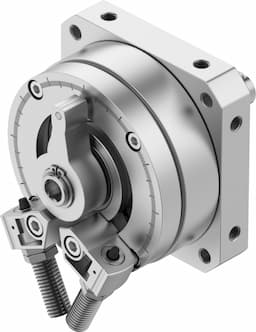

dsm-32-270-p1-a-b
Selling Points
- 1Elastic cushioning rings/pads at both ends ensure smooth operation and reduce wear.
- 2Range from 0 to 246 degrees for versatile application in various pneumatic systems.
- 3Double-acting design with fixed stop for enhanced stability and control.
- 4Optional mounting positions and fine adjustment capabilities make installation straightforward.
- 5Operates at pressures from 1.5 to 10 bar, suitable for demanding applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 32 | Cushioning angle | 6.5deg |
Adjustment range of swivel angle | 0deg 246deg | Swivel angle | 0deg 246deg |
Cushioning | Elastic cushioning rings/pads at both ends with fixed stop | Mounting position | Any |
Precision adjustment | -6deg | Mode of operation | Double-acting |
Structural design | Rotary vane | Position sensing | For proximity sensor |
Symbol | 00991265 | Operating pressure | 1.5bar 10bar |
Max. swivel frequency at 6?bar | 2Hz | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -10°C 60°C | Max. axial force | 75N |
Max. radial force | 200N | Theoretical torque at 6 bar | 10Nm |
Permissible mass moment of inertia | 0.075kgm2 | Product weight | 1475g |
Type of mounting | With internal thread | Pneumatic connection | G1/8 |
Note on materials | RoHS-compliant | Drive shaft material | Steel Nickel-plated |
Seals material | TPE-U(PU) | Housing material | Wrought aluminum alloy |
Manufacturer ID | 566209 |
Specifications may be subject to change without notice
