Product Model

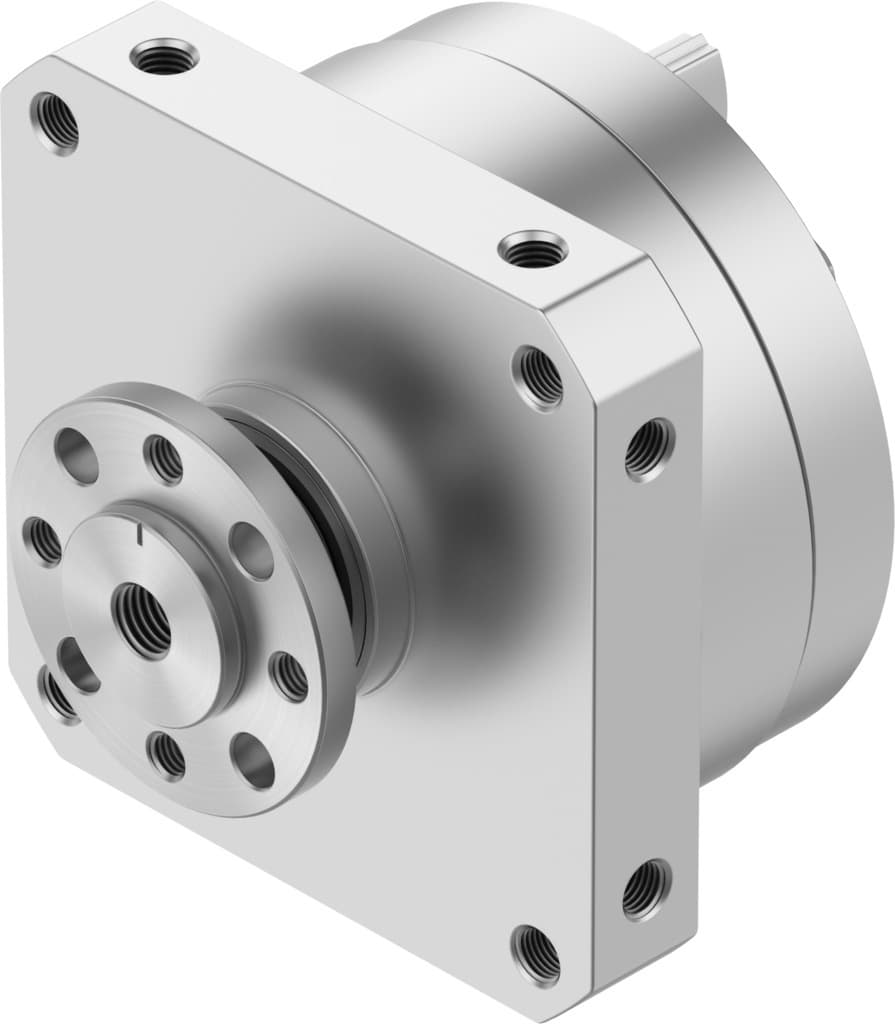

dsm-40-270-fw-a-b
Selling Points
- 1The Festo DSM-40-270-FW-A-B semi-rotary drive offers a swivel angle of 0 to 270 degrees, providing versatile positioning options for various industrial applications.
- 2This semi-rotary drive operates double-acting, ensuring reliable and efficient operation in both directions, making it suitable for demanding tasks.
- 3The DSM-40-270-FW-A-B features position detection via a proximity switch, enhancing precision and control in automated systems.
- 4With an operating pressure range of 0.2 MPa to 1 MPa (2 bar to 10 bar), this drive can handle a variety of pneumatic systems, ensuring adaptability to different applications.
- 5The drive is designed with a vane mechanism, providing smooth and reliable operation, and is constructed from materials like steel and TPE-U(PU) for durability and corrosion resistance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 40 | Swivel angle | 0deg 270deg |
Mounting position | Any | Mode of operation | Double-acting |
Structural design | Rotary vane | Position sensing | For proximity sensor |
Symbol | 00991265 | Operating pressure | 1.5bar 10bar |
Max. swivel frequency at 6?bar | 2Hz | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Cleanroom class | Class 6 according to ISO 14644-1 | Ambient temperature | -10°C 60°C |
Max. axial force | 120N | Max. radial force | 350N |
Theoretical torque at 6 bar | 20Nm | Product weight | 2535g |
Type of mounting | With internal thread | Pneumatic connection | G1/8 |
Note on materials | RoHS-compliant | Drive shaft material | Steel Nickel-plated |
Seals material | TPE-U(PU) | Housing material | Wrought aluminum alloy |
Manufacturer ID | 547600 |
Specifications may be subject to change without notice
