Product Model
dsm-40-270-p1-hd-a-b
Selling Points

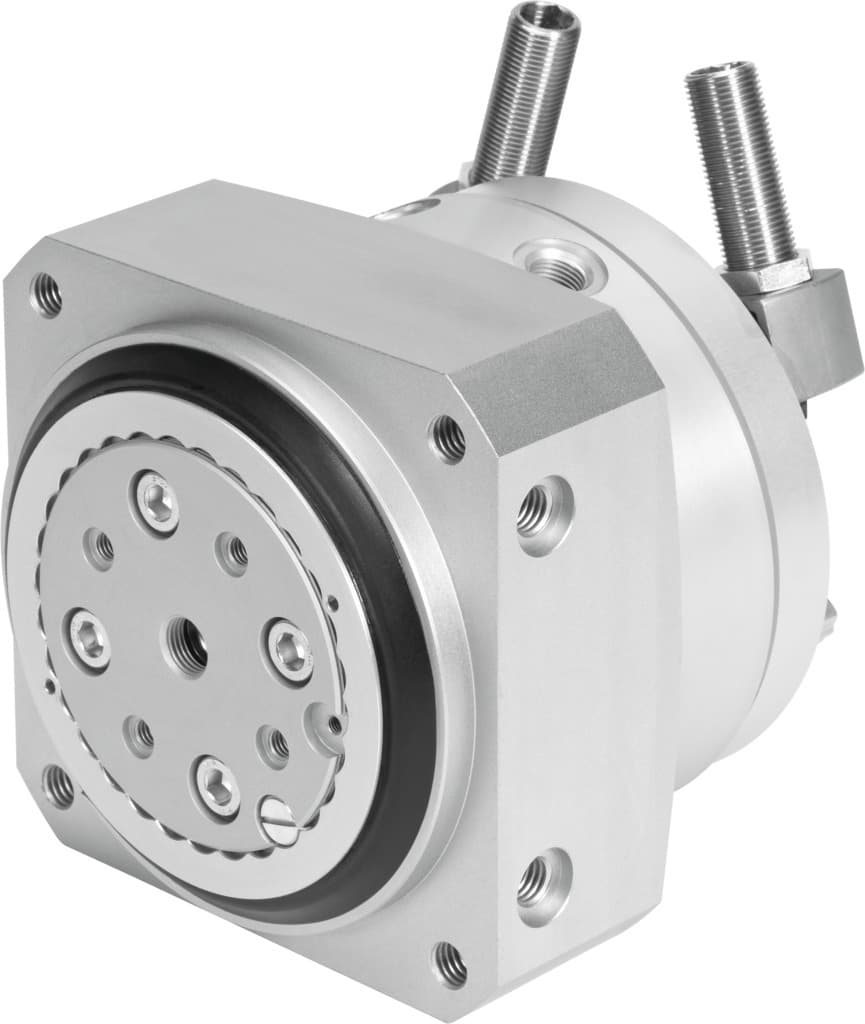

- 1The Festo DSM-40-270-P1-HD-A-B semi-rotary drive offers an infinitely adjustable swivel angle of 0 to 240 degrees, ensuring versatile application in various industrial settings.
- 2Equipped with elastic cushioning rings/pads at both ends and a fixed stop, this drive provides enhanced stability and protection against shock loads.
- 3With a maximum operating pressure of 2 to 10 bar and a swivel frequency of up to 1.5 Hz at 6 bar, this drive is suitable for demanding pneumatic applications.
- 4The DSM-40-270-P1-HD-A-B features a double-acting principle, allowing for precise control and operation in both directions, making it ideal for complex automation tasks.
- 5Constructed from high-quality materials including nickel-plated steel for the drive shaft and TPE-U(PU) seals, this semi-rotary drive ensures durability and reliability in harsh environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 40 | Cushioning angle | 6.5deg |
Adjustment range of swivel angle | 0deg 240deg | Swivel angle | 0deg 240deg |
Cushioning | Elastic cushioning rings/pads at both ends with fixed stop | Mounting position | Any |
Precision adjustment | -6deg | Mode of operation | Double-acting |
Structural design | Rotary vane | Position sensing | For proximity sensor |
Symbol | 00991265 | Operating pressure | 2bar 10bar |
Max. swivel frequency at 6?bar | 1.5Hz | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -10°C 60°C | Max. axial force | 950N |
Max. radial force | 1200N | Theoretical torque at 6 bar | 20Nm |
Permissible mass moment of inertia | 0.105kgm2 | Product weight | 4100g |
Type of mounting | With internal thread | Pneumatic connection | G1/8 |
Note on materials | RoHS-compliant | Drive shaft material | Steel Nickel-plated |
Seals material | TPE-U(PU) | Housing material | Wrought aluminum alloy |
Manufacturer ID | 1369120 |
Specifications may be subject to change without notice
