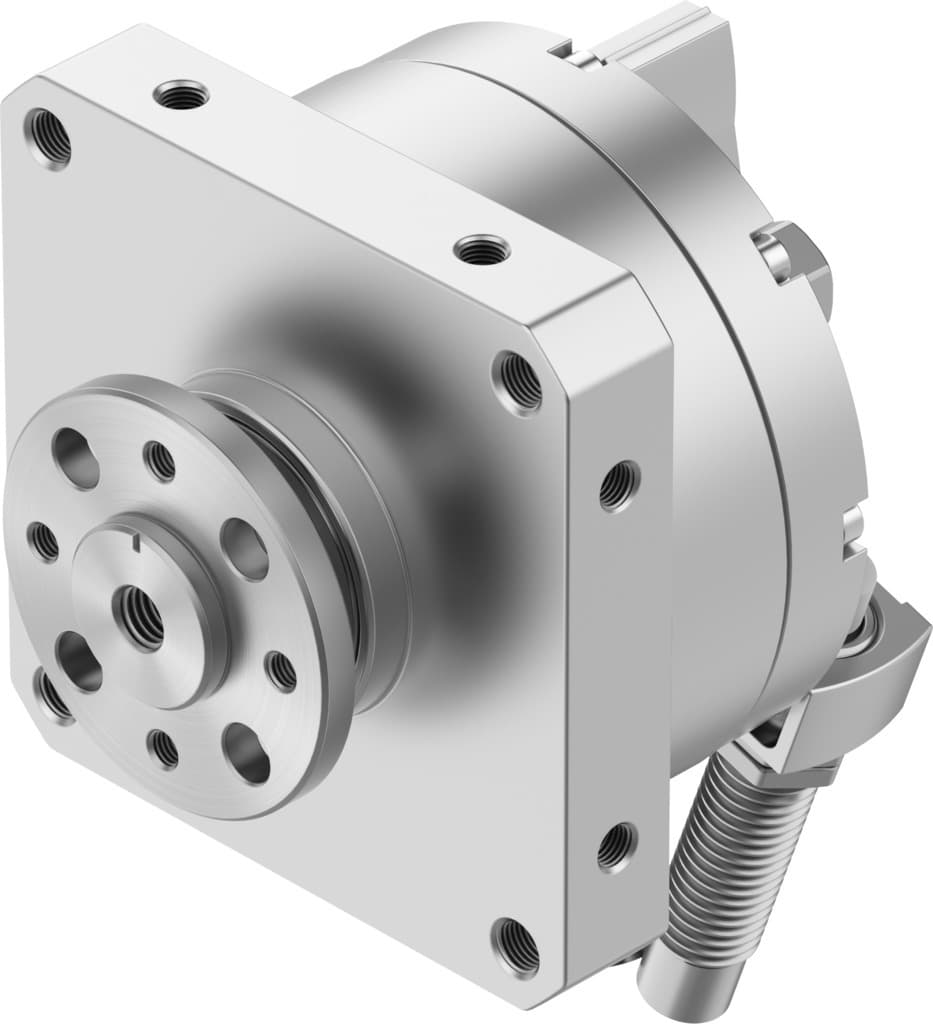

Festo DSM-63-270-CC-FW-A-B: Efficient Semi-Rotary Drive

Selling Points

1The Festo DSM-63-270-CC-FW-A-B semi-rotary drive offers a wide swivel angle adjustment range from 0 to 240 degrees, ensuring flexibility in various automation applications.
2This drive features a cushioning angle of 17.5 degrees and is equipped with shock absorbers at both ends, providing smooth operation and reducing wear and tear.
3The DSM-63-270-CC-FW-A-B is designed for double-acting operation, allowing for precise control and efficient use of compressed air.
4With a maximum operating pressure of 1 MPa (10 bar), this semi-rotary drive can handle demanding applications while maintaining reliability.
5The drive is compatible with compressed air to ISO 8573-1:2010 standards, ensuring high-quality air supply and minimizing contamination risks.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Size	63	Cushioning angle	17.5deg
Adjustment range of swivel angle	0deg 240deg	Swivel angle	0deg 240deg
Cushioning	Pneumatic shock absorber at both ends	Mounting position	Any
Precision adjustment	-3deg	Mode of operation	Double-acting
Structural design	Rotary vane	Position sensing	For proximity sensor
Symbol	00991265	Operating pressure	1.5bar 10bar
Max. swivel frequency at 6?bar	0.6Hz	Operating medium	Compressed air as per ISO 8573-1:2010 [7:-:-]
Corrosion resistance class (CRC)	0 - No corrosion stress	LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	-10°C 60°C	Max. axial force	500N
Max. radial force	500N	Theoretical torque at 6 bar	40Nm
Permissible mass moment of inertia	0.5kgm2	Product weight	5400g
Type of mounting	With internal thread	Pneumatic connection	G1/4
Note on materials	RoHS-compliant	Drive shaft material	Steel Nickel-plated
Seals material	TPE-U(PU)	Housing material	Wrought aluminum alloy
Manufacturer ID	552082

Specifications may be subject to change without notice
