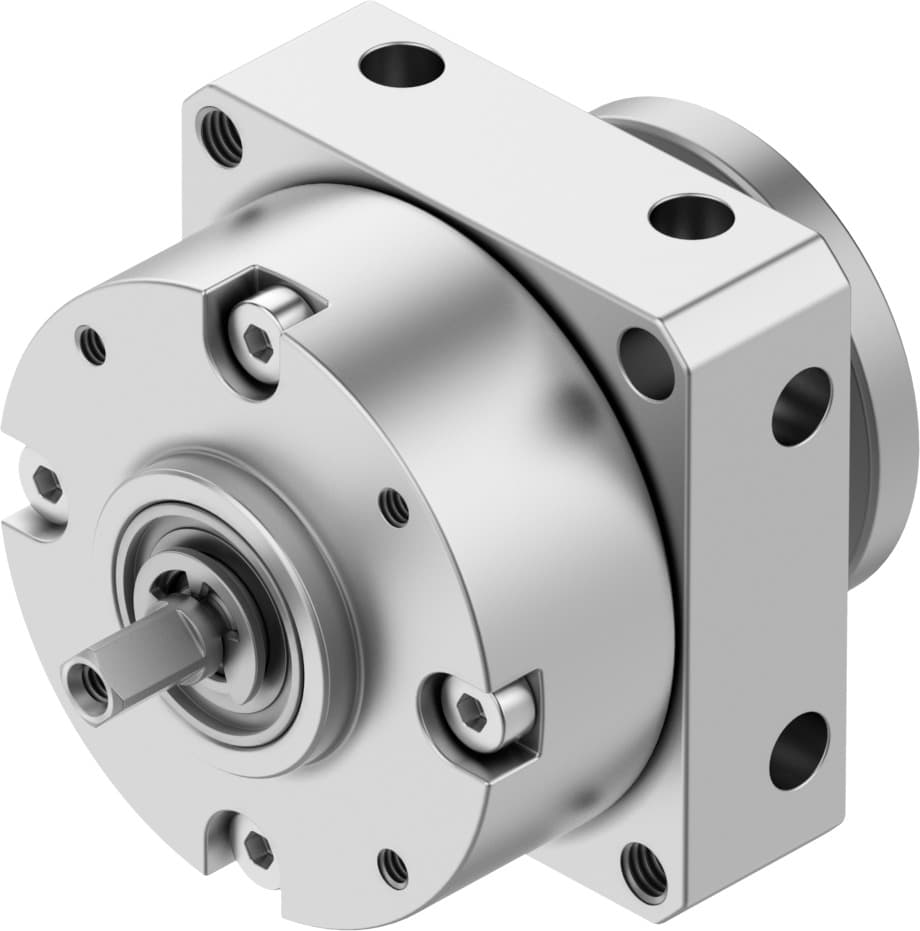

Festo DSM-6-90-P-FW Semi-Rotary Drive | High Precision Swivel Module

Selling Points

1The Festo DSM-6-90-P-FW offers an infinitely adjustable swivel angle, ensuring precise control and flexibility in various applications.
2Equipped with elastic cushioning rings/plates at both ends, this module provides smooth operation and reduces wear and tear, ensuring long service life.
3Designed for double-acting operation, the DSM-6-90-P-FW can handle both positive and negative pressures, making it versatile for a wide range of pneumatic applications.
4Built with high-alloy stainless steel for the drive shaft and TPE-U(PU) for seals, this module is durable and resistant to wear, ensuring reliable performance in demanding environments.
5The DSM-6-90-P-FW can be mounted via a female thread, offering flexibility in assembly positions and making it easy to integrate into various systems.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Size	6	Cushioning angle	0.5deg
Swivel angle	0deg 90deg	Cushioning	Elastic cushioning rings/pads at both ends
Mounting position	Any	Mode of operation	Double-acting
Structural design	Rotary vane	Position sensing	None
Symbol	00991265	Operating pressure	3.5bar 8bar
Max. swivel frequency at 6?bar	3Hz	Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media	Operation with oil lubrication possible (required for further use)	LABS (PWIS) conformity	VDMA24364-B1/B2-L
Cleanroom class	Class 6 according to ISO 14644-1	Ambient temperature	0°C 60°C
Theoretical torque at 6 bar	0.15Nm	Permissible mass moment of inertia	6.5E-4kgm2
Product weight	51g	Type of mounting	With internal thread
Pneumatic connection	M3	Note on materials	RoHS-compliant
Drive shaft material	High-alloy stainless steel	Seals material	TPE-U(PU)
Housing material	Aluminum Anodized	Manufacturer ID	185928
