Festo DSM-8-180-P-A-FF-FW Rotary Actuator | High-Quality Automation Solutions

Selling Points

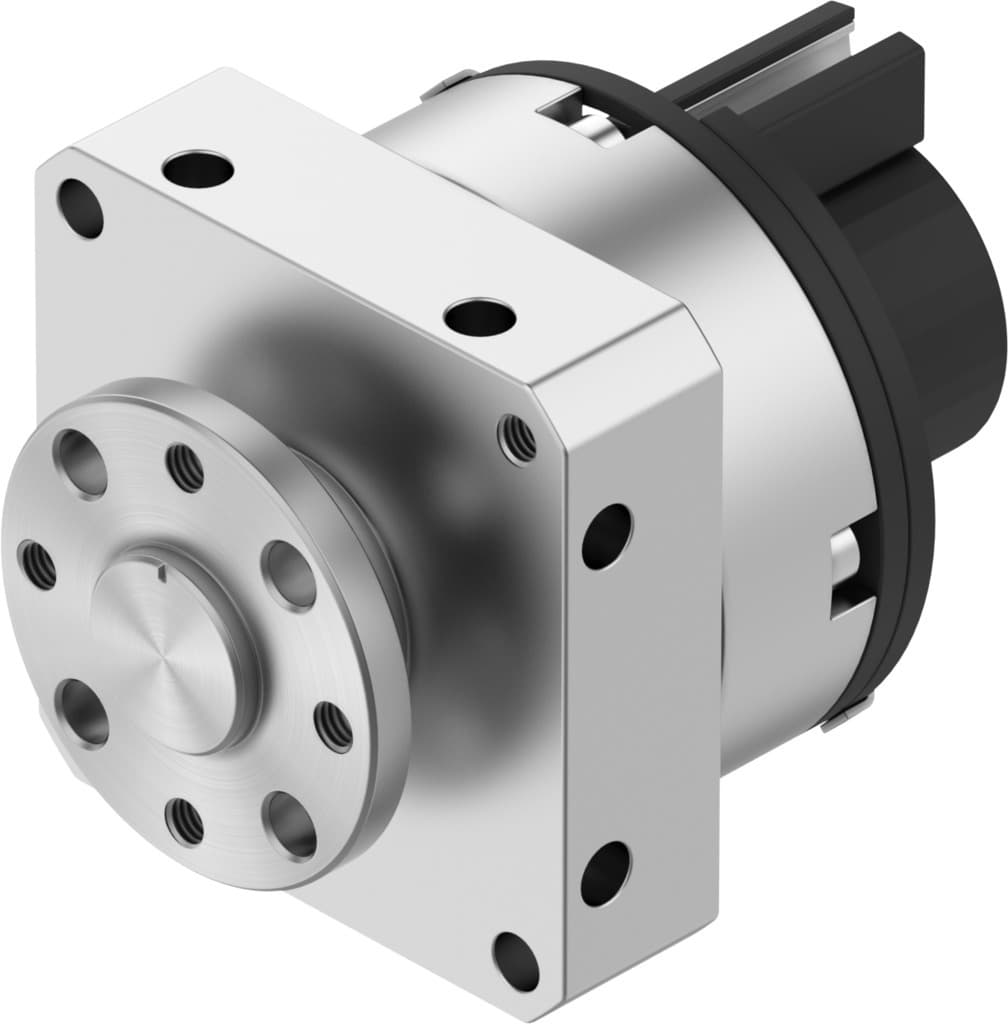

1The Festo DSM-8-180-P-A-FF-FW is a semi-rotary drive/swivel module that offers a swivel angle of 0 to 180 degrees, providing flexible positioning in various industrial applications.
2This rotary actuator operates with compressed air, ensuring efficient and reliable performance within the specified operating pressure range of 3.5 to 8 bar.
3The DSM-8-180-P-A-FF-FW features a double-acting mode of operation and a precision adjustment range of -5 degrees, enhancing its accuracy and control.
4With a theoretical torque of 0.35 Nm at 6 bar and a permissible mass moment of inertia of 0.0013 kgm², this actuator provides robust mechanical performance.
5The Festo DSM-8-180-P-A-FF-FW is designed with high-alloy stainless steel for the drive shaft and TPE-U(PU) seals, ensuring durability and resistance to wear and tear.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Size	8	Cushioning angle	0.5deg
Swivel angle	0deg 180deg	Cushioning	Elastic cushioning rings/pads at both ends
Mounting position	Any	Mode of operation	Double-acting
Structural design	Rotary vane	Position sensing	For proximity sensor
Symbol	00991265	Operating pressure	3.5bar 8bar
Max. swivel frequency at 6?bar	3Hz	Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media	Operation with oil lubrication possible (required for further use)	LABS (PWIS) conformity	VDMA24364-B1/B2-L
Cleanroom class	Class 6 according to ISO 14644-1	Ambient temperature	0°C 60°C
Theoretical torque at 6 bar	0.35Nm	Permissible mass moment of inertia	0.0013kgm2
Product weight	92g	Type of mounting	With internal thread
Pneumatic connection	M3	Note on materials	RoHS-compliant
Drive shaft material	High-alloy stainless steel	Seals material	TPE-U(PU)
Housing material	Aluminum Anodized	Manufacturer ID	185937
