Product Model

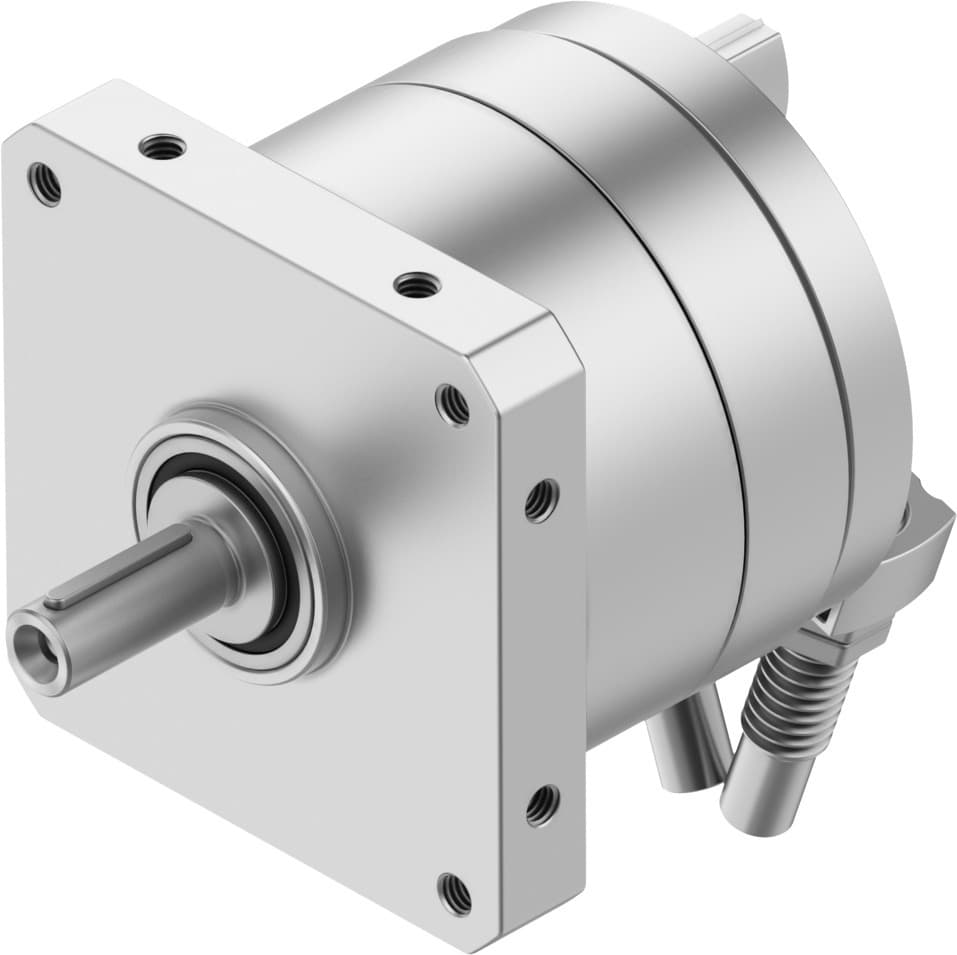

dsm-t-12-270-cc-a-b
Selling Points
- 1The Festo DSM-T-12-270-CC-A-B semi-rotary drive offers a 15-degree cushioning angle, ensuring smooth operation and reducing wear on components.
- 2With a rotation angle adjustment range of 0-246 degrees and a swivel angle of 0-246 degrees, this drive provides versatile positioning capabilities.
- 3Equipped with shock absorbers at both ends, the DSM-T-12-270-CC-A-B reduces vibrations and enhances stability during operation.
- 4Designed for double-acting operation, this semi-rotary drive can handle both forward and reverse movements efficiently.
- 5Compatible with compressed air up to 10 bar, the DSM-T-12-270-CC-A-B is suitable for a wide range of industrial applications requiring precise control and reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 12 | Cushioning angle | 15deg |
Adjustment range of swivel angle | 0deg 246deg | Swivel angle | 0deg 246deg |
Cushioning | Pneumatic shock absorber at both ends | Mounting position | Any |
Precision adjustment | -3deg | Mode of operation | Double-acting |
Structural design | Rotary vane | Position sensing | For proximity sensor |
Symbol | 00991265 | Operating pressure | 2.5bar 10bar |
Max. swivel frequency at 6?bar | 1.5Hz | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
Ambient temperature | -10°C 60°C | Max. axial force | 18N |
Max. radial force | 45N | Theoretical torque at 6 bar | 2.5Nm |
Permissible mass moment of inertia | 0.008kgm2 | Product weight | 375g |
Type of mounting | With internal thread | Pneumatic connection | M5 |
Note on materials | RoHS-compliant | Drive shaft material | Steel Nickel-plated |
Seals material | TPE-U(PU) | Housing material | Wrought aluminum alloy |
Manufacturer ID | 1145088 |
Specifications may be subject to change without notice
