Product Model
dsm-t-12-270-p-fw-a-b
Selling Points

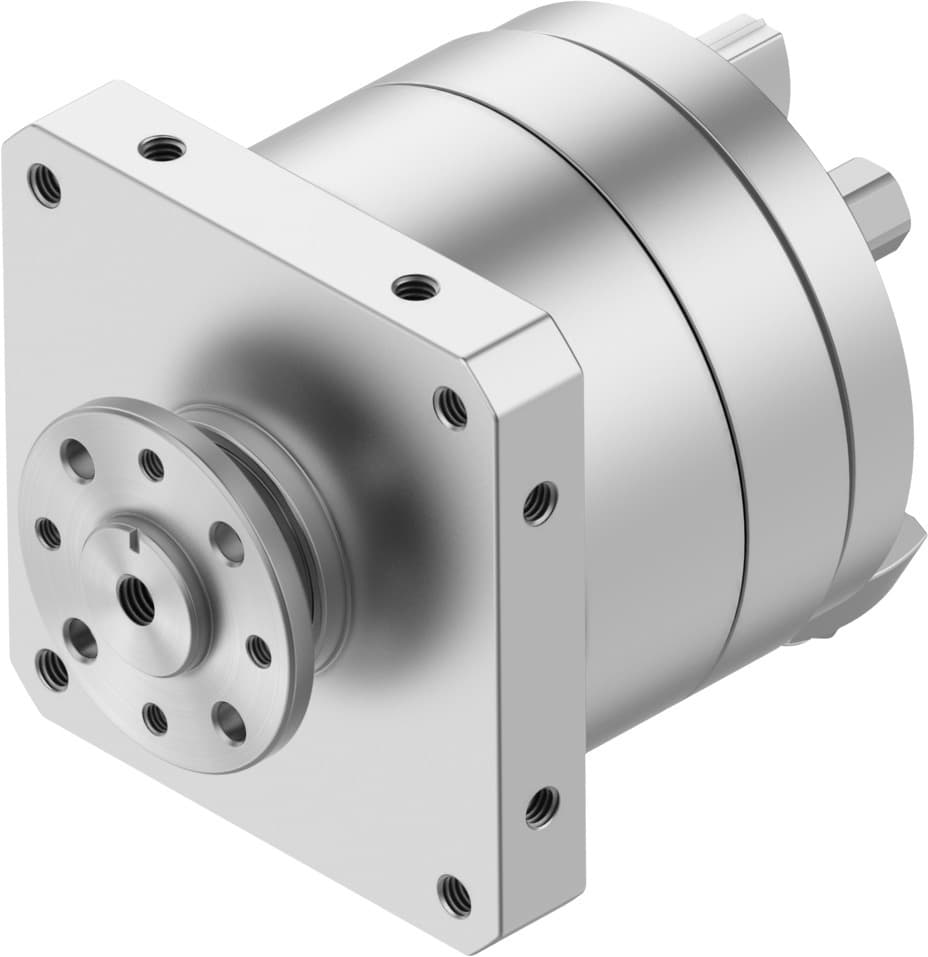

- 1The Festo DSM-12-270-P-FW-A-B semi-rotary drive offers a 270° swivel angle, ensuring precise control in various automation applications.
- 2Equipped with elastic cushioning rings/plates at both ends, this drive minimizes vibrations and noise, enhancing overall system stability.
- 3Designed for use with compressed air to ISO 8573-1:2010, this drive provides reliable operation in a wide range of pneumatic systems.
- 4With an optional mounting position and fine adjustment of -6°, the DSM-12-270-P-FW-A-B can be easily integrated into various mechanical setups.
- 5Built with nickel-plated steel drive shafts, TPE-U(PU) seals, and aluminum alloy housing, this drive ensures durability and resistance to corrosion.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 12 | Cushioning angle | 1.8deg |
Adjustment range of swivel angle | 0deg 270deg | Swivel angle | 0deg 270deg |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Precision adjustment | -6deg | Mode of operation | Double-acting |
Structural design | Rotary vane | Position sensing | For proximity sensor |
Symbol | 00991265 | Operating pressure | 2.5bar 10bar |
Max. swivel frequency at 6?bar | 2Hz | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
Ambient temperature | -10°C 60°C | Max. axial force | 18N |
Max. radial force | 45N | Theoretical torque at 6 bar | 2.5Nm |
Permissible mass moment of inertia | 0.005kgm2 | Product weight | 383g |
Type of mounting | With internal thread | Pneumatic connection | M5 |
Note on materials | RoHS-compliant | Drive shaft material | Steel Nickel-plated |
Seals material | TPE-U(PU) | Housing material | Wrought aluminum alloy |
Manufacturer ID | 1145087 |
Specifications may be subject to change without notice
