Product Model

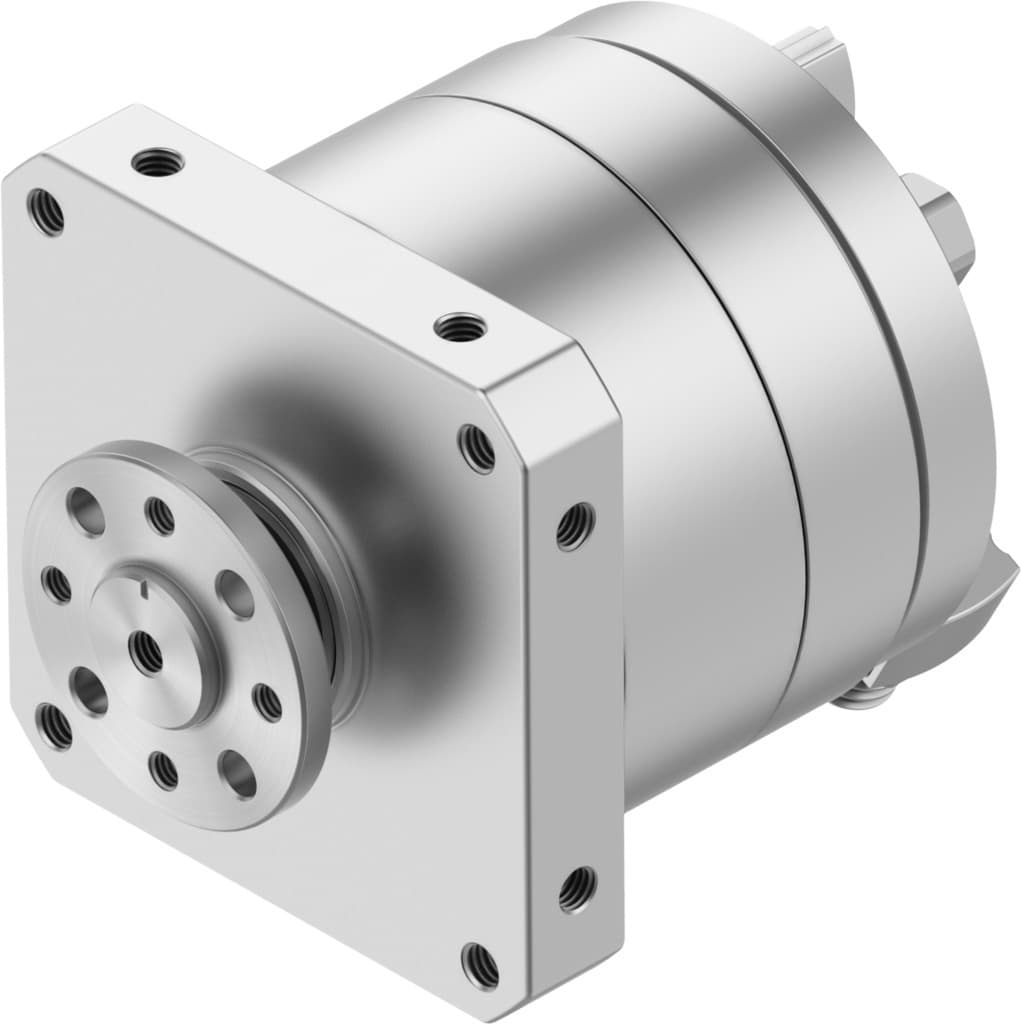

dsm-t-16-270-p-fw-a-b
Selling Points
- 1The DSM-T-16-270-P-FW-A-B offers a swivel angle of 0-270 degrees, providing flexibility in various industrial applications.
- 2This semi-rotary drive features a double-acting design, ensuring reliable operation and efficient movement in both directions.
- 3Powered by compressed air to ISO 8573-1:2010 standards, this drive ensures consistent performance and durability.
- 4Equipped with elastic cushioning rings at both ends, the DSM-T-16-270-P-FW-A-B provides smooth operation and reduces wear and tear.
- 5Weighing 690 grams, this drive is compact and lightweight, making it easy to integrate into various automation systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 16 | Cushioning angle | 1.4deg |
Adjustment range of swivel angle | 0deg 270deg | Swivel angle | 0deg 270deg |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Precision adjustment | -6deg | Mode of operation | Double-acting |
Structural design | Rotary vane | Position sensing | For proximity sensor |
Symbol | 00991265 | Operating pressure | 2.5bar 10bar |
Max. swivel frequency at 6?bar | 2Hz | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
Ambient temperature | -10°C 60°C | Max. axial force | 30N |
Max. radial force | 75N | Theoretical torque at 6 bar | 5Nm |
Permissible mass moment of inertia | 0.01kgm2 | Product weight | 690g |
Type of mounting | With internal thread | Pneumatic connection | M5 |
Note on materials | RoHS-compliant | Drive shaft material | Steel Nickel-plated |
Seals material | TPE-U(PU) | Housing material | Wrought aluminum alloy |
Manufacturer ID | 1145093 |
Specifications may be subject to change without notice
