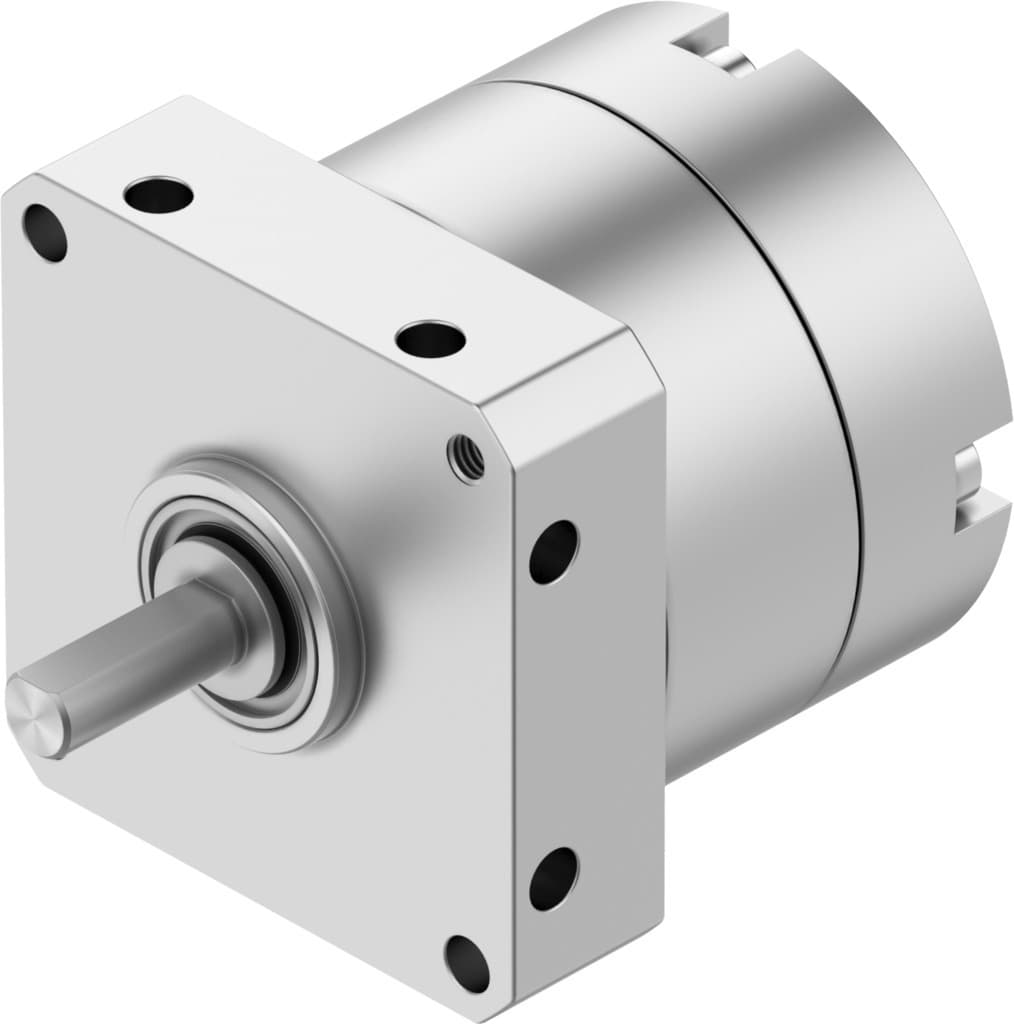

Festo DSM-T-8-180-P Semi-Rotary Drive: High Precision and Flexibility

Selling Points

1The Festo DSM-T-8-180-P offers an infinitely adjustable swivel angle from 0 to 180 degrees, ensuring precise positioning in a wide range of applications.
2Equipped with elastic cushioning rings at both ends, this semi-rotary drive provides smooth operation and reduces wear and tear, extending its lifespan.
3Designed to achieve torques of up to 80 Nm, the DSM-T-8-180-P is capable of handling high load requirements, making it suitable for demanding industrial applications.
4Compatible with compressed air to ISO 8573-1:2010 [7:4:4], this drive ensures reliable operation in various environments, including those with specific air quality standards.
5Built with high-alloy stainless steel for the drive shaft and TPE-U(PU) for seals, the DSM-T-8-180-P offers robust construction and durability, ensuring long-term performance.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Size	8	Cushioning angle	0.5deg
Swivel angle	0deg 180deg	Cushioning	Elastic cushioning rings/pads at both ends
Mounting position	Any	Mode of operation	Double-acting
Structural design	Rotary vane	Position sensing	None
Symbol	00991265	Operating pressure	4bar 8bar
Max. swivel frequency at 6?bar	3Hz	Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media	Operation with oil lubrication possible (required for further use)	LABS (PWIS) conformity	VDMA24364-B2-L
Ambient temperature	0°C 60°C	Theoretical torque at 6 bar	0.7Nm
Permissible mass moment of inertia	0.0013kgm2	Product weight	110g
Type of mounting	With internal thread	Pneumatic connection	M3
Note on materials	RoHS-compliant	Drive shaft material	High-alloy stainless steel
Seals material	TPE-U(PU)	Housing material	Aluminum Anodized
Manufacturer ID	1564407

Specifications may be subject to change without notice
