Product Model

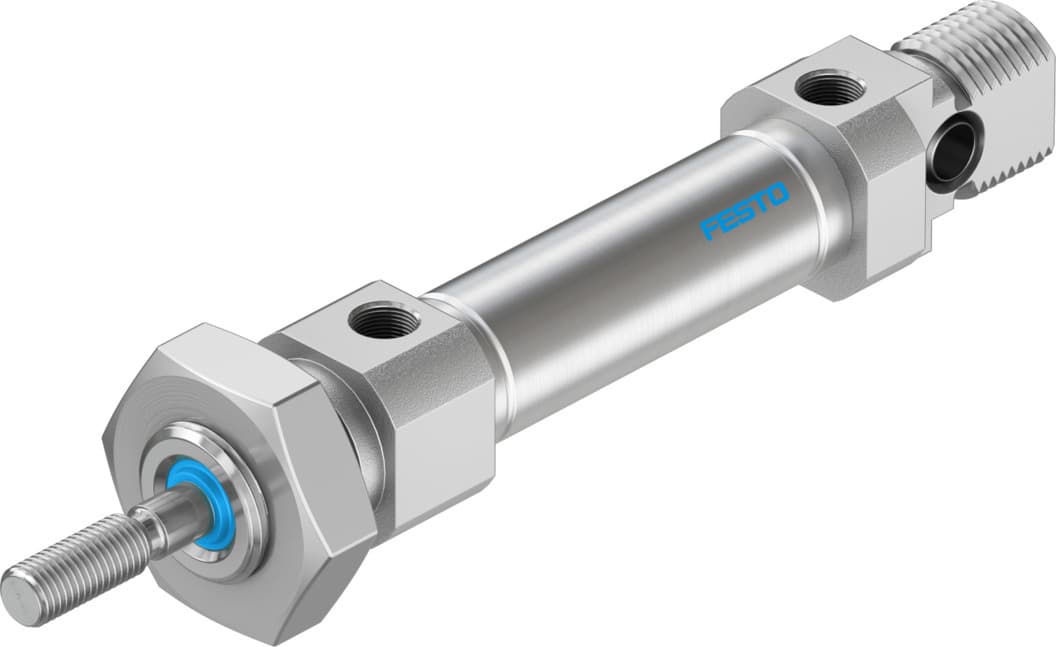

dsnu-10- -f1a-
Selling Points
- 1High-Quality Materials: The Festo DSNU Series cylinders are made from high-alloy stainless steel for the piston rod and wrought aluminum alloy for the cover, ensuring durability and resistance to corrosion.
- 2Precision Engineering: These cylinders are designed with precision to ensure smooth and reliable operation across various industrial settings, making them a preferred choice for professionals.
- 3Versatile Applications: The DSNU Series is suitable for a wide range of applications, from general automation to specific industrial processes, due to its versatility and adaptability.
- 4Efficient Operation: With operating pressures ranging from 0.15 to 1 MPa, these cylinders provide efficient operation and consistent performance in various conditions.
- 5Compliance with Standards: The Festo DSNU Series conforms to standard CETOP and ISO 8573-1:2010, ensuring compliance with industry standards for pneumatic systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 1mm 100mm | Piston diameter | 10 mm |
Piston rod thread | M4 | Cushioning | Elastic cushioning rings/pads at both ends |
Mounting position | Any | Conforms to standard | CETOP RP 52 P ISO 6432 |
Structural design | Piston Piston rod Cylinder barrel | Position sensing | For proximity sensor |
Symbol | 00991217 | Variants | Metals with copper, zinc or nickel by mass as main constituent are excluded from use. Exceptions are nickel in steel, chemically nickel-plated surfaces, printed circuit boards, cables, electrical plug connectors and coils. Extended external thread piston rod Piston rod with external thread shortened at one end Extended piston rod Axial supply port Lateral supply port Through piston rod |
Operating pressure | 1.5bar 10bar | Mode of operation | Double-acting |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Suitability for the production of Li-ion batteries | Metals with more than 1% by mass of copper, zinc or nickel are excluded from use.The exceptions are nickel in steel, chemically nickel-plated surfaces, circuit boards, cables, electrical plug connectors and coils | Cleanroom class | Class 6 according to ISO 14644-1 |
Ambient temperature | -20°C 80°C | Theoretical force at 6 bar, retracting | 39.6N |
Theoretical force at 6 bar, advancing | 47.1N | Moving mass at 0?mm stroke | 8.5g |
Additional moving mass per 10?mm stroke | 1g | Basic weight with 0?mm stroke | 37.3g |
Additional weight per 10?mm stroke | 2.7g | Type of mounting | With accessories |
Pneumatic connection | M5 | Note on materials | RoHS-compliant |
Cover material | Wrought aluminum alloy, anodized | Seals material | TPE-U(PU) |
Piston rod material | High-alloy stainless steel | Material of cylinder barrel | High-alloy stainless steel |
Manufacturer ID | 8149443 |
Specifications may be subject to change without notice
