Product Model

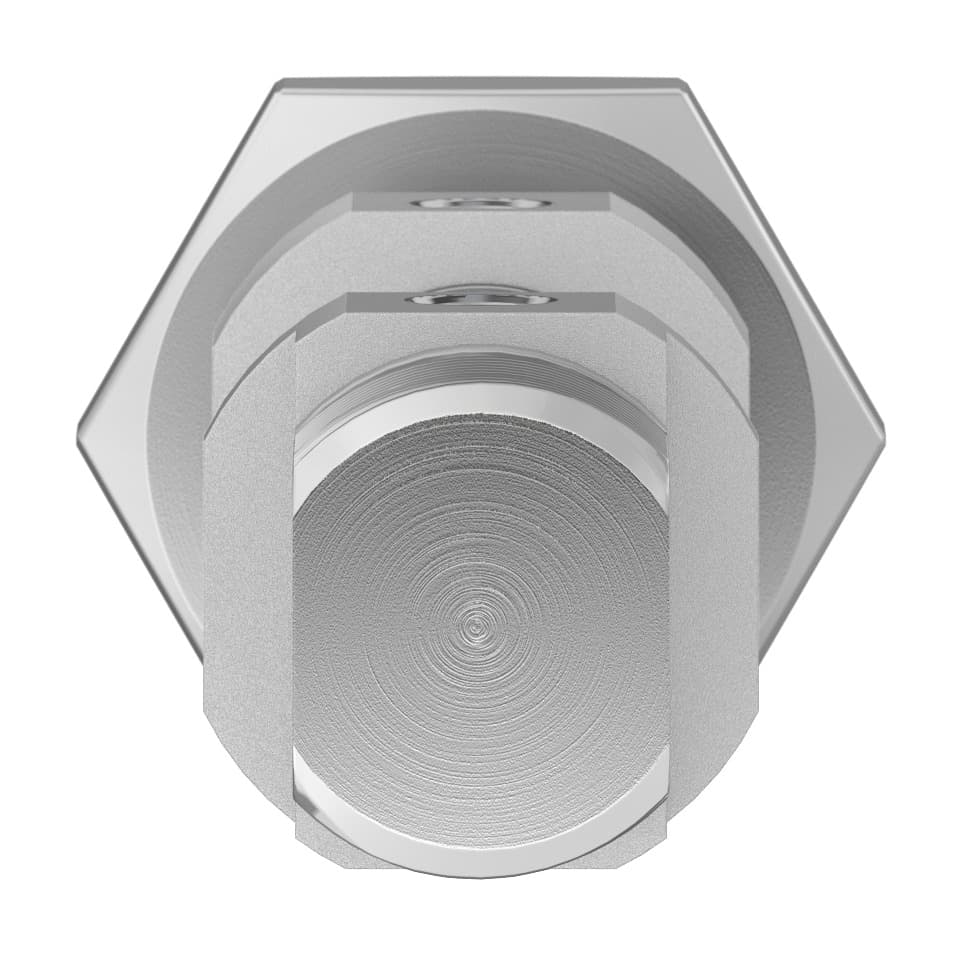

dsnu-12-10-p-a
Selling Points
- 1The DSNU-12-10-P-A pneumatic cylinder is engineered for precise and efficient automation, ensuring reliable performance in various industrial applications.
- 2With a stroke length of 10 mm and a piston diameter of 12 mm, this cylinder offers a compact design that fits seamlessly into tight spaces, making it ideal for space-constrained environments.
- 3The cylinder operates within a pressure range of 0.15 MPa to 1 MPa (1.5 bar to 10 bar), providing flexibility in various pneumatic systems and applications.
- 4Made from high-alloy stainless steel for the piston rod and wrought aluminum alloy for the cover, this cylinder offers moderate corrosion resistance, suitable for industrial environments.
- 5Featuring elastic cushioning rings/plates at both ends, the DSNU-12-10-P-A ensures smooth operation and easy installation, reducing maintenance costs and downtime.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 10mm | Piston diameter | 12 mm |
Piston rod thread | M6 | Cushioning | Elastic cushioning rings/pads at both ends |
Mounting position | Any | Conforms to standard | CETOP RP 52 P ISO 6432 |
Piston rod end | External thread | Structural design | Piston Piston rod Cylinder barrel |
Position sensing | For proximity sensor | Symbol | 00991217 |
Variants | Piston rod at one end | Operating pressure | 1.5bar 10bar |
Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 6 according to ISO 14644-1 |
Ambient temperature | -20°C 80°C | Impact energy in the end positions | 0.07J |
Theoretical force at 6 bar, retracting | 50.9N | Theoretical force at 6 bar, advancing | 67.9N |
Moving mass at 0?mm stroke | 18.5g | Additional moving mass per 10?mm stroke | 2g |
Basic weight with 0?mm stroke | 75g | Additional weight per 10?mm stroke | 4g |
Type of mounting | With accessories | Pneumatic connection | M5 |
Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy Plain anodized |
Seals material | NBR TPE-U(PU) | Piston rod material | High-alloy stainless steel |
Material of cylinder barrel | High-alloy stainless steel | Manufacturer ID | 19189 |
Specifications may be subject to change without notice
