Product Model

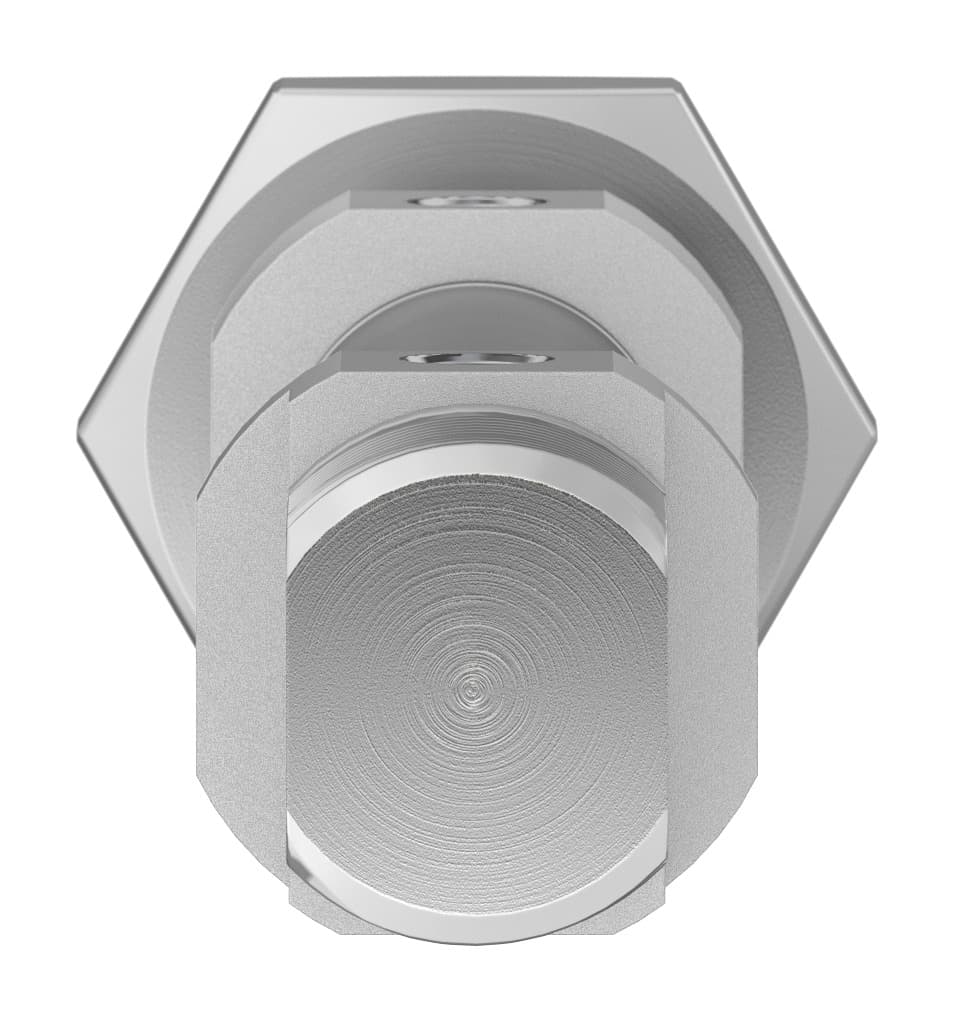

dsnu-12-40-p-a
Selling Points
- 1The Festo DSNU-12-40-P-A cylinder is made from high-alloy stainless steel, ensuring durability and resistance to corrosion.
- 2Compliant with CETOP RP 52 P and ISO 6432 standards, this cylinder offers standardized dimensions for easy integration into various automation systems.
- 3Designed for double acting operation, this cylinder provides balanced forces in both directions, enhancing its versatility in applications.
- 4The DSNU-12-40-P-A operates effectively within a pressure range of 1.5 to 10 bar, making it suitable for various industrial applications.
- 5With a stroke length of 40 mm and a piston diameter of 12 mm, this cylinder offers a compact design that fits well in tight spaces, making it ideal for precision automation tasks.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 40mm | Piston diameter | 12 mm |
Piston rod thread | M6 | Cushioning | Elastic cushioning rings/pads at both ends |
Mounting position | Any | Conforms to standard | CETOP RP 52 P ISO 6432 |
Piston rod end | External thread | Structural design | Piston Piston rod Cylinder barrel |
Position sensing | For proximity sensor | Symbol | 00991217 |
Variants | Piston rod at one end | Operating pressure | 1.5bar 10bar |
Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 6 according to ISO 14644-1 |
Ambient temperature | -20°C 80°C | Impact energy in the end positions | 0.07J |
Theoretical force at 6 bar, retracting | 50.9N | Theoretical force at 6 bar, advancing | 67.9N |
Moving mass at 0?mm stroke | 18.5g | Additional moving mass per 10?mm stroke | 2g |
Basic weight with 0?mm stroke | 75g | Additional weight per 10?mm stroke | 4g |
Type of mounting | With accessories | Pneumatic connection | M5 |
Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy Plain anodized |
Seals material | NBR TPE-U(PU) | Piston rod material | High-alloy stainless steel |
Material of cylinder barrel | High-alloy stainless steel | Manufacturer ID | 19191 |
Specifications may be subject to change without notice
