Product Model

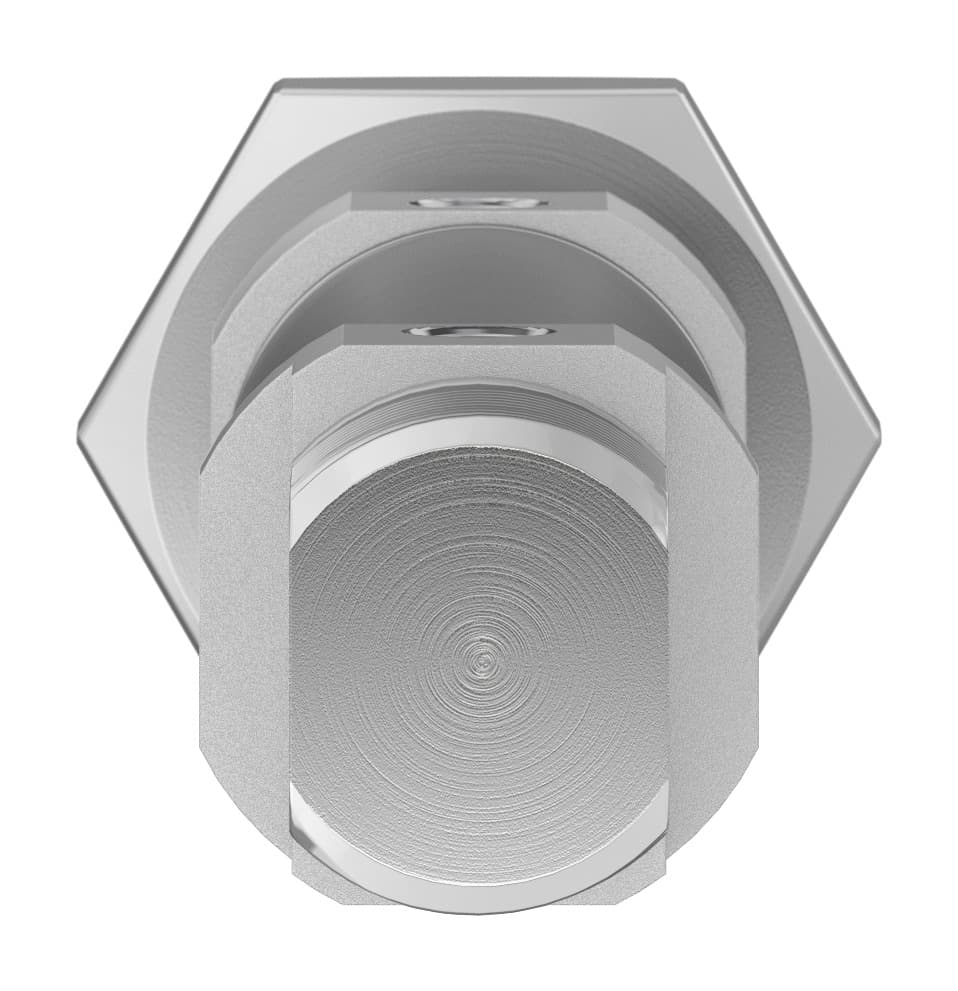

dsnu-16-20-pps-a
Selling Points
- 1The Festo DSNU-16-20-PPS-A pneumatic cylinder features a stroke length of 20 mm, making it ideal for applications requiring precise movement and control.
- 2With a piston diameter of 16 mm and a piston rod thread of M6, this cylinder offers robust and reliable operation in various industrial settings.
- 3The cylinder is equipped with self-adjusting pneumatic end-position cushioning, ensuring smooth operation and minimizing wear and tear.
- 4Designed to meet international standards, the DSNU-16-20-PPS-A conforms to CETOP RP 52 P and ISO 6432, ensuring compatibility and reliability in global applications.
- 5Operating within a pressure range of 0.1 MPa to 1 MPa (1 bar to 10 bar), this cylinder is versatile and suitable for a wide range of industrial automation tasks.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 20mm | Piston diameter | 16 mm |
Piston rod thread | M6 | Cushioning | Self-adjusting pneumatic end-position cushioning |
Mounting position | Any | Conforms to standard | CETOP RP 52 P ISO 6432 |
Piston rod end | External thread | Structural design | Piston Piston rod Cylinder barrel |
Position sensing | For proximity sensor | Variants | Piston rod at one end |
Operating pressure | 1bar 10bar | Mode of operation | Double-acting |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Cleanroom class | Class 6 according to ISO 14644-1 | Ambient temperature | -20°C 80°C |
Impact energy in the end positions | 0.15J | Cushioning length | 12mm |
Theoretical force at 6 bar, retracting | 103.7N | Theoretical force at 6 bar, advancing | 120.6N |
Moving mass at 0?mm stroke | 23g | Additional moving mass per 10?mm stroke | 2g |
Basic weight with 0?mm stroke | 89.9g | Additional weight per 10?mm stroke | 4.6g |
Type of mounting | With accessories | Pneumatic connection | M5 |
Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy Plain anodized |
Seals material | NBR TPE-U(PU) | Piston rod material | High-alloy stainless steel |
Material of cylinder barrel | High-alloy stainless steel | Manufacturer ID | 1908276 |
Specifications may be subject to change without notice
