Product Model
dsnu-25-300-ppv-a
Selling Points

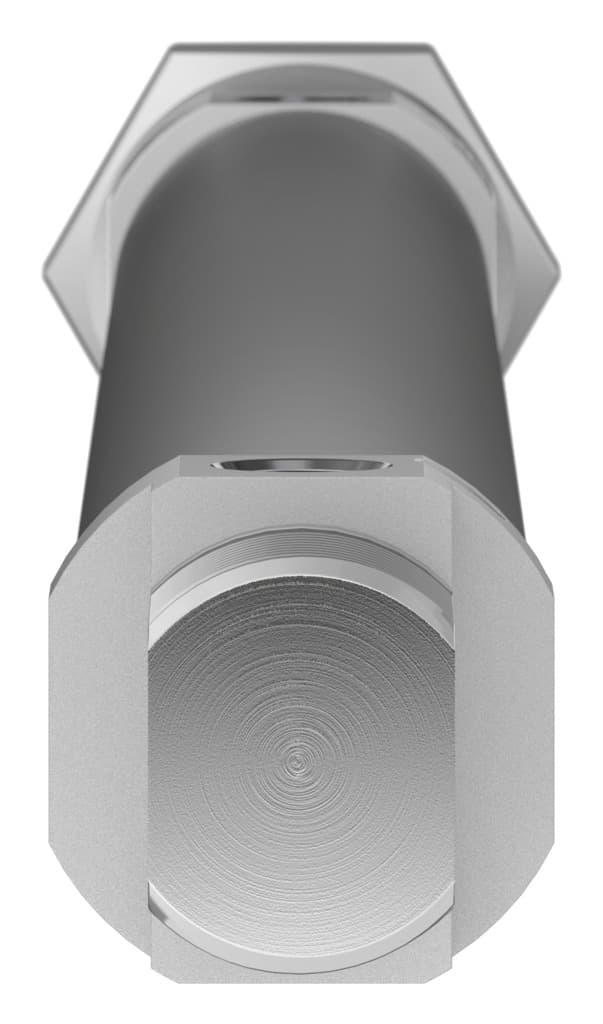

- 1The Festo DSNU-25-300-PPV-A cylinder is based on DIN ISO 6432 standards, ensuring high precision and reliability in industrial automation applications.
- 2This cylinder features adjustable end-position cushioning (PPV) for enhanced performance and durability, making it suitable for a wide range of industrial tasks.
- 3With a stroke length of 300 mm and a piston diameter of 25 mm, the DSNU-25-300-PPV-A offers precise control and efficient operation in various mounting positions.
- 4The cylinder's M10x1.25 piston rod thread provides easy integration with other Festo components, ensuring seamless system operation and minimal setup time.
- 5Designed for double-acting operation with compressed air, this cylinder is ideal for applications requiring high precision and reliability, such as proximity sensing and positioning systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 300mm | Piston diameter | 25 mm |
Piston rod thread | M10x1.25 | Cushioning | Pneumatic cushioning, adjustable at both ends |
Mounting position | Any | Conforms to standard | CETOP RP 52 P ISO 6432 |
Piston rod end | External thread | Structural design | Piston Piston rod Cylinder barrel |
Position sensing | For proximity sensor | Symbol | 00991235 |
Variants | Piston rod at one end | Operating pressure | 1bar 10bar |
Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 6 according to ISO 14644-1 |
Ambient temperature | -20°C 80°C | Impact energy in the end positions | 0.3J |
Cushioning length | 17mm | Theoretical force at 6 bar, retracting | 247.4N |
Theoretical force at 6 bar, advancing | 294.5N | Moving mass at 0?mm stroke | 71g |
Additional moving mass per 10?mm stroke | 6g | Basic weight with 0?mm stroke | 238g |
Additional weight per 10?mm stroke | 11g | Type of mounting | With accessories |
Pneumatic connection | G1/8 | Note on materials | RoHS-compliant |
Cover material | Wrought aluminum alloy Plain anodized | Seals material | NBR TPE-U(PU) |
Piston rod material | High-alloy stainless steel | Material of cylinder barrel | High-alloy stainless steel |
Manufacturer ID | 19253 |
Specifications may be subject to change without notice
