Product Model

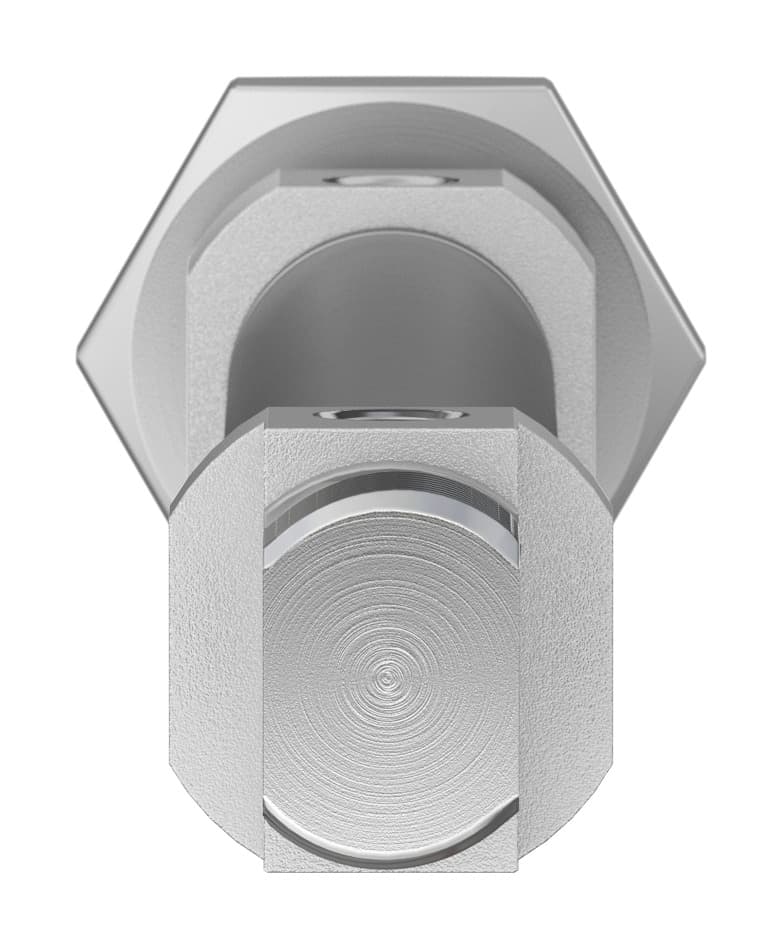

dsnu-3/8"-3"-p-a
Selling Points
- 1The Festo DSNU-3/8"-3"-P-A pneumatic cylinder is built with high-alloy steel for the piston rod and stainless steel for the cylinder barrel, ensuring durability and resistance to corrosion.
- 2Equipped with elastic cushioning at both ends, this cylinder provides smooth operation and reduces shock loads, extending the lifespan of the component.
- 3The built-in magnet allows for position sensing via a magnetic proximity sensor, enhancing precision and control in automation applications.
- 4Suitable for a wide range of industrial environments, the DSNU-3/8"-3"-P-A cylinder is ideal for use in normal industrial settings, including those with coolants or lubricating agents.
- 5With standardized dimensions and mounting interfaces, the Festo DSNU-3/8"-3"-P-A cylinder simplifies integration into existing automation systems, reducing installation time and complexity.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 76.2mm | Piston diameter | 3/8" |
Piston rod thread | 6-32 UNC-2A | Based on norm | ISO 6432 |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Piston rod end | External thread | Structural design | Piston Piston rod |
Position sensing | For proximity sensor | Symbol | 00991217 |
Variants | Piston rod at one end | Operating pressure | 1bar 10bar |
Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -20°C 80°C |
Impact energy in the end positions | 0.05003J | Theoretical force at 6 bar, retracting | 39.589N |
Theoretical force at 6 bar, advancing | 47.151N | Moving mass at 0?mm stroke | 8.505g |
Additional moving mass per 10?mm stroke | 0.992g | Basic weight with 0?mm stroke | 37.309g |
Additional weight per 10?mm stroke | 2.693g | Type of mounting | With accessories |
Pneumatic connection | 10-32 UNF-2B | Cover material | Wrought aluminum alloy |
Seals material | NBR TPE-U(PU) | Piston rod material | High-alloy stainless steel |
Material of cylinder barrel | High-alloy stainless steel | Manufacturer ID | 546401 |
Specifications may be subject to change without notice
