Product Model
dsnu-40-80-p-a
Selling Points

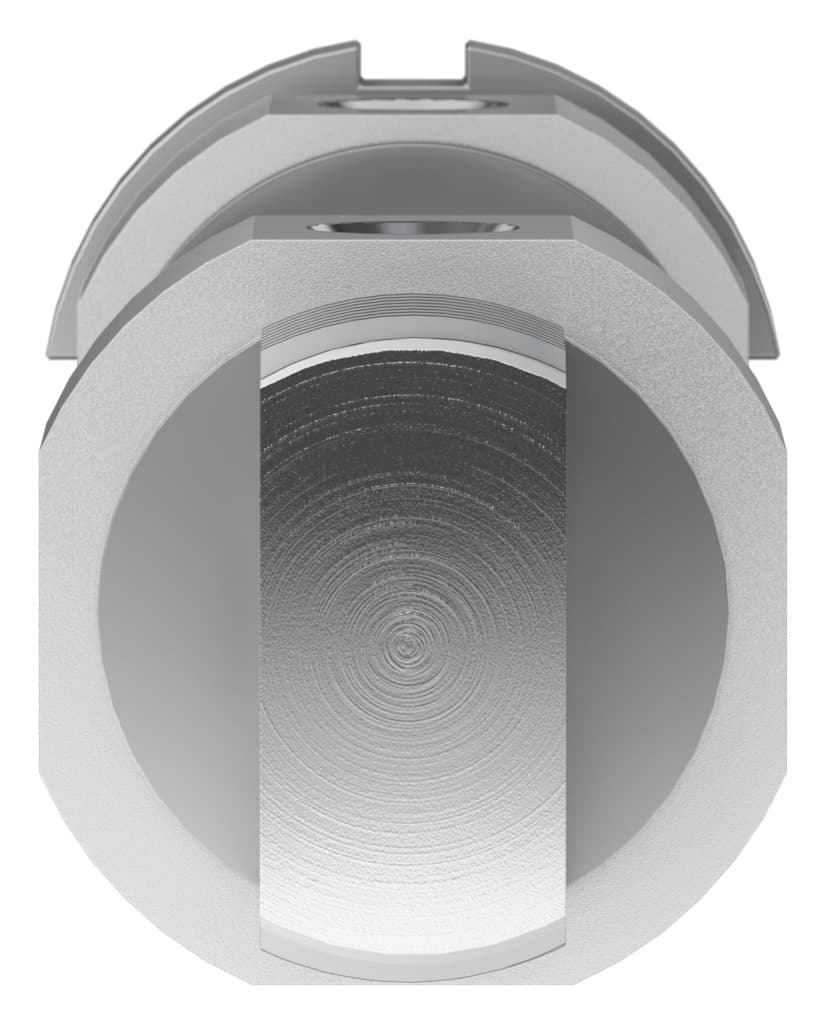

- 1The Festo DSNU-40-80-P-A round cylinder is made from high-alloy stainless steel for the cylinder barrel and high-alloy steel for the piston rod, ensuring durability and resistance to corrosion.
- 2Equipped with elastic cushioning rings/plates at both ends, this cylinder provides smooth and stick-slip-free operation, making it suitable for slow stroke movements.
- 3The cylinder features position detection via proximity switch, allowing for precise control and monitoring of the piston's movement.
- 4The DSNU-40-80-P-A offers optional mounting positions, making it adaptable to various industrial setups and configurations.
- 5This cylinder operates with compressed air to ISO 8573-1:2010 and meets VDMA24364-B1/B2-L standards for LABS (PWIS) conformity, ensuring compatibility with a wide range of industrial applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 80mm | Piston diameter | 40 mm |
Piston rod thread | M12x1.25 | Cushioning | Elastic cushioning rings/pads at both ends |
Mounting position | Any | Structural design | Piston Piston rod Cylinder barrel |
Position sensing | For proximity sensor | Symbol | 00991217 |
Operating pressure | 1bar 10bar | Mode of operation | Double-acting |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -20°C 80°C | Theoretical force at 6 bar, retracting | 633.3N |
Theoretical force at 6 bar, advancing | 752.9N | Moving mass | 358g |
Product weight | 853g | Type of mounting | With accessories |
Pneumatic connection | G1/4 | Note on materials | RoHS-compliant |
Cover material | Wrought aluminum alloy | Seals material | NBR TPE-U(PU) |
Piston rod material | High-alloy steel | Material of cylinder barrel | High-alloy stainless steel |
Manufacturer ID | 195993 |
Specifications may be subject to change without notice
