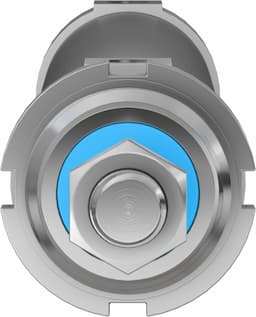

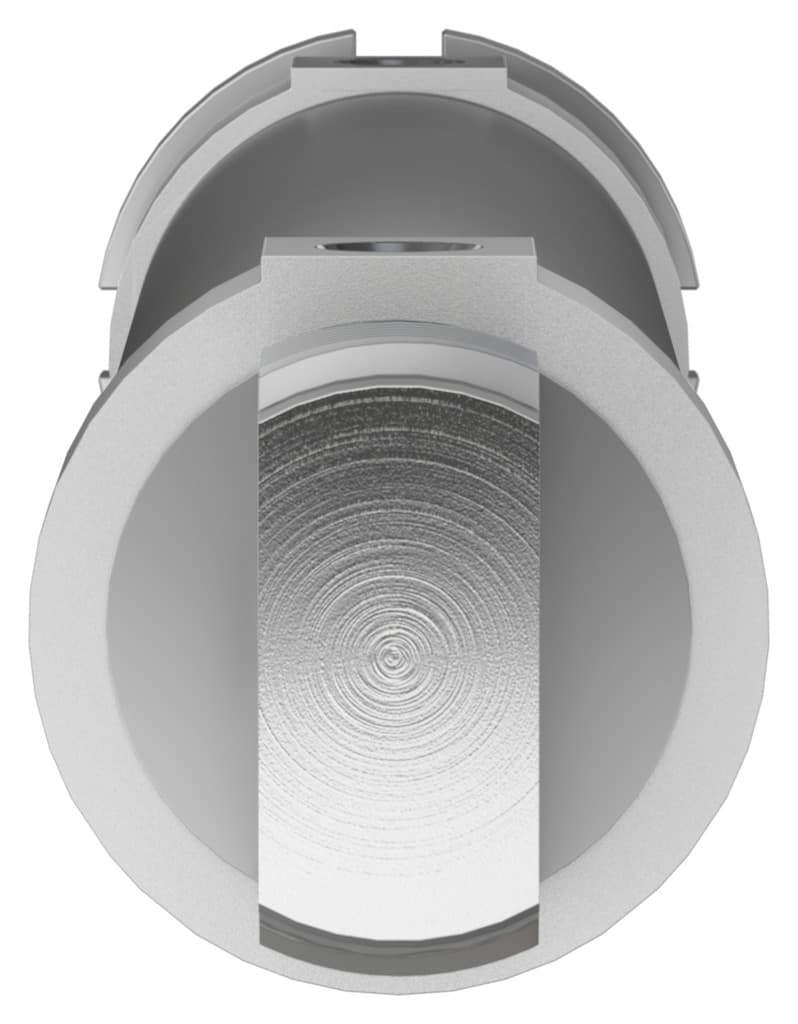

Festo DSNU-50-250-P-A Round Cylinder - High-Quality Pneumatic Solutions

Selling Points

1The Festo DSNU-50-250-P-A round cylinder offers a 250mm stroke and a 50mm piston diameter, making it suitable for various industrial applications.
2This cylinder features adjustable pneumatic cushioning at both ends, ensuring smooth and controlled movements.
3With a double-acting mode of operation, the DSNU-50-250-P-A can handle both forward and return strokes with equal force, enhancing its versatility.
4The cylinder is designed for use with compressed air to ISO 8573-1:2010 standards, ensuring reliable operation in a wide range of industrial environments.
5Constructed from high-quality materials including wrought aluminum alloy, high-alloy steel, and high-alloy stainless steel, this cylinder provides excellent corrosion resistance and durability.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	250mm	Piston diameter	50 mm
Piston rod thread	M16x1.5	Cushioning	Elastic cushioning rings/pads at both ends
Mounting position	Any	Structural design	Piston Piston rod Cylinder barrel
Position sensing	For proximity sensor	Symbol	00991217
Operating pressure	1bar 10bar	Mode of operation	Double-acting
Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]	Information on operating and pilot media	Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)	2 - Moderate corrosion stress	LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	-20°C 80°C	Theoretical force at 6 bar, retracting	989.6N
Theoretical force at 6 bar, advancing	1178.1N	Moving mass	1038g
Product weight	2087g	Type of mounting	With accessories
Pneumatic connection	G1/4	Note on materials	RoHS-compliant
Cover material	Wrought aluminum alloy	Seals material	NBR TPE-U(PU)
Piston rod material	High-alloy steel	Material of cylinder barrel	High-alloy stainless steel
Manufacturer ID	196008

Specifications may be subject to change without notice
