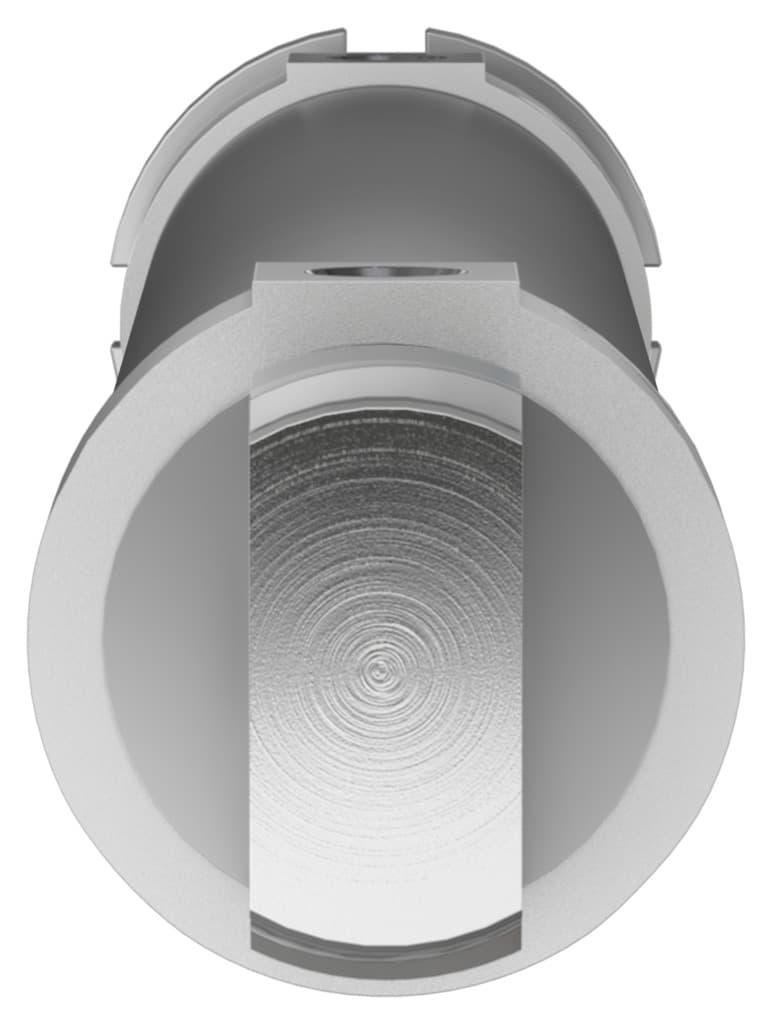

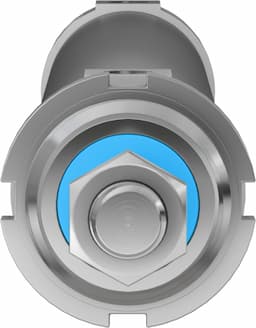

Product Model
dsnu-50-320-ppv-a
Selling Points
- 1The Festo DSNU-50-320-PPV-A pneumatic cylinder offers adjustable cushioning at both ends, ensuring optimal performance and longevity in various industrial applications.
- 2With a stroke length of 320 mm and a piston diameter of 50 mm, this cylinder provides a reliable and precise motion control solution for your automation needs.
- 3The DSNU-50-320-PPV-A features double-acting operation, allowing for both forward and backward movement, making it versatile for a wide range of applications.
- 4Constructed with high-alloy stainless steel for the cylinder barrel and high-alloy steel for the piston rod, this cylinder ensures durability and resistance to corrosion.
- 5Equipped with a built-in magnet for position sensing via proximity switch, the DSNU-50-320-PPV-A enhances accuracy and efficiency in your automation processes.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 320mm | Piston diameter | 50 mm |
Piston rod thread | M16x1.5 | Cushioning | Pneumatic cushioning, adjustable at both ends |
Mounting position | Any | Structural design | Piston Piston rod Cylinder barrel |
Position sensing | For proximity sensor | Symbol | 00991235 |
Operating pressure | 1bar 10bar | Mode of operation | Double-acting |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -20°C 80°C | Cushioning length | 20mm |
Theoretical force at 6 bar, retracting | 989.6N | Theoretical force at 6 bar, advancing | 1178.1N |
Moving mass | 1213g | Product weight | 2367g |
Type of mounting | With accessories | Pneumatic connection | G1/4 |
Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy |
Seals material | NBR TPE-U(PU) | Piston rod material | High-alloy steel |
Material of cylinder barrel | High-alloy stainless steel | Manufacturer ID | 196049 |
Specifications may be subject to change without notice
