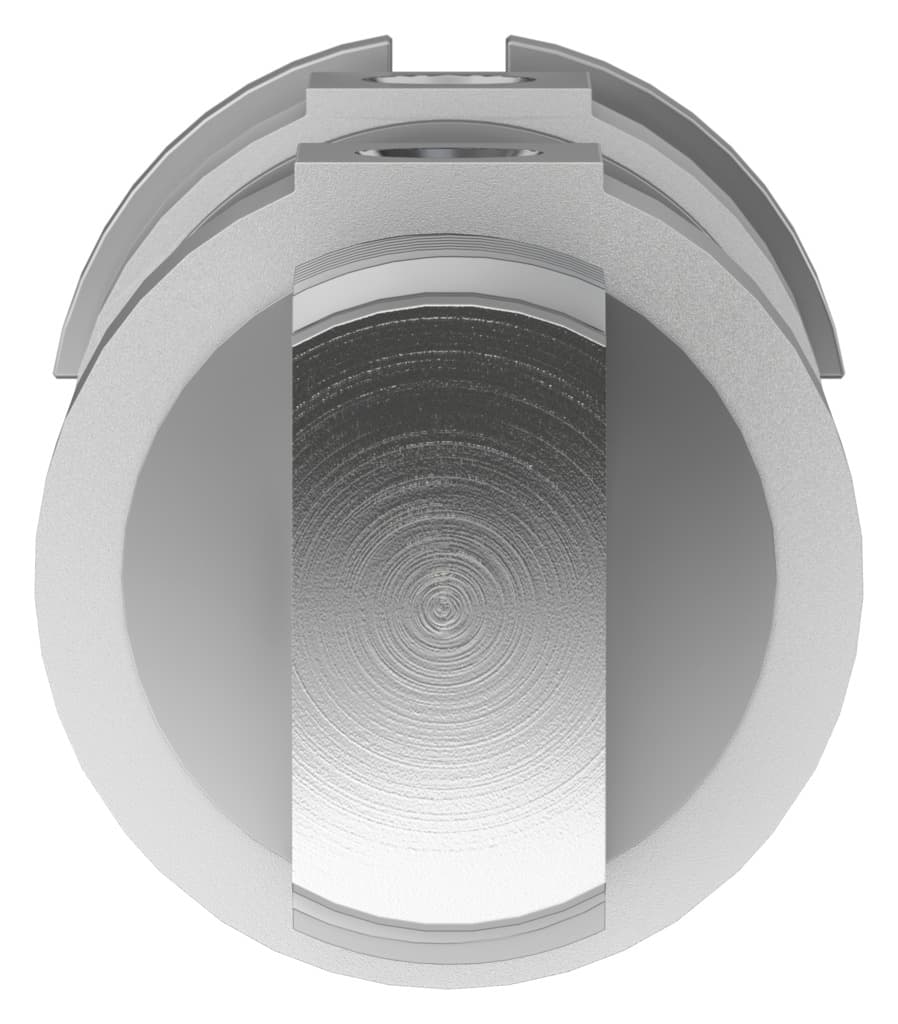

Festo DSNU-50-40-P-A Pneumatic Round Cylinder - High-Quality Automation Solutions

Selling Points

1The Festo DSNU-50-40-P-A pneumatic round cylinder offers a 50 mm stroke and a 40 mm piston diameter, making it suitable for a variety of automation tasks.
2This cylinder features elastic cushioning rings/plates at both ends, ensuring smooth and controlled movements.
3The DSNU-50-40-P-A is designed for slow stroke movements, providing a constant and stick-slip-free operation over the full stroke of the cylinder.
4With a piston rod thread of M16x1.5, this cylinder offers a robust and reliable connection for your automation systems.
5The cylinder barrel is made from high-alloy stainless steel, providing excellent corrosion resistance and durability in industrial environments.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	40mm	Piston diameter	50 mm
Piston rod thread	M16x1.5	Cushioning	Elastic cushioning rings/pads at both ends
Mounting position	Any	Structural design	Piston Piston rod Cylinder barrel
Position sensing	For proximity sensor	Symbol	00991217
Operating pressure	1bar 10bar	Mode of operation	Double-acting
Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]	Information on operating and pilot media	Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)	2 - Moderate corrosion stress	LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	-20°C 80°C	Theoretical force at 6 bar, retracting	989.6N
Theoretical force at 6 bar, advancing	1178.1N	Moving mass	513g
Product weight	1247g	Type of mounting	With accessories
Pneumatic connection	G1/4	Note on materials	RoHS-compliant
Cover material	Wrought aluminum alloy	Seals material	NBR TPE-U(PU)
Piston rod material	High-alloy steel	Material of cylinder barrel	High-alloy stainless steel
Manufacturer ID	196001

Specifications may be subject to change without notice
