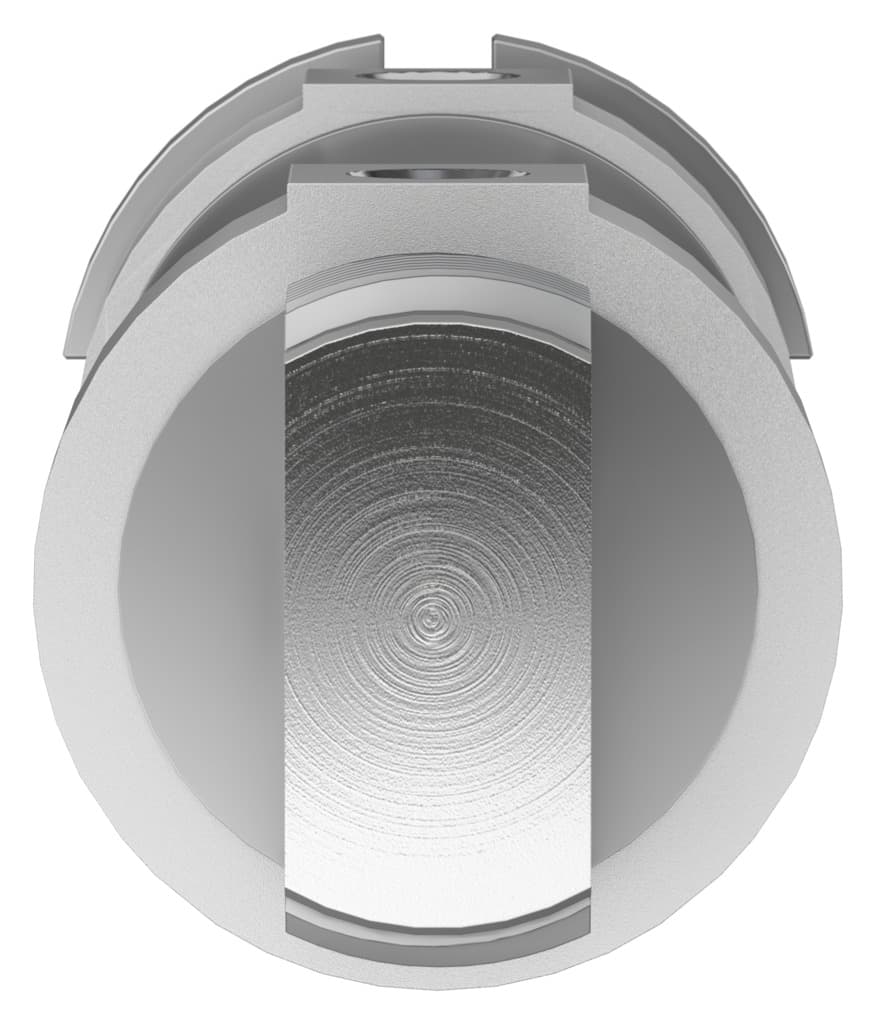

Festo DSNU-50-80-P-A Pneumatic Cylinder - High-Quality Performance

Selling Points

1The DSNU-50-80-P-A pneumatic cylinder is equipped with flexible cushioning rings at both ends, ensuring smooth and controlled movements.
2This cylinder offers various mounting options, including the possibility of using additional mounting components, providing flexibility in installation.
3Made from high-alloy steel and featuring a corrosion resistance class of CRC 2, the DSNU-50-80-P-A is designed to withstand moderate corrosion stress.
4Equipped with proximity sensors, this cylinder allows for precise position detection, making it suitable for applications requiring accurate positioning.
5Ideal for slow stroke movements, the DSNU-50-80-P-A ensures constant, stick-slip-free speed over the full stroke of the cylinder, reducing wear and tear.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	80mm	Piston diameter	50 mm
Piston rod thread	M16x1.5	Cushioning	Elastic cushioning rings/pads at both ends
Mounting position	Any	Structural design	Piston Piston rod Cylinder barrel
Position sensing	For proximity sensor	Symbol	00991217
Operating pressure	1bar 10bar	Mode of operation	Double-acting
Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]	Information on operating and pilot media	Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)	2 - Moderate corrosion stress	LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	-20°C 80°C	Theoretical force at 6 bar, retracting	989.6N
Theoretical force at 6 bar, advancing	1178.1N	Moving mass	613g
Product weight	1407g	Type of mounting	With accessories
Pneumatic connection	G1/4	Note on materials	RoHS-compliant
Cover material	Wrought aluminum alloy	Seals material	NBR TPE-U(PU)
Piston rod material	High-alloy steel	Material of cylinder barrel	High-alloy stainless steel
Manufacturer ID	196003

Specifications may be subject to change without notice
