Product Model
dsrl-40-180-p-fw
Selling Points

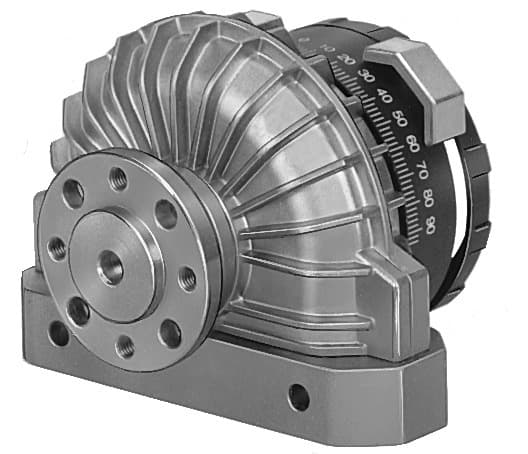

- 1The Festo DSRL-40-180-P-FW offers a 40mm rotary vane actuator with a hollow flanged shaft, providing high precision and flexibility in applications.
- 2With a swivel angle of 0 to 180 degrees, this semi-rotary drive can be adjusted to meet various operational needs.
- 3Equipped with elastic cushioning rings/plates at both ends, the DSRL-40-180-P-FW ensures smooth operation and reduces vibrations.
- 4Designed for use with compressed air to ISO 8573-1:2010, this drive is suitable for a wide range of industrial applications.
- 5Built with a nickel-plated steel drive shaft and NBR seals, the DSRL-40-180-P-FW offers robust construction and durability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 40 | Cushioning angle | 0.9deg |
Adjustment range of swivel angle | 0deg 180deg | Swivel angle | 0deg 180deg |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Mode of operation | Double-acting | Structural design | Rotary vane |
Position sensing | None | Symbol | 00991265 |
Operating pressure | 1.5bar 8bar | Max. swivel frequency at 6?bar | 3Hz |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | LABS (PWIS) conformity | VDMA24364-B2-L |
Ambient temperature | -10°C 60°C | Theoretical torque at 6 bar | 20Nm |
Product weight | 2400g | Type of mounting | With through-hole |
Pneumatic connection | G1/4 | Drive shaft material | Steel Nickel-plated |
Seals material | NBR | Manufacturer ID | 30658 |
Specifications may be subject to change without notice
