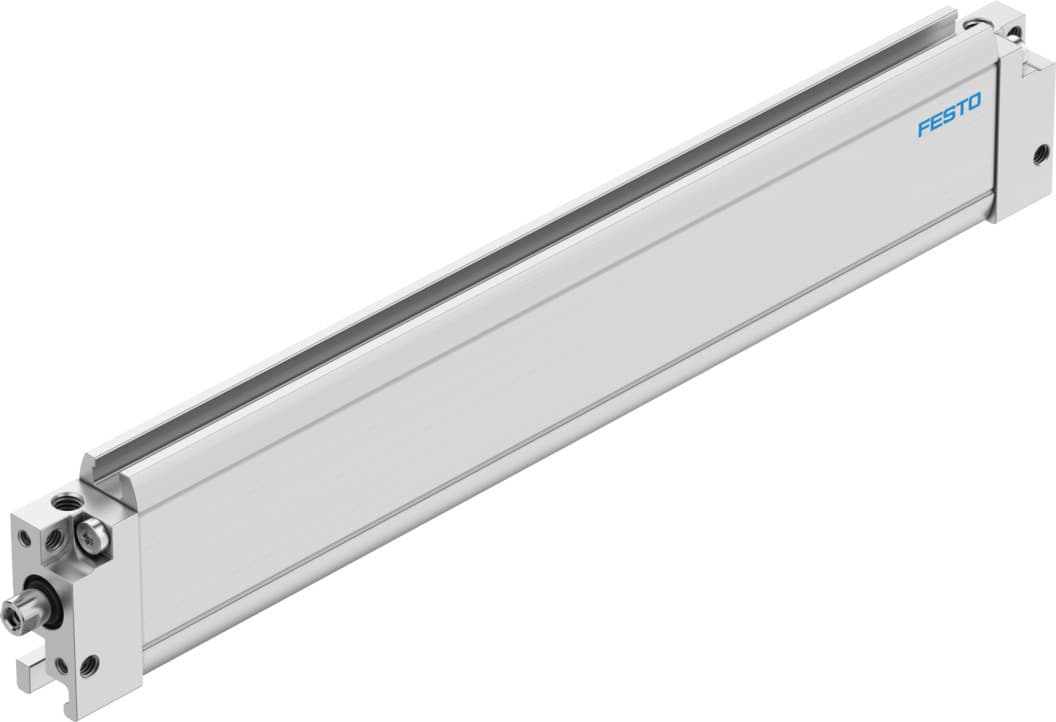

Festo DZF-1/2"-6" Pneumatic Cylinder

Selling Points

1The Festo DZF-1/2"-6" pneumatic cylinder boasts a non-rotating oval piston, ensuring precise and reliable operation in various industrial settings.
2This cylinder is double-acting, allowing for both extension and retraction strokes, making it versatile for a wide range of applications.
3The DZF series offers extensive accessory options, including swivel flanges and magnetic proximity sensors, enhancing its usability and customization.
4With operating pressures up to 145 psi and ambient temperatures up to 302°F, this cylinder is designed to handle demanding industrial conditions.
5The cylinder features heat-resistant seals and flexible cushioning rings at both ends, ensuring durability and smooth operation.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	152.4mm	Piston diameter	1/2"
Max. angle of rotation of the piston rod +/-	2.5deg	Cushioning	Elastic cushioning rings/pads at both ends
Mode of operation	Double-acting	Symbol	00991217
Protection against torsion/guide	Oval piston	Operating pressure	1.6bar 10bar
Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]	Information on operating and pilot media	Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)	2 - Moderate corrosion stress	LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	-20°C 80°C	Theoretical force at 6 bar, retracting	51N
Theoretical force at 6 bar, advancing	68N	Moving mass at 0?mm stroke	12g
Additional moving mass per 10?mm stroke	270g	Additional weight per 10?mm stroke	2g
Basic weight with 0?mm stroke	96g	Pneumatic connection	10-32 UNF-2B
Cover material	Aluminum	Seals material	FPM TPE-U(PU)
Housing material	Wrought aluminum alloy	Piston rod material	High-alloy stainless steel
Manufacturer ID	194129
