Product Model

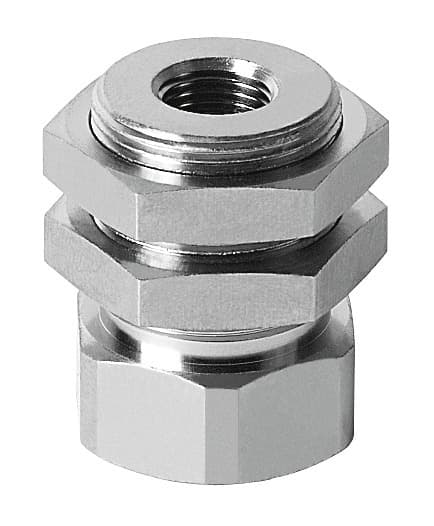

esh-ha-5-g
Selling Points
- 1Compact Design: The ESH-HA-5-G features a nominal width of 8 mm and a volume of 1.862 cm³, making it perfect for tight spaces.
- 2Versatile Mounting: With a lock nut for secure mounting, this suction cup holder can be positioned in any direction.
- 3Robust Construction: Made from high-quality materials like aluminum, brass, and tempered steel, ensuring durability and corrosion resistance.
- 4Easy Vacuum Connection: The vacuum connection is at the top, simplifying the assembly process and ensuring a secure fit.
- 5Wide Operating Range: Suitable for ambient temperatures between -10 °C and 60 °C, making it versatile for various environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Nominal width | 8mm | Volume | 1.862cm3 |
Mounting position | Any | Structural design | Vacuum connection at top |
Classification of suction cup holder | Size 5 | Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-A1-L |
Ambient temperature | -10°C 60°C | Product weight | 84g |
Type of mounting | With lock nut | Suction cup mounting | M10 |
Vacuum connection | G1/8 | Note on materials | RoHS-compliant |
Retaining bracket material | Aluminum Brass, nickel-plated POM Tempered steel High-alloy steel | Manufacturer ID | 189201 |
Specifications may be subject to change without notice
