Product Model

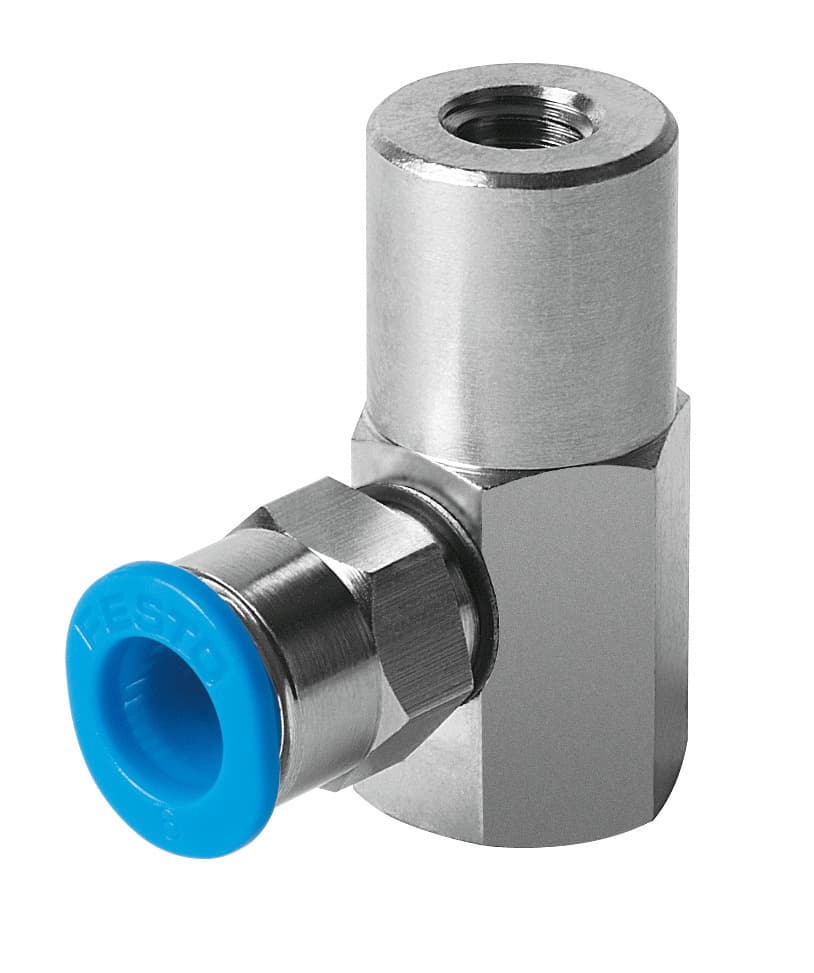

esh-hb-3-qs
Selling Points
- 1Compact Design: 3.3 mm nominal width and 0.519 cm³ volume.
- 2Versatile Mounting: Optional mounting position for flexible installation.
- 3High-Quality Materials: RoHS-compliant with NBR seals and aluminum retaining bracket.
- 4Reliable Vacuum Connection: QS-6 vacuum connection ensures strong suction.
- 5Temperature Stability: Operates between 0 °C and 60 °C ambient temperature range.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Nominal width | 3.3mm | Volume | 0.519cm3 |
Mounting position | Any | Structural design | Vacuum connection at side |
Classification of suction cup holder | Size 3 | Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-A1-L |
Ambient temperature | 0°C 60°C | Product weight | 29g |
Type of mounting | With internal thread | Suction cup mounting | M4 |
Vacuum connection | QS-6 | Note on materials | RoHS-compliant |
Seals material | NBR Steel | Retaining bracket material | Aluminum Brass, nickel-plated POM Tempered steel High-alloy steel |
Manufacturer ID | 189207 |
Specifications may be subject to change without notice
