Product Model

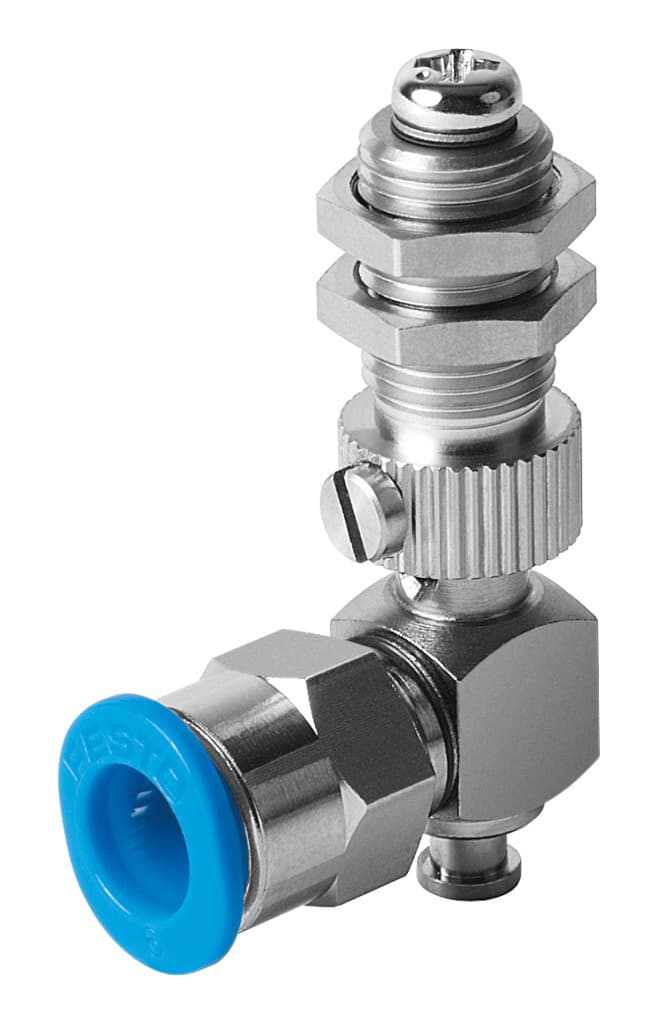

esh-hd-2-qs
Selling Points
- 1The ESH-HD-2-QS features a 3mm height compensator for stable suction cup operation.
- 2Made from high-alloy steel and nickel-plated brass for enhanced durability and corrosion resistance.
- 3Designed for vertical mounting with a vacuum port on the side for easy installation.
- 4Classified as CRC 1, indicating low corrosion stress and ensuring long-term reliability.
- 5Meets RoHS standards, ensuring environmental sustainability and compliance with regulations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Suction cup holder height compensator | 3mm | Nominal width | 1.8mm |
Volume | 0.417cm3 | Mounting position | Vertical |
Structural design | Vacuum connection at side with height compensation | Classification of suction cup holder | Size 2 |
Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-A1-L | Ambient temperature | 0°C 60°C |
Product weight | 15g | Type of mounting | With lock nut |
Suction cup mounting | Diameter 4 mm | Vacuum connection | QS-6 |
Note on materials | RoHS-compliant | Seals material | NBR Steel |
Retaining bracket material | Aluminum Brass, nickel-plated POM Tempered steel High-alloy steel | Manufacturer ID | 189235 |
Specifications may be subject to change without notice
