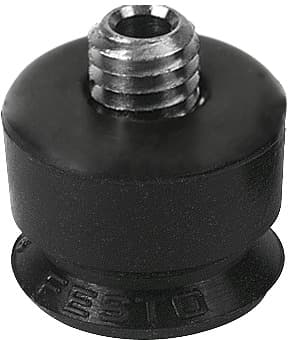

Product Model
ess-15-sna
Selling Points
- 1Meticulously designed for secure grip and efficient handling of workpieces.
- 2Prevents static buildup, ensuring reliable performance in various industrial applications.
- 3Operates effectively between -10 °C and 70 °C, making it versatile for different environments.
- 4Provides a holding force of 8.5 N at nominal operating pressure, ensuring secure workpiece handling.
- 5Meets RoHS standards, ensuring compliance with environmental regulations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Min. workpiece radius | 35mm | Nominal width | 2mm |
Suction cup diameter | 15mm | Suction cup volume | 0.208cm3 |
Connection position | Top | Mounting position | Any |
Special features | Anti-static | Symbol | 00991485 |
Classification of suction cup holder | Size 3 | Suction cup shape | Round, flat |
Operating pressure | -13.775psi 0psi | Nominal operating pressure | -10.15psi |
Surface resistance | 2.0E-4MOhm | Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-A1-L |
For use in the food industry | See supplementary material information | Ambient temperature | -10°C 70°C |
Holding force at nominal operating pressure | 8.5N | Lateral force at nominal operating pressure | 13.5N |
Product weight | 1.9g | Type of mounting | Via vacuum connection |
Vacuum connection | M4 | Color | Black/white dot |
Shore hardness | 50 +/- 5 | Material of screwed plug | Brass, nickel-plated |
Note on materials | RoHS-compliant | Suction cup material | NBR |
Manufacturer ID | 189293 |
Specifications may be subject to change without notice
