Product Model

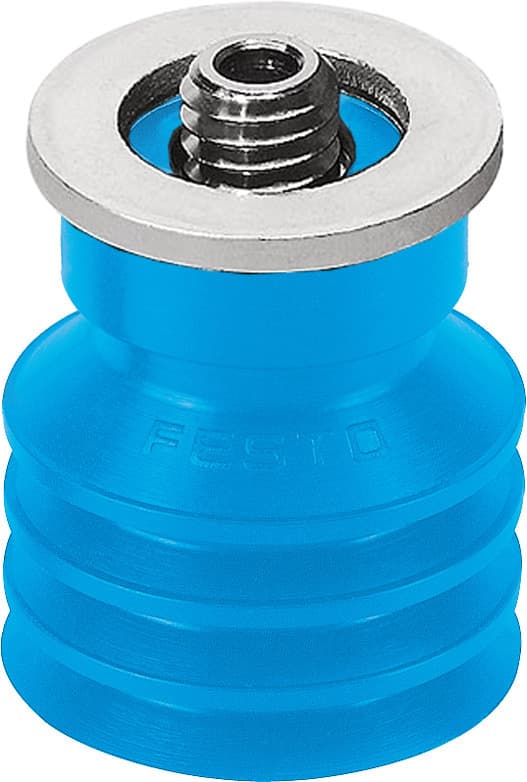

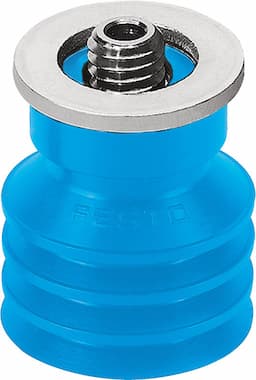

ess-30-bu
Selling Points
- 1Weighs only 9.9 grams, making it lightweight and easy to handle.
- 2Can be mounted via vacuum port, offering flexibility in installation.
- 3Provides a nominal holding force of 26.2 N at operating pressure.
- 4Compliant with RoHS and LABS standards, ensuring durability in harsh environments.
- 5Suitable for use with food, meeting ISO 8573-1:2010 standards for atmospheric air.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Suction cup height compensation | 8mm | Min. workpiece radius | 80mm |
Nominal width | 3mm | Suction cup diameter | 30mm |
Suction cup volume | 4.07cm3 | Connection position | Top |
Mounting position | Any | Symbol | 00991485 |
Classification of suction cup holder | Size 4 | Suction cup shape | Round bellows, 1.5 convolutions |
Operating pressure | -13.775psi 0psi | Nominal operating pressure | -10.15psi |
Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364 zone III | For use in the food industry | See supplementary material information |
Ambient temperature | -20°C 60°C | Holding force at nominal operating pressure | 26.2N |
Lateral force at nominal operating pressure | 21.5N | Product weight | 9.9g |
Type of mounting | Via vacuum connection | Vacuum connection | M6 |
Color | Blue | Shore hardness | 60 +/- 5 |
Material of screwed plug | Brass, nickel-plated Steel, galvanized and chrome-plated | Note on materials | RoHS-compliant |
Suction cup material | PUR | Manufacturer ID | 189383 |
Specifications may be subject to change without notice
