Product Model

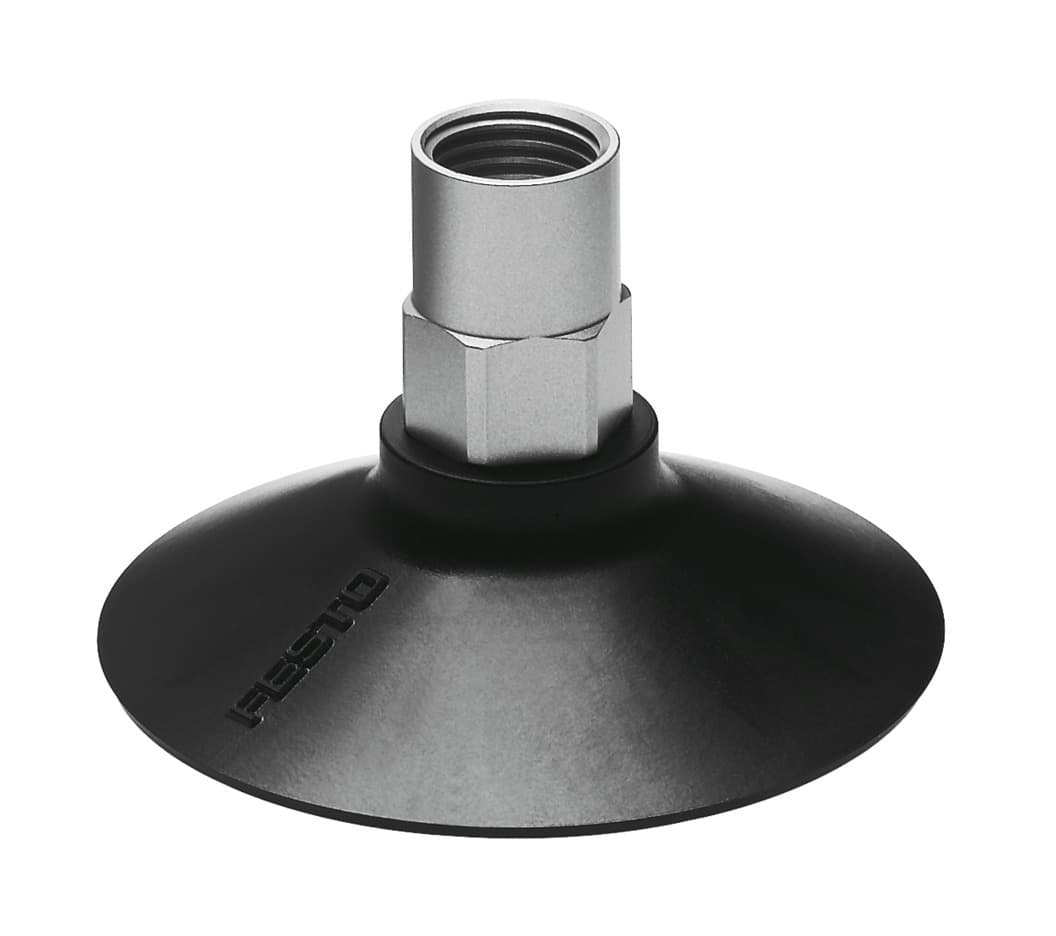

ess-60-gt-g1/4-i
Selling Points
- 1The Festo ESS-60-GT-G1/4-I suction cup offers a robust holding force of 134N, ensuring reliable grip in various applications.
- 2This suction cup is easily interchangeable and features a height compensator for suction-cup holders, making it adaptable to different workpiece sizes and setups.
- 3Constructed from polyurethane suction cups and wrought aluminum alloy screwed trunnions, this product is built to withstand moderate corrosion stress and operate within a wide temperature range.
- 4The ESS-60-GT-G1/4-I comes with a support plate for mounting, simplifying the installation process and ensuring a secure fit.
- 5Compatible with atmospheric air and operating pressures between -0.95 and 0 bar, this suction cup is suitable for a variety of industrial applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Suction cup holder height compensator | 6mm | Min. workpiece radius | 75mm |
Nominal width | 2.5mm | Suction cup diameter | 60mm |
Suction cup volume | 11.3cm3 | Mounting position | Any |
Symbol | 00991485 | Suction cup shape | Round, deep |
Operating pressure | -0.95bar 0bar | Nominal operating pressure | -0.7bar |
Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-A1-L | Ambient temperature | -10°C 80°C |
Holding force at nominal operating pressure | 134N | Lateral force at nominal operating pressure | 37N |
Product weight | 19.5g | Type of mounting | Via vacuum connection |
Vacuum connection | G1/4 | Color | Reddish brown |
Shore hardness | 72 +/- 5 | Material of screwed plug | Wrought aluminum alloy |
Note on materials | RoHS-compliant | Suction cup material | Vulkollan? |
Manufacturer ID | 525981 |
Specifications may be subject to change without notice
