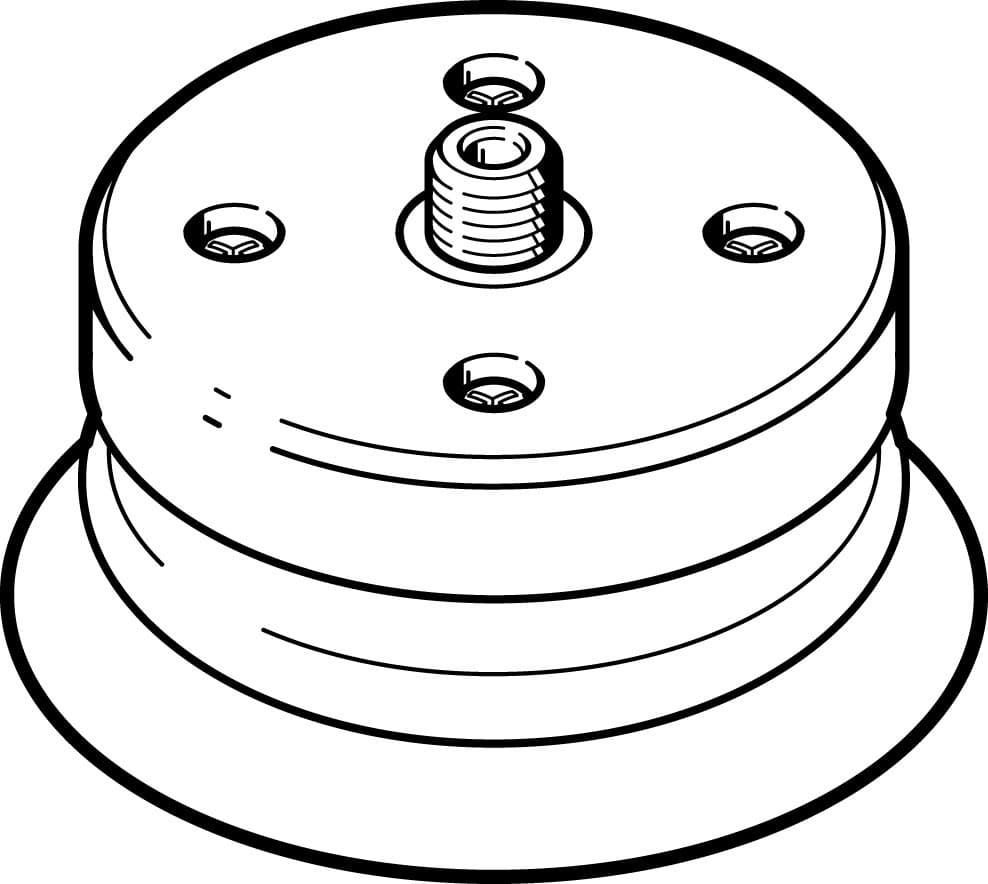

Product Model
ess-80-bn
Selling Points
- 1Designed with a 10mm height compensator for precise workpiece handling.
- 2Offers a holding force of 213.6N at nominal operating pressure.
- 3Compatible with top or optional mounting positions via M10 vacuum connection.
- 4Meets VDMA24364-A1-L standards for low corrosion stress and food safety.
- 5Made from NBR material with a round bellows shape and 1.5 convolutions for durability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Suction cup height compensation | 10mm | Min. workpiece radius | 430mm |
Nominal width | 6mm | Suction cup diameter | 80mm |
Suction cup volume | 63.9cm3 | Connection position | Top |
Mounting position | Any | Symbol | 00991485 |
Classification of suction cup holder | Size 5 | Suction cup shape | Round bellows, 1.5 convolutions |
Operating pressure | -13.775psi 0psi | Nominal operating pressure | -10.15psi |
Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-A1-L | For use in the food industry | See supplementary material information |
Ambient temperature | -10°C 70°C | Holding force at nominal operating pressure | 213.6N |
Lateral force at nominal operating pressure | 199.5N | Product weight | 139g |
Type of mounting | Via vacuum connection | Vacuum connection | M10 |
Color | Black | Shore hardness | 50 +/- 5 |
Material of screwed plug | POM Steel, nickel-plated Steel, galvanized and chrome-plated | Note on materials | RoHS-compliant |
Suction cup material | NBR | Manufacturer ID | 189394 |
Specifications may be subject to change without notice
